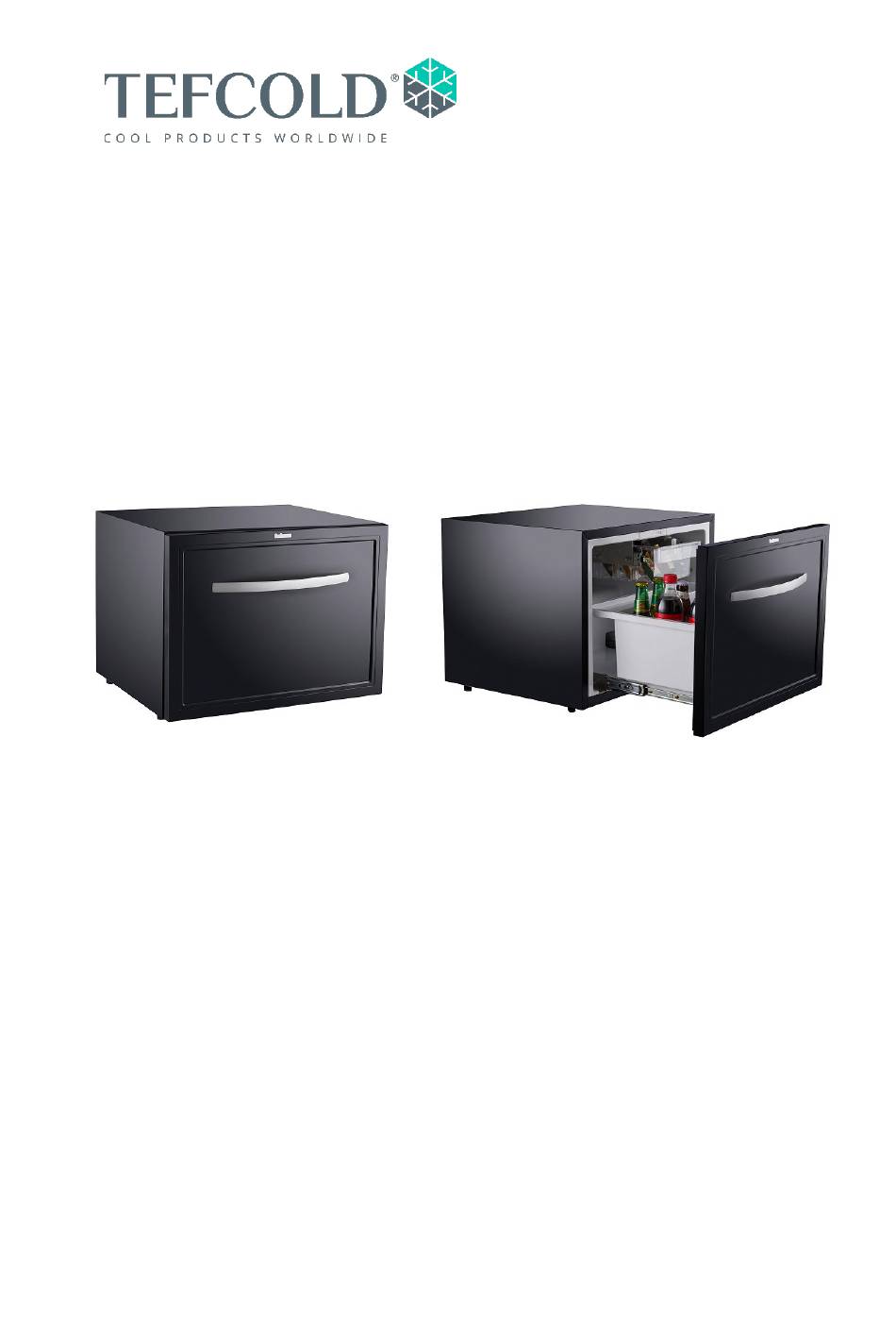

- Page 1 Instruction Manual Please read this instruction manual carefully before operating the unit. Drawer Minibars Model: TD50-Series...
- Page 2 Introduction Thank you for choosing our drawer minibar. This minibar is designed to improve the comfort of your life and entertainment. This compressor cooling system minibar is super quiet operation and high efficiency of small refrigeration appliance, originally designed and developed for guest rooms in star hotels, now widely used in many other applications, such as cruise ships, touring trailers, apartments, dormitories and offices.
-
Page 3: Table Of Contents
Content 1. Safety guidelines 1.1 Safety Tips 1.2 Introduction to Safe Use 2. Accessories 3. Minibar details 3.1 Minibar Schematic diagram 3.2 Cooling System 4. Installation and Use Instructions 4.1 installation 4.2 Ventilation Requirements 4. 3 Power Connection 4.4 Storage items and drawer dimensions 4.5 Temperature Setting Description 4.6 Energy Saving Tips 4.7 Interior Lighting... -
Page 4: Safety Guidelines
1 Safety guidelines 1.1 Safety tips ●Please read this manual carefully before using this minibar and operate according to relevant instructions. ● Please confirm voltage and frequency with the rated voltage and frequency of the minibar before use, do not connect the circuit which does not match. -
Page 5: Accessories
Warning: Do not use mechanical equipment or other means to speed up the defrosting process except as recommended by the manufacturer. Warning: Do not damage refrigeration loop. Warning: Do not use electrical appliances inside this minibar except for those recommended by the manufacturer. Warning: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions. - Page 6 3 Product Introduction 3.1 Minibar drawing 1：Door frame 2：Door panel 3：Pull handle 4：Condenser 5：Dry filter 6：Water box 7：Compressor 8：Main control power board box Enlarged view of slide Enlarged view of light box Front view of minibar 1：Cabinet 2：Evaporator 3：Light box 4：Small drawer 5：Light 6：Damping slide rail Big drawer diagram Small drawer diagram...
-
Page 7: Cooling System
3.2 Cooling System Drawer minibars use super quiet and efficient compressor refrigeration system, with ultra-low noise in running, fast cooling, and ultra-low energy consumption. ② ! warning If you suspect that the cooling system is faulty, stop using the minibar and cut off the power supply. ②... - Page 8 Fix minibar in the furniture Method 1 1) Operation: after the minibar is put straight, fix its bottom plates to furniture’s bottom with white zinc self-tapping screws 4*12; 2) Note: the two positions are for the front and rear mounting brackets. When opening the air trough on the furniture’s bottom, they should not be occupied, otherwise the minibar cannot be fixed normally.
-
Page 9: Power Connection
4.1.3 Installation of handle (as shown above) Position of the handle is 2/3 of the total height of the door. Does not exceed the top of the minibar and is mounted on the vertical center line of the minibar (see picture above). 4.3 Power Connection Please insert the power plug into the proper socket with ground pin. -
Page 10: Energy Saving Tips
4.5 Temperature setting and operation instructions: ● Keys B and C for adjustment on temperature, the screen displays thermostat level. ●Level 2: The unit is set to a medium temperature level 7-9 ℃ (±1℃). ●Level 1: The unit is set to a high temperature level 11-13℃ (±1℃). ●... - Page 11 4.8.1 Installing or replacing decorative Door Panels for TD50A: 1) : Remove the door seal. 2) : Remove the handle hole plug. 3) : Loosen bolts fixing pull handle and remove the handle. 4) : Loosen the self-tapping screws fixing door frame and remove the door frame. 5) : Replace the new decorative door panel.
-
Page 12: Daily Cleaning And Maintenance
Door panel Door liner Drawer Drawing for door panel installation 8 holes on door liner for fixing 4*30 self-tapping screws Door panel Door panel 15-20 Door panel thickness Door liner Door liner Drawer Drawer 3 holes on door for fixing 4*35 self-tapping screws attached picture 1 attached picture 2... -
Page 13: Troubleshoots
√ It is recommended to do regular safety inspection of the circuits by qualified personnel. 6 Troubleshoots Troubleshoots Possible cause Solutions The unit does not No power supply Please check the socket. work, light is not on Failure of the main control Please check whether there is output from the "OUT"... - Page 14 The distance between the Check the buffer and the rail, and adjust the distance rail and the buffer is too between the protrusion of the rail and the buffer to 2~3mm, small. as shown in Figure 31 in 3.1 Minibar Schematic diagram 7LIMITED WARRANTY As a condition to any warranty service obligation, the consumer must present this Warranty Certificate along with a copy of the original purchase invoice/receipt.
-
Page 15: Disposal
8 Technical Specification Model DC-50 Category Drawer minibar Climate class Anti-shock protection type Rated voltage 220V~ Rated power 40 W Rated current 0.2 A Rated frequency 50 Hz Energy class Cooling The maximum cooling temperature is 32 lower than the ambient. Refrigerant R600a(20g) Foaming... - Page 16 Suggestion on the ventilation Installation instruction Furniture Furniture Furniture 15mm 15mm 15mm Ventilation method Wall Wall Wall Cold air inlet Front bottom Front bottom Front bottom Hole size 380x40mm(WxDmm) 380x40mm(WxDmm) 380x40mm(WxDmm) ≥150cm² ≥150cm² ≥150cm² Ventilation cross section Front top of furniture, Front top of minibar, Rear top of furniture, Hot air outlet...
