Summary of Contents for Tefcold UFFS 45

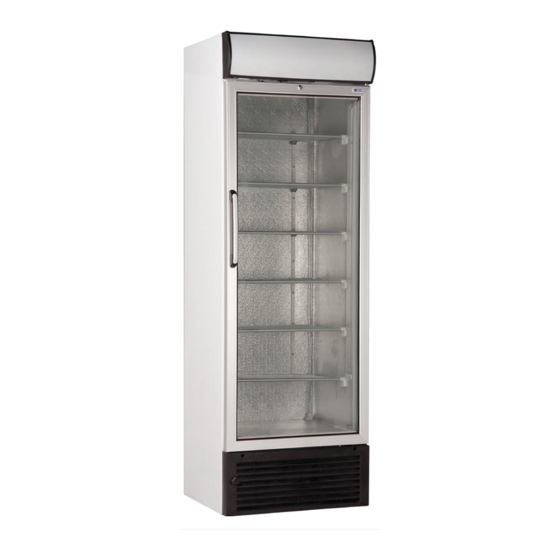

- Page 1 OPERATING MANUAL TEFCOLD COMMERCIAL TYPE VERTICAL FROZEN FOOD STORAGE CABINET...
- Page 3 THIS MANUAL COVERS THE FOLLOWING MODELS UFFS 45 UFFS1450G UFFS370G UFSC1450G UFSC370G UFSC1600GCP UFFS370GCP UFSC370GCP UFFS370SD UFSC370SD...
- Page 5 INFORMATION Dear Customer, manufactured and quality controlled in Tefcold. plants with great care, we kindly request you to read this manual carefully and completely before starting using your product, to keep it for further reference and to use your product according to the terms stated herein.
- Page 6 Always ensure that introduction and installation of your vertical frozen food storage cabinet, which was manufactured in Tefcold. plants with great care, are always carried out by Authorized Tefcold Service Team. Your product will not be under warranty in case of any...
- Page 7 Dear Customer, and SUGGESTION read each of them carefully. WARNING! CAUTION! NOTE SUGGESTION NOTE...
-
Page 8: Table Of Contents
TABLE OF CONTENTS A - Things that must be done before using your product and security warnings. product C - Installation of your product. D - Using your product E - Cleaning, maintenance and transportation of your product F - Things that must be done before calling Authorized Service... - Page 9 A- THINGS THAT MUST BE DONE BEFORE USING YOUR PRODUCT AND SECURITY WARNINGS WARNING! • • • • • • • • • • • • • • • 220- 240 Volta 50 Hz. %10 PICTURE 1 PICTURE 2...
-
Page 10: A - Things That Must Be Done Before Using Your Product And Security Warnings
A- THINGS THAT MUST BE DONE BEFORE USING YOUR PRODUCT AND SECURITY WARNINGS WARNING! • • • • • • • • ge on the products that are used for purposes other than these. • ces. • • • • •... - Page 11 A- THINGS THAT MUST BE DONE BEFORE USING YOUR PRODUCT AND SECURITY WARNINGS NOTE another purpose. product.
- Page 12 • Lamp replacement for the lightings must only be made by Authorized Service. • If power cable is damaged, its replacement must only be made by Authorized Tefcold Service. • Please call Authorized Tefcold Service if you have any doubt about the electrical connection while your product is running.
- Page 13 Following 5 clauses cover the products containing R600a and R290 Hydrocarbon gas. • Installation of this device must be only made by Authorized Tefcold Service for reducing • Do not obstruct the ventilation holes on the device cover or body.
- Page 14 B- GENERAL APPEARANCE OF YOUR PRODUCT Canopy Control Panel Shelves Shelf Height Adjustment Line Lighting Glass Door Door Handle Lower grill...
-
Page 15: C- Installation Of Your Product
In installations performed by Authorized Tefcold Service, Authorized Tefcold Service shall inform the consumer on the suitable made. This above mentioned process shall also be stated on the relevant installation form by Authorized Tefcold Service. In responsibility related to such loss shall belong to the consumer. - Page 16 C- INSTALLATION OF YOUR PRODUCT Possible placement positions: 1- In a way that the back side alone is opposite to the wall; be careful that there is a gap of 150 mm (15 cm) be- tween the wall and your device. (Picture 6) 2- In a way that is place to a corner;...
- Page 17 Insert the replacement parts inside your product according to the installation instructions. Only use genu- ine Tefcold spare parts. Inauthentic spare parts may constitute danger for you and damage your product.
- Page 18 C- INSTALLATION OF YOUR PRODUCT The product will start when you insert the plug into the outlet as shown in picture 8. WARNING! It is forbidden to insert the plug into multiple socket and to use extension cord. (Picture 9) Do not contact the cables of your product, which are connected to the mains, to hot surfaces.
-
Page 19: D- Using Your Product
D- USING YOUR PRODUCT Start-up WARNING! • • • • • • • PICTURE 11 PICTURE 12 PICTURE 13... - Page 20 D- USING YOUR PRODUCT Temperature setting of your product has made at the factory in a manner that it is operated under the most appropriate conditions. Be careful for always placing frozen product inside your product Preservation temperature of the products can be observed from the digital indicator or thermostat under its canopy and adjusted by means of an electronic thermostat.
- Page 21 D- USING YOUR PRODUCT below. Manuel defrost. Mutes alarm. For Carel Thermostat; taneously. Ensures manuel defrost of the product. Temperature...
- Page 22 D- USING YOUR PRODUCT Ensures manuel defrost of the product. seconds. For Elstat Thermostat; seconds. Ensures manuel defrost of the product.
- Page 23 Leave a gap of at least two (2) cm between the top and the product you load for ensuring air circulation. Do not load your product with food over the loading line. MODEL MAX. SHELF CARRY- MODEL MAX. SHELF CARRY- ING CAPACITY ING CAPACITY UFFS 45 16 kg. UFFS1450G 25 kg. UFFS370G 16 kg. UFSC1450G 25 kg.
- Page 24 D- USING YOUR PRODUCT Your product has manual defrost.
- Page 25 D- USING YOUR PRODUCT Unplug your product. (Picture 14) If your product will not be used for a long time, apply following considerations; Clean your product. Otherwise the humidity on the wall may cause darkening of the internal surface. PICTURE 14 CAUTION! •...
-
Page 26: E- Cleaning, Maintenance And Transportation Of Your Product
Remove the accessories from inside. Perform cleaning with a soft cotton cloth and warm soapy water or by using the cleaning agents recom- mended by Tefcold. Dry with a dry cotton cloth. Products, which are not dried, may darken in time. - Page 27 E- CLEANING, MAINTENANCE AND TRANSPORTATION OF YOUR PRODUCT Unplug your product from the grounded outlet. Carry out defrost operation. Carry your product at normal using position. Do not carry horizontally, vertically, tilted or with the door open. Protect your product from the impacts while carrying. Do not carry your product when it is plugged in or full. In order not to cause any accident or for preventing the product to get damaged by falling or sliding, secure your product to the vehicle during the transportation.
-
Page 28: F- Things That Must Be Done Before Calling Authorized Service
Insert the plug properly. Condenser lamella may be ob- Consult to an Authorized Tefcold structed or get dirty. Ser vice or a competent electrician. Clean the condenser lamellas. Device internal temperature is high. - Page 29 F- THINGS THAT MUST BE DONE BEFORE CALLING AUTHORIZED SERVICE MESSAGE REASON PROCEEDINGS TO BE FOLLOWED Room sensor failure Check the sensor connection P2 sen Evaporator sensor failure Check the sensor connection before replacing the sensor. HA pa- Maximum temperature alarm Check compressor operation and relevant parameter values.
- Page 30 F- THINGS THAT MUST BE DONE BEFORE CALLING AUTHORIZED SERVICE MESSAGE REASON PROCEEDINGS TO BE FOLLOWED Door is open Check the product's door. Cooling system failure Check compressor operation and relevant parameter values. Sensor failure Check the sensor Cabinet and condenser Check parameter values.
