2.

2.1. Hardware Preparation

• ESP32-S2-MINI-1 and ESP32-S2-MINI-1U modules
Espressif RF testing board
•
One USB-TTL serial module
•
PC, Windows 7 recommended
•
• Micro-USB cable

2.2. Hardware Connection

1. Connect ESP32-S2-MINI-1, ESP32-S2-MINI-1U and the RF testing board, as Figure
2-1 shows.
2. Connect USB -UART serial module to the RF testing board via TXD, RXD and GND.
3. Connect USB-UART module to the PC.
4. Connect the RF testing board to the PC or a power adaptor to enable 5 V power
supply, via the Micro-USB cable.
5. During download, short IO0 to GND via a jumper. Then, turn "ON" the board.
6. Download firmware into flash using the download tool ESP32-S2 DOWNLOAD TOOL.
7. After download, remove the jumper on IO0 and GND.
Espressif Systems
Hardware Preparation

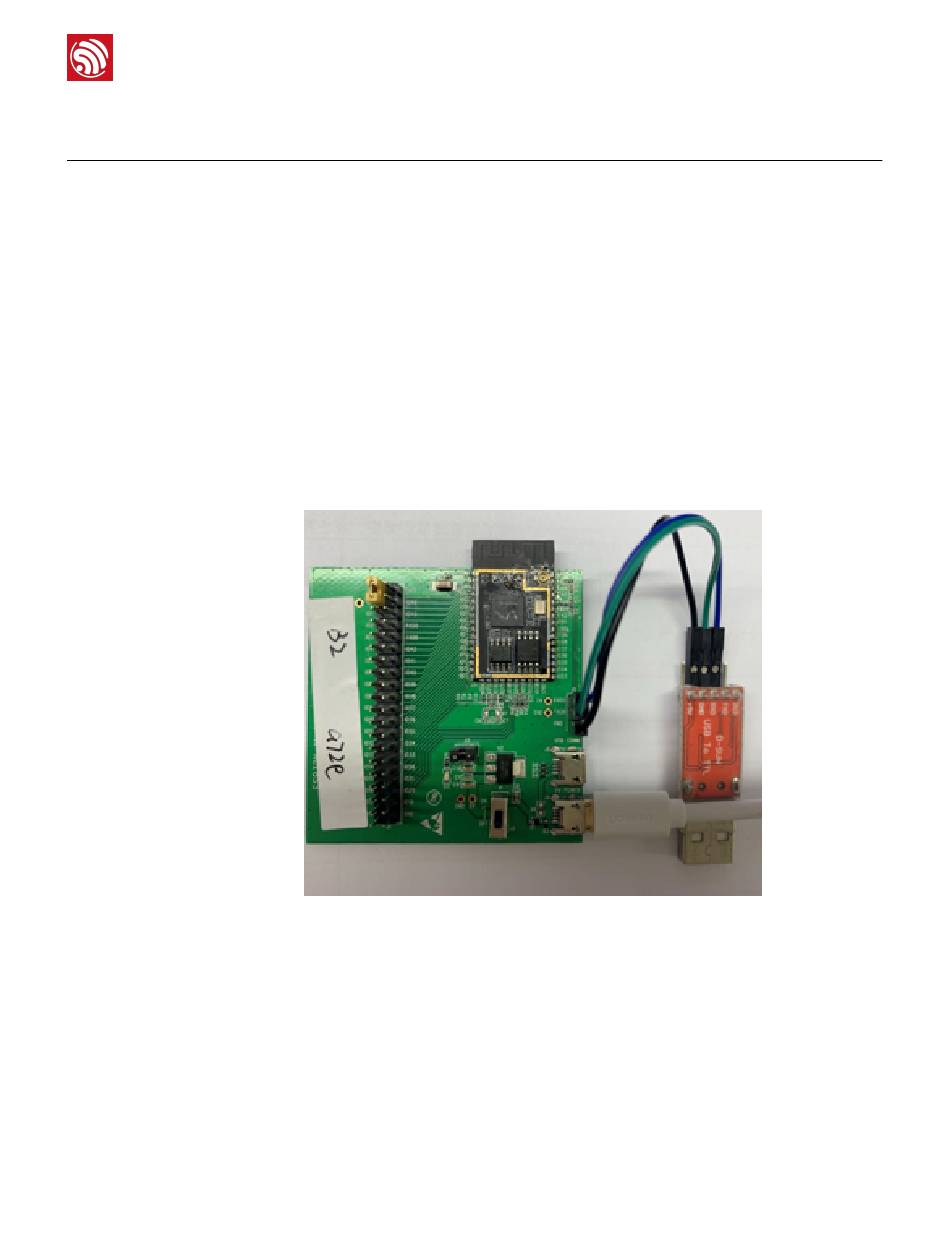

Figure 2-1. Testing Environment Setup
