Scientific Industries MULTI VORTEX-GENIE SI-M236 Operating Instructions

CAUTION! Do not lift your MULTI VORTEX-GENIE
CAUTION! Failure to follow operating instructions can compromise the user's safety.
CAUTION! Unplug from power before cleaning. Do not immerse
Care and Handling
Your MULTI VORTEX-GENIE Shaker should be given the care normally required for any
electrical appliance. Avoid wetting or unnecessary exposure to fumes. The finish can be
washed with water (after unplugging) and soap or detergents, using a cloth or sponge. Keep
the unit clean by immediately blotting any spills. Replacement parts are available through your
laboratory equipment distributor or directly from Scientific Industries. Refer to "Parts Assembly
List".

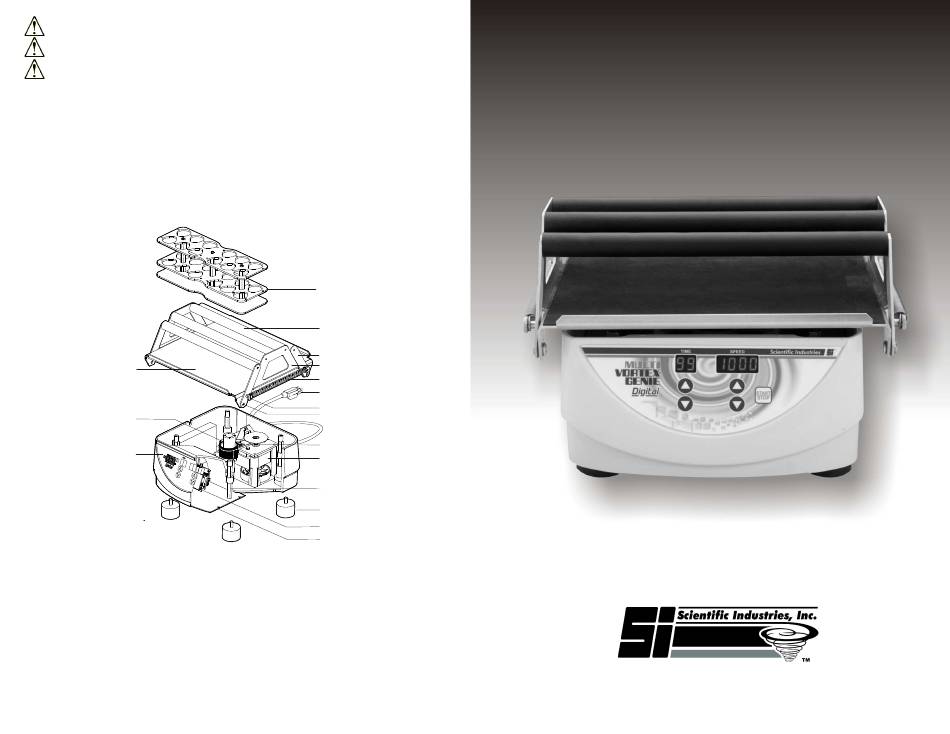

Parts Assembly List
To order parts for the MULTI VORTEX-GENIE Shaker:
Contact your local distributor or visit www.scientificindustries.com. Please specify Part No., quantity and
electric voltage.
19
18
17
Indicator No. Part No. Description
1 SI-M010 (1) 12-Pack Multi-Tube Rack
2 SI-M020 (2) 12-Pack Multi-Tube Racks
3 0M-M236-205 Rod
4 0M-M236-206 Foam
5 0M-M236-201 Arm
6 0M-M236-200 Platform
7 SPP0005 Spring, Extension
8A 318-0510-02 120V Line Cord
8B 0K-0246-901 230V Line Cord, No Plug
8C 0K-0256-901 230V Line Cord, Euro Plug
8D 0K-0266-901 230V Line Cord, British Plug
8E 0K-0276-901 230V Line Cord, Swiss Plug
8F 0K-0286-901 100V Line Cord
8G ECP0021 Australian Plug (only)
®
Vortex-Genie is a registered trademark of Scientific Industries Inc.
© Scientific Industries Inc. 2022
®
Shaker by the clamping platform.
1,2
3,4
5
6
7
8 (A-G)
9
10
11
12 (A-C)
13
14
15
16
Indicator No. Part No. Description
9 NTP0010 Thumb Nut
10 SCP0060 Pivot Bolt
11 HWP0064 Timing Belt
12A 0A-M236-021 Motor 120V Assembly
12B 0A-M246-021 Motor 230V Assembly
12C 0A-M286-021 Motor 100V Assembly
13 0A-M236-002 Shock Mount Assembly
14 0K-M236-907 Feet (4)
15 EBP0002 Digital Timer Board
16 0M-M236-204 Base Plate
17 EL-M236-575 Control Panel
18 0K-M236-001 Bearing Assembly
19 0M-M236-207 Rubber Pad
LTP0064 Rev. C

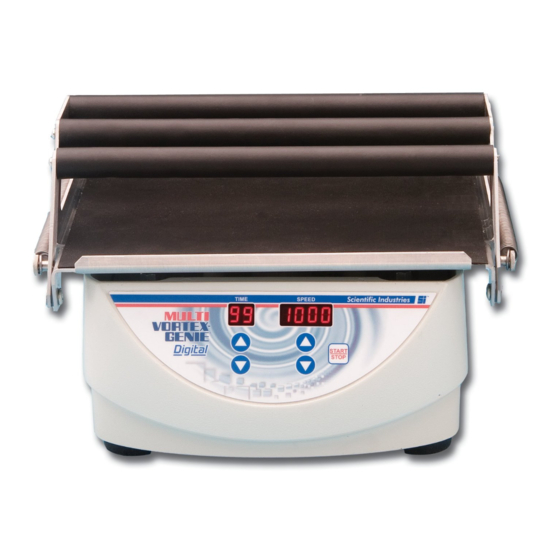

MULTI VORTEX-GENIE
LARGE CAPACITY SHAKER
OPERATING INSTRUCTIONS
Models SI-M236 through SI-M296
80 Orville Drive, Suite 102, Bohemia, NY 11716 U.S.A.
Phone: (631) 567-4700 • Toll Free: 888-850-6208
Customer Service: custsvc@scientificindustries.com
www.scientificindustries.com
®
