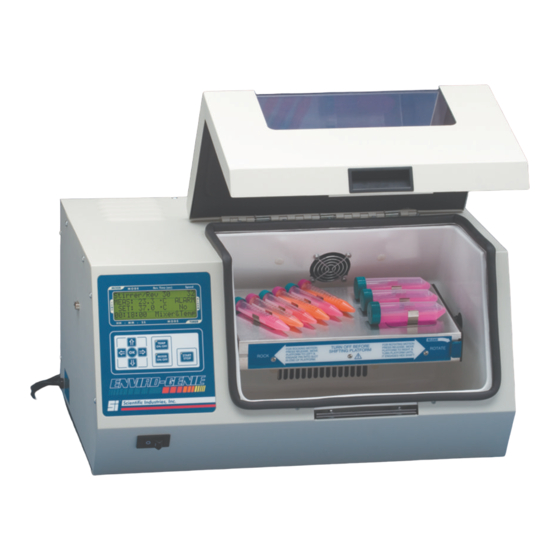

Summary of Contents for Scientific Industries Enviro-Genie
- Page 1 Instruction Manual: Enviro-Genie - PC Connection and Calibration...
-
Page 2: Table Of Contents
Enviro-Genie - PC Connection and Calibration – Instruction Manual Table of Contents Chapter 1: PC Connection ............................... 1 1.1 RS232 ..................................... 1 1.2 USB ....................................3 1.3 Wireless ..................................6 Chapter 2: Temperature Calibration ............................. 10 2.1 One Point Calibration ..............................13 2.2 Two Point Calibration .............................. -
Page 3: Chapter 1: Pc Connection
Enviro-Genie - PC Connection and Calibration – Instruction Manual Chapter 1: PC Connection 1.1. RS232 Chapter 14: Wireless PC Connection (FC Models Only) 1. Connect the Enviro-Genie incubator with a laptop or a desktop PC via a 9 pin RS232 cable compatible with the Enviro-Genie incubator. - Page 4 5. To access Windows Device Manage, right-click on the Windows icon located in the lower left corner of the PC desktop, and select Device Manager. 6. In the Device Manager list, click on Ports (COM & LPT) to obtain the COM port used for the Enviro-Genie connection.
-
Page 5: Usb
Enviro-Genie - PC Connection and Calibration – Instruction Manual 1.2. 1. Connect a compatible 9 pin RS232 cable to the RS232 port located on the left side of the Enviro-Genie incubator. 2. Attach an RS232-to-USB convertor to the RS232 cable connected to the Enviro-Genie 3. - Page 6 Enviro-Genie - PC Connection and Calibration – Instruction Manual 4. Open the EnviroApp, and click Settings from the Home screen. 5. From the Port Name list select the COM port number used for the USB connection, or click Auto Detect to...
- Page 7 Device Manager. 8. In the Device Manager list, click on Ports (COM & LPT) to obtain the COM port used for the Enviro-Genie connection. The COM port assigned to the USB convertor will be labeled Prolific USB-to-Serial Comm Port.
-
Page 8: Wireless
Enviro-Genie - PC Connection and Calibration – Instruction Manual 1.3. Wireless 1. Attach the wireless adapter to the RS232 port on the Enviro-Genie incubator. Fasten the adapter port screws to secure it firmly in place, and connect the antenna. 2. Plug in the power supply cable to adapter socket marked “5VDC”, and... - Page 9 5. Device window with available devices will appear on the PC screen. Locate device “Enviro”, click once to select it, and click on Pair to proceed. 6. Key in the paring code: 867225. Click next to pair the Enviro-Genie incubator with your computer.
- Page 10 Enviro-Genie - PC Connection and Calibration – Instruction Manual 7. Click on the Bluetooth icon located in your task bar and select “open settings”. 8. For convenience check off option “show the Bluetooth icon in the notification area” in the Options tab. Click on the tab “COM ports”, the serial COM ports used by your computer for Bluetooth connections will be displayed.
- Page 11 Enviro-Genie - PC Connection and Calibration – Instruction Manual 9. Once the COM port number assigned to the Enviro-Genie Bluetooth has been verified, open the EnviroApp, and click Settings from the Home screen. 10. From the Port Name list select the COM port number used for the Bluetooth connection.
-
Page 12: Chapter 2: Temperature Calibration
Enviro-Genie - PC Connection and Calibration – Instruction Manual Chapter 2: Temperature Calibration Calibration is a sensitive process and should be performed only with a trusted high Chapter 14: Wireless PC Connection accuracy reference device. Before calibration, verify the accuracy of your (FC Models Only) temperature sensor or tachometer. - Page 13 Enviro-Genie - PC Connection and Calibration – Instruction Manual 5. If calibration is required, open the EnviroApp and click Settings from the Home screen. 6. Select the Calibration tab and click on New Calibration.
- Page 14 Enviro-Genie - PC Connection and Calibration – Instruction Manual 7. Wait for the Enviro-Genie incubator to start. Select the Calibration type, enter the name of the user performing the calibration, and click Next to continue.
-
Page 15: One Point Calibration
Enviro-Genie - PC Connection and Calibration – Instruction Manual 2.1. One Point Calibration 1. Enter a preferred Temperature Setpoint and click SET. “Please Wait” will flash in red while the Enviro-Genie reaches the set temperature. 2. Wait until the Enviro-Genie temperature reaches the Setpoint and stabilizes. -
Page 16: Two Point Calibration
Enviro-Genie - PC Connection and Calibration – Instruction Manual 2.1. Two Point Calibration 1. Enter Low Temperature Setpoint One and click SET. “Please Wait” will flash in red while the Enviro-Genie reaches the set temperature. 2. Wait until the Enviro-Genie temperature reaches the Low Temperature Setpoint One and stabilizes. -
Page 17: Chapter 3: Rotation Calibration
Enviro-Genie - PC Connection and Calibration – Instruction Manual Chapter 3: Rotation Calibration Calibration is a sensitive process and should be performed only with a trusted high Chapter 14: Wireless PC Connection accuracy reference device. Before calibration, verify the accuracy of your (FC Models Only) temperature sensor or tachometer. - Page 18 Enviro-Genie - PC Connection and Calibration – Instruction Manual 3. If calibration is required, open the EnviroApp and click Settings from the Home screen. 4. Select the Calibration tab and click on New Calibration.
- Page 19 Enviro-Genie - PC Connection and Calibration – Instruction Manual 5. Wait for the Enviro-Genie incubator to start. Select the Calibration type, enter the name of the user performing the calibration, and click Next to continue.
-
Page 20: One Point Calibration
Enviro-Genie - PC Connection and Calibration – Instruction Manual 3.1. One Point Calibration Enter a desired Enviro-Genie Speed Setpoint and click SET. (Low: 1 to 17 | High: 18 to 35). Verify the Enviro-Genie rotation speed with an accurate reference device. -
Page 21: Two Point Calibration
Verify the Enviro-Genie rotation speed 1RPM with an accurate reference device. Adjust the speed as needed by clicking UP or DOWN, until the set speed of the Enviro-Genie is the same as indicated by the reference device. Click SET to start Enviro-Genie Speed Setpoint Two adjustment. -
Page 22: Three Point Calibration
Verify the Enviro-Genie low rotation speed 1RPM with an accurate reference device. Adjust the speed as needed by clicking UP or DOWN, until the set speed of the Enviro-Genie is the same as indicated by the reference device. Click SET to start Enviro-Genie Speed Setpoint Two adjustment. -
Page 23: Chapter 4: Troubleshooting
Enviro-Genie - PC Connection and Calibration – Instruction Manual Chapter 4: Troubleshooting Problem Solution • Chapter 14: Wireless PC Connection Windows will not allow the EnviroApp to install. Make sure that you have administrative (FC Models Only) privileges on your PC. Contact IT support or PC administrator. - Page 24 Scientific Industries, Inc. 80 Orville Dr. Suite 102 Bohemia, NY 11716 Tel. (631)567-4700 Fax. (631)567-5896 scientificindustries.com...
