- Page 1 User Manual English 1250 Coin Counter & Sorter...

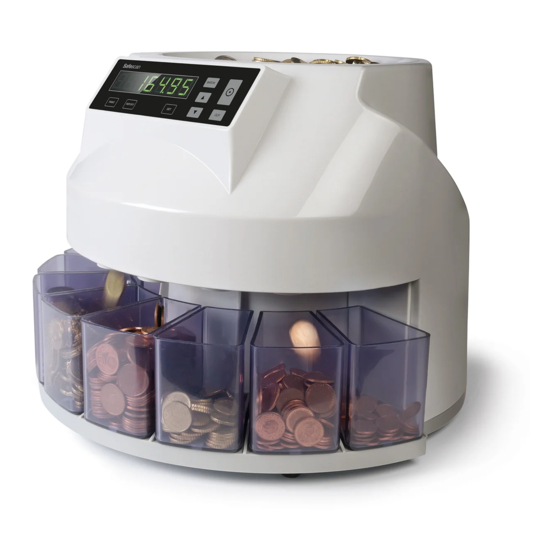

- Page 2 Thank you for purchasing the Safescan 1250 Coin Counter and Sorter, a product of outstanding ease-of-use and quality. The Safescan 1250 quickly counts coins and sorts them each in its dedicated separate cup, which ensures efficient cash handling. Package contents...
- Page 3 FULL 40 €2.00 €1.00 €0.50 €0.20 €0.10 €0.05 €0.02 €0.01 1. Hopper 2. Display / Function buttons 3. Coin cups 4. Power switch 5. Printer port 6. Coin tubes (with EURO model only) More info, articles, tutorials and videos support.safescan.com...
- Page 4 Connect the power cord of the coin counter into the mains outlet (AC 220~240V). FULL 40 €2.00 €1.00 €0.50 €0.20 €0.10 €0.05 €0. Press the power switch at the rear to power ON the counter. More info, articles, tutorials and videos support.safescan.com...
- Page 5 Press the key to start counting. For Euro coins, the coin tubes can also be used instead of the coin cups. Coin tubes FULL 40 €2.00 €1.00 €0.50 €0.20 €0.10 €0.05 €0.02 €0.01 More info, articles, tutorials and videos support.safescan.com...
- Page 6 5. Set batch quantity per 20 or 50 coins 6. Set batch quantity per 1 coin - UP 7. Set batch quantity per 1 coin - DOWN 8. Clear count result / Back 9. Start counting More info, articles, tutorials and videos support.safescan.com...
- Page 7 To view the amount of coins per denomination, press the key. The number of coins is displayed, starting with the coin denomination with the largest diameter. To view the amount of coins per denomination, press the key. More info, articles, tutorials and videos support.safescan.com...
- Page 8 The batch function enables you to create equal batches of coins. The counter will stop when the selected batch quantity has been reached. There are 2 options: Default batch amounts. The Safescan 1250 comes standard with default set batch amounts per denomination. Press to toggle through the batch settings of each denomination, starting with the coin with the largest diameter.
-
Page 9: Maintenance
If the internal sensors of the device become dirty it will lead to miscounting and/or device malfunctioning. For detailed maintenance instructions please visit the Safescan website: www.safescan.com. IMPORTANT: make sure there are no foreign currency coins inserted and that there are no other objects such as paperclips, staples etc. - Page 10 A. Safescan TP-230 Printer B. Safescan 1250 Coin counter 9-pins serial RS-232 cable M/F After counting has finished, press [PRINT] on the coin counter to print a detailed counting report, split per denomination. More info, articles, tutorials and videos support.safescan.com...
- Page 11 English 9. Use with the optional Safescan TP-230 printer The Safescan 1250 can be connected to the optional Safescan TP-230 thermal printer, which will provide you with a detailed breakdown of the count results. Before you can start using the printer, the baudrate setting of the printer needs to be adjusted from 9600 (default setting of printer) to 1200.
- Page 12 E. Press FEED twice whilst F. Release the SET button keeping SET pressed FEED The printer is now in the Parameter setup mode and it will print the first parameter of the settings menu (baudrate). More info, articles, tutorials and videos support.safescan.com...
- Page 13 Font Union Density Direction Black Mark Sensor Every time you press SET, the printout will show which parameter is selected, plus its current setting. The next step shows how to change the setting. More info, articles, tutorials and videos support.safescan.com...
- Page 14 FEED until “1200” is printed. The baudrate setting sequence is a loop and is as follows: FEED 9600 Baudrate 19200 (default) FEED FEED 38400 4800 FEED FEED 57600 2400 FEED FEED FEED 1200 (required for 115200 coin counter) More info, articles, tutorials and videos support.safescan.com...
- Page 15 When the changes are not saved, the printer will go back to default settings after it has been switched off. For detailed operating instructions please refer to the Safescan TP-230 user manual, included with the printer. More info, articles, tutorials and videos support.safescan.com...
-
Page 16: Technical Specifications
European directives. The Declaration of Conformity (DoC) is available at www.safescan.com Take the device to a recycling centre if you want to dispose of it. Never throw any electronic device away with the household waste. More info, articles, tutorials and videos support.safescan.com... - Page 17 Safescan is a registered trademark of Solid Control Holding B.V. ® No part of this manual may be reproduced in any form, by print, copy or in any other way without prior written permission of Solid Control Holding B.V. Solid Control Holding B.V.
