Menda 35840 Technical Bulletin

Blow Vac
Operation and Maintenance
35840

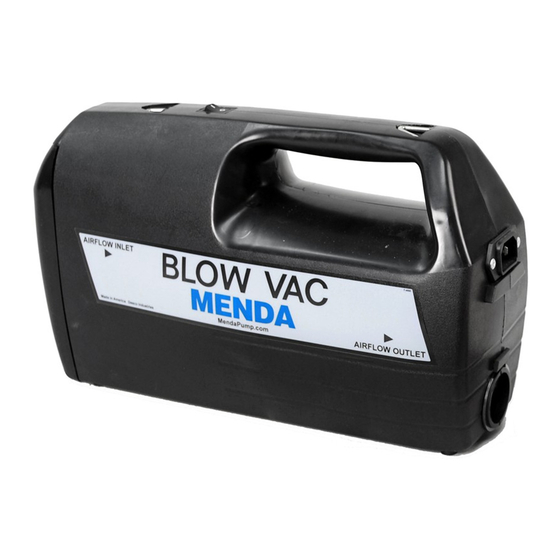

Figure 1. MENDA 35840 and 35841 Blow Vac
Description
The MENDA Blow Vac is a compact, dual function unit
which is totally made up of ESD Safe housing parts
and accessories. It is designed for precise removal
and collection of dry dust particles and debris from
equipment that is sensitive to electrostatic discharge
(ESD). Dissipative thermoplastic rubber stretch
hose with a steel conductive spring wire to remove
electrostatic charges via the dissipative housing and
ground wire plugged into a three-wire AC electrical
outlet.
The Blow Vac can also be converted in seconds into a
powerful blower for dust removal in areas otherwise not
accessible. You simply need to attach the optional two
part blow assembly attachment, MENDA Part Number
35836. The Blow Vac has been specially made with a
dissipative housing and attachments/accessories. All are
groundable per S20.20 <1 x 10
The Blow Vac and its accessories are available as the
following item numbers:
Item Description
35840 Blow Vac, 120 VAC
35841 Blow Vac with Adjustable Airflow, 120 VAC
35843 Blow Vac with Adjustable Airflow, 230 VAC
35834 Replacement Hose
35835 Mini Attachment Set
35836 Two-Part Blow Assembly
35837 Replacement HEPA Filter
35838 Replacement Filter
35839 Replacement Filter Bag, 10 Pack
TB-4013 Page 1 of 3 September 2022
TECHNICAL BULLETIN TB-4013
35841
Static Dissipative.
9
MENDA - 3651 Walnut Avenue, Chino, CA 91710 • (909) 627-2453 • Website:
Packaging
1 Dissipative stretch hose – Extends over 4'
1 Soft Dissipative Rubber Nozzle
1 Hard Dissipative Crevice Nozzle
1 Low Charging Carrying Strap
1 Power Cord, North America (8') (35840 & 35841 only)
1 35838 Filter
1 35839 Filter Bag

Operation

1. Slide one end of the dissipative stretch hose into
suction opening Airflow inlet (vacuum) or Airflow
Outlet (blower).
2. Press the desired nozzle onto the hose end.
3. Install any of the other appropriate attachments
to the other end of the hose. The Two Part Blow
Assembly attachment (35836) is recommended for
use if the Blow Vac will be used to blow debris.
4. Place the rocker switch in off position. For the
adjustable airflow unit further place the knob
electronic control onto the Medium power setting.
5. Plug appliance coupling end of the power cord into
rear power inlet Blow Vac. Plug the 3-pin/blade
power plug into an electrical outlet that is properly
grounded in accordance with all local codes and
ordinances. Start Blow Vac by pressing the power
switch to "ON" position.
Figure 2. Connecting the hose to the airflow outlet
