Menda HEPA Vac Technical Bulletin

HEPA Vac and Service Vac Commercial
Vacuum Operation and Maintenance
®
Figure 1: Menda Vacuums
Description

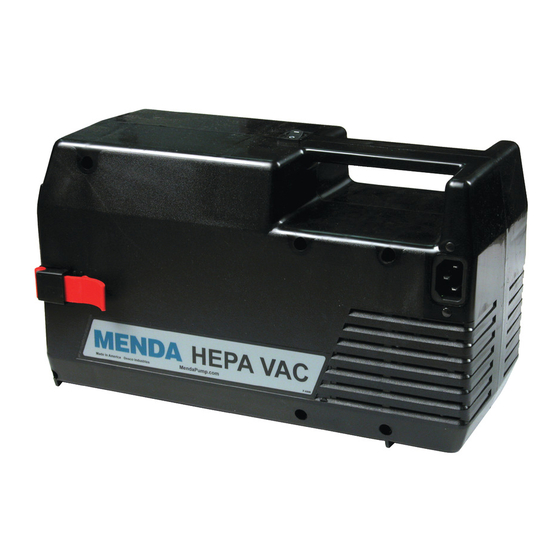

The Menda HEPA Vac and Service Vac are a
compact, high performance, field service vacuum. This
model has been specifically designed with ease of
portability in mind. The powerful 600-watt motor can
handle almost any job. It is for those technicians who
require a small, lightweight vacuum for use in and
around sensitive electronic equipment such as copy,
pick & place, & SMT machines, telecom equipment,
computers and printers. The standard 99.97% efficient
@ .3 micron HEPA filter cartridge is ideal for fumes,
atmospheric dust, lead, glass, pollens, soot, drywall
dust, and all color toner. The filter is fully contained for
safe, easy disposal. An alternative is Menda now also
has an environmentally friendly filter that is less
expensive. Instead of the HEPA filter we offer a
corrugated shell with replaceable bags. This filter is
suitable for most electronic applications. This is the
standard filter that comes with the Service Vac.
The HEPA Vac and Service Vac are safe for ESD
susceptible electronics. The electronic line filter
prevents EMI/RFI noise, and the utensils are static
dissipative. The internal ground-wire in the flex-hose
and enclosure virtually eliminate static charge
generation from utensils.
®
Note: The Menda
designed for commercial use only. Keep the body of the
vacuum 12" (30cm) away from all ESD sensitive items.
Inspection
Remove the HEPA Vac or Service Vac from the shipping
carton and inspect for exterior damage.
TB-4003 March 2009 Page 1 of 2
TECHNICAL BULLETIN TB-4003
HEPA Vac and Service Vac are
3651 Walnut Avenue, Chino, CA 91710
Phone: (909) 627-2453 • Fax (951) 755-8848 • Web Site:
Items included with model
• 1 99.97% @ .3 Micron HEPA Filter Cartridge
• 1 6' Flex-Hose (Toner Proof and Static Dissipative)
• 1 12" Goose Neck Attachment
• 1 Crevice Attachment
• 1 Crevice Attachment Brush
• 1 Detachable Power Cord (110V Only)
Items included with model
• 1 6' Flex-Hose (Toner Proof and Static Dissipative)
• 1 12" Goose Neck Attachment
• 1 Crevice Attachment
• 1 Crevice Attachment Brush
• 1 Detachable Power Cord (110V Only)
• 1 Corrugated Shell and 2 Replaceable Bags

Optional Accessories

• 35855 Replacement 99.97% @ .3 Micron HEPA Filter
Cartridge
• 35847 Filter for Service Vac Pack of 5 bags, & Cardboard
Shell Filter
• 35856 Carrying Case
• 35857/35845 HEPA Vac Kit (includes HEPA Vac,
carrying case, micro tool kit, and spare filter)

Operation

Attach the flex-hose securely to the front of the vacuum.
Figure 2: Attaching flex-hose
Select the proper attachment. Insert the attachment to
the other end of the hose. Insert the female end of the
power cord into the AC receptacle at the rear of the
vacuum. Plug the power cord into an electrical outlet
that is properly grounded in accordance with all local
codes and ordinances. The power switch is located at
the top of the vacuum.

Filter Change-Out Instructions

Unplug the HEPA Vac or Service Vac from the electrical
power. Remove the flex-hose. Sit the vacuum upright,
resting the back of the unit with the inlet door facing you.
MendaPump.com
Made in America
35852/35844
35846
