800 Series – Floodlight Luminaires (Ex n)
ATEX
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
Important:
Please read these instructions carefully before installing or maintaining this equipment.
Good electrical practices should be followed at all times and this data should be used
as a guide only.
3 HOLES ø13 (854,864)
3 HOLES ø12 (844)
I-800N-01.doc
Models 844, 854, and 864
A
C

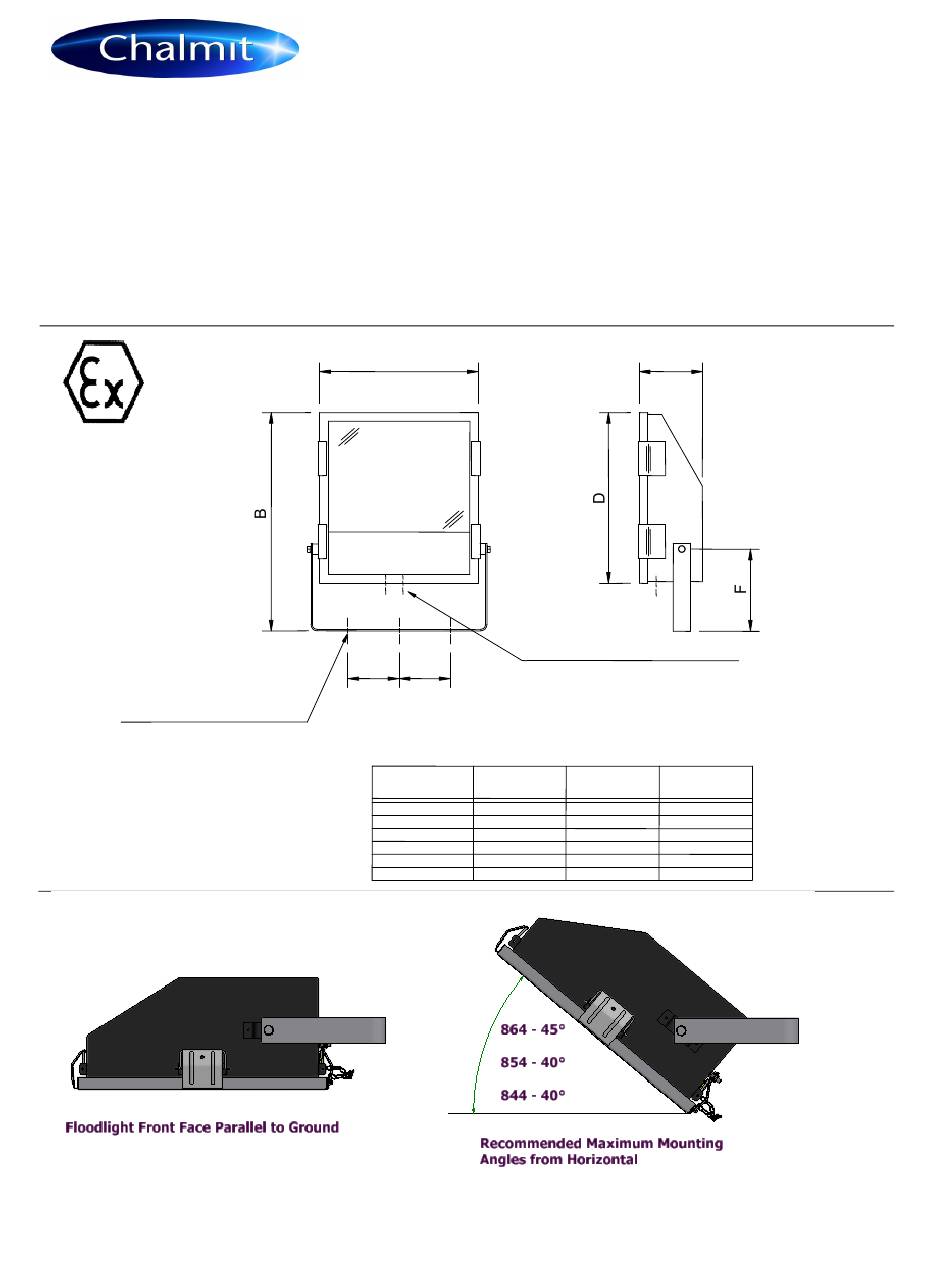

DIMENSIONS
Issue 16
04/02/2021
IOM – 800 SERIES - ZONE 2 FLOODLIGHTS (ATEX, Ex n)
2 OFF M20 CABLE ENTRIES
C
844
70W
150/250/400W
A
308
B
443
C
75
D
348
E
150
F
175
E
854
864
400W
415
415
456
630
615
150
150
490
490
185
220
260
250
1
Advertisement
Table of Contents
Related Manuals for Chalmit 800 Series
Summary of Contents for Chalmit 800 Series
- Page 1 IOM – 800 SERIES - ZONE 2 FLOODLIGHTS (ATEX, Ex n) 800 Series – Floodlight Luminaires (Ex n) ATEX Models 844, 854, and 864 INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS Important: Please read these instructions carefully before installing or maintaining this equipment.
-
Page 2: Specification
IOM – 800 SERIES - ZONE 2 FLOODLIGHTS (ATEX, Ex n) 0.0 Specification Type Of Protection Ex nR (restricted breathing) Protection Standards EN 50021, EN 50281-1-1. Area Classification Zone 2 areas to EN 60079-10-1, Zone 22 areas to EN 60079-10-2. -
Page 3: Electrical Supplies
The above information is current at the time of preparation. The development of lamps and control gear is ongoing and detailed advice on lamp performance can be obtained from the lamp supplier or from Chalmit. Important: HPS and MBI circuits should not be energised without a lamp fitted. -
Page 4: Cable Glands
IOM – 800 SERIES - ZONE 2 FLOODLIGHTS (ATEX, Ex n) 3.6.2 Cable Glands Cable glands and sealing plugs when installed must maintain the restricted breathing enclosure. Entries suitable for M20 cable glands are standard. To maintain the restricted breathing properties of the enclosure a suitable cable gland such as a Hawke 501/453/RAC type should be installed or a cable gland satisfying the following requirements: ... - Page 5 IOM – 800 SERIES - ZONE 2 FLOODLIGHTS (ATEX, Ex n) 3.9.1 Thermal Protector Thermal protectors are included. If the lamp goes on and off over a timescale of several minutes, this could be the thermal protector operating. The causes are defective lamps/diode effects, gross over voltage or the choke beginning to fail and this should be investigated directly.
- Page 6 IOM – 800 SERIES - ZONE 2 FLOODLIGHTS (ATEX, Ex n) Table Model Wattage Lamp T Rating Cable Cable VA Rating Surface Temp Rating (When fitted with C C C Temp Rise Autotransformer) ºC C T3(150C) SON/T 100W SON/T SON/T...
- Page 7 IOM – 800 SERIES - ZONE 2 FLOODLIGHTS (ATEX, Ex n) Table 4 Fuse Ratings Lamp Wattage Number of Lamps 100W 150W 250W 400W Table 5 Weights and Windages Model 844/70 854/100 854/150 854/250 864/250 864/400 Weight 12.0kg 16.5kg 17.0kg 18.0kg...
- Page 8 IOM – 800 SERIES - ZONE 2 FLOODLIGHTS (ATEX, Ex n) EU-Declaration of conformity UE-Déclaration de conformité EU-Konformitätserklärung Manufacturer Chalmit Address 388 Hillington Road, Glasgow. G52 4BL Scotland UK Product 800 Series Floodlight Luminaires. Type Examination Certificate BAS98ATEX3378 Notified Body...
- Page 9 IOM – 800 SERIES - ZONE 2 FLOODLIGHTS (ATEX, Ex n) On behalf of the Chalmit, I declare that, on the date the equipment accompanied by this declaration is placed on the market, the equipment conforms to all technical and regulatory requirements of the above listed directives.
