INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
503 - High Wattage Floodlight Luminaires
Industrial
Important:

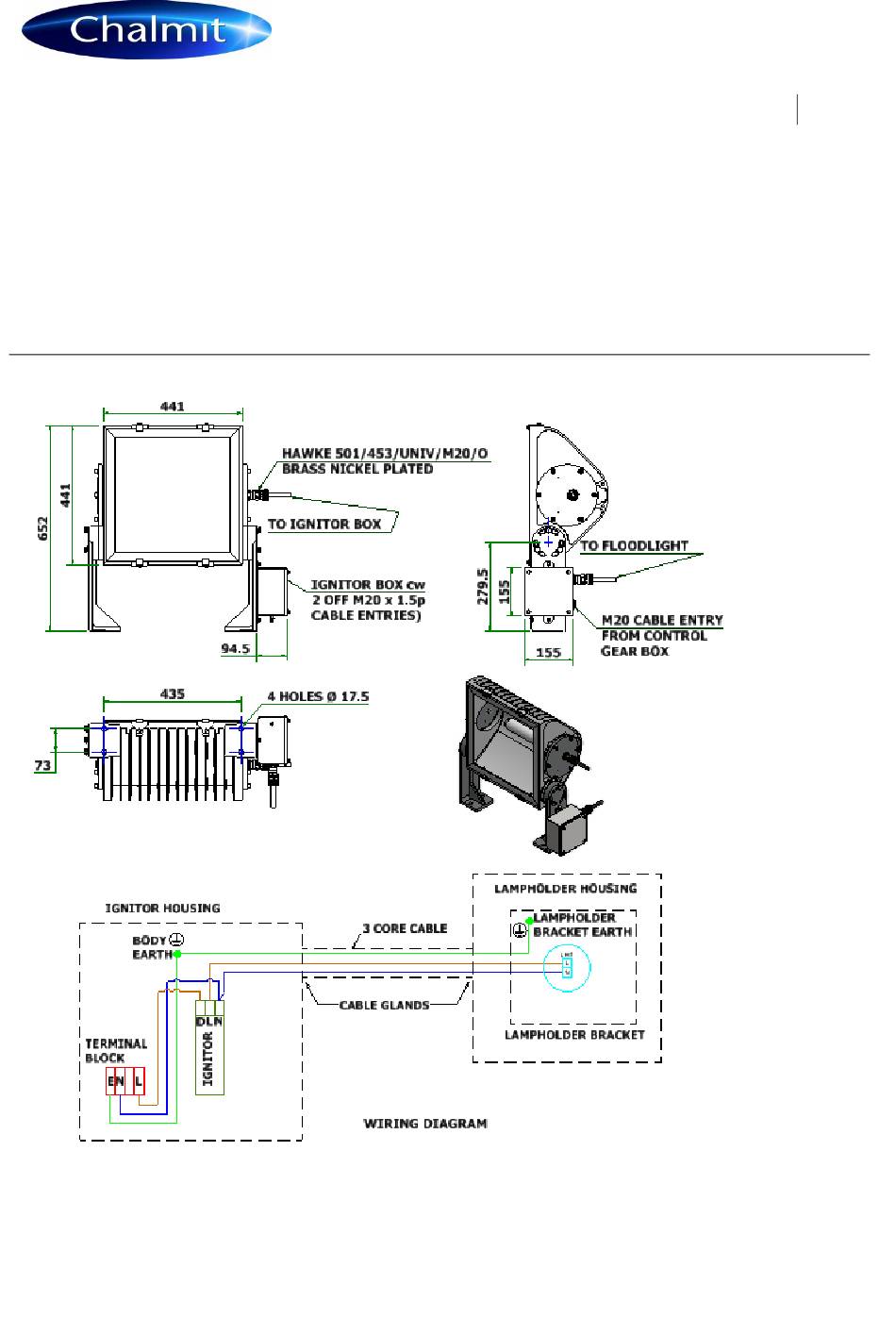

600W SON/T Version
I-503I-01.doc
Please read these instructions carefully before installing or maintaining this equipment.
Good electrical practices should be followed at all times and this data should be used
as a guide only.
Issue 10
– 503 - HIGH WATTAGE FLOODLIGHT (IND)
IOM
th
14
July 2016
Issue
10
1
Advertisement
Related Manuals for Chalmit 503
Summary of Contents for Chalmit 503
- Page 1 – 503 - HIGH WATTAGE FLOODLIGHT (IND) Issue INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS 503 - High Wattage Floodlight Luminaires Industrial Important: Please read these instructions carefully before installing or maintaining this equipment. Good electrical practices should be followed at all times and this data should be used as a guide only.
- Page 2 – 503 - HIGH WATTAGE FLOODLIGHT (IND) I-503I-01.doc Issue 10 July 2016...
- Page 3 M Poutney Technical Manager Introduction - 503 High Wattage Floodlight The 503 series of Industrial floodlights are designed for area lighting applications. The maximum ambient temperature is as shown. The unit is used in conjunction with a control gear box. Note: Lamp ranges and ambient temperature ratings are as indicated in TABLE 0.
- Page 4 Chalmit recommends Philips 1000W lamps 390mm long. In the later models, the length variation is catered for by a lamp steady using a spacer. This spacer can be put either on the stem or inside the steady cup to allow for a 2mm shift in the steady spring compression range.
- Page 5 Check the silicone sealant used to secure the lampglass. If it has become seriously discoloured or very soft, the luminaire will need to be returned to Chalmit for re-glazing. The material used for glazing has a long life and in normal applications would not be expected to deteriorate.
- Page 6 The unit is largely made of materials, which are very corrosion resistant. Overhaul consists of cleaning and replacement of gaskets where necessary. All the spares required are available from Chalmit. Please state the model number and lamp type. No unauthorised modifications should be made.
- Page 7 – 503 - HIGH WATTAGE FLOODLIGHT (IND) Tables 0/1 Table 0 Refer to Section : 1.0 Lamp Ranges and Ambient Temperature Ratings Lamp Ambient Rating 600W SON/T T amb -30°C to +60ºC 1000W SON/T T amb -30°C to +40ºC 1000W MBI T amb -30°C to +40ºC...
- Page 8 2011/65/EU RoHS II Directive On behalf of the Chalmit, I declare that, on the date the equipment accompanied by this declaration is placed on the market, the equipment conforms to all technical and regulatory requirements of the above listed directives.
