INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
800 Series - Stainless Steel Floodlight Luminaires
Industrial Models 844I, 854I, & 864I
Important:
3 HOLES ø13 (854, 864)
3 HOLES ø12 (844)
I-800I-01.doc
Please read these instructions carefully before installing or maintaining this equipment.
Good electrical practices should be followed at all times and this data should be used
as a guide only.
Issue 06
IOM – 844I, 854I & 864I - SS FLOODLIGHTS (IND)
A
C
C
844I

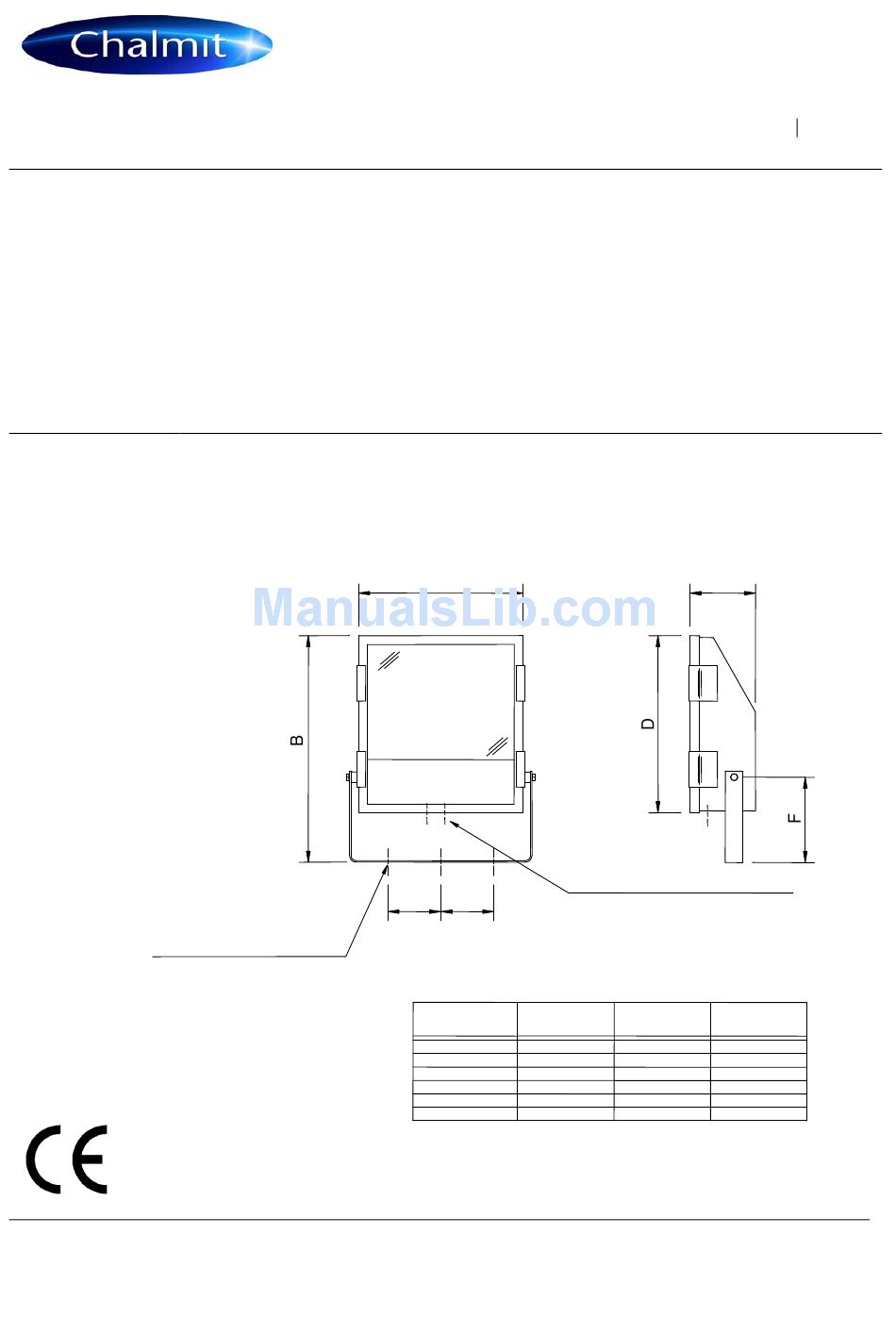

DIMENSIONS
70/100W
A
308
B
443
C
75
D
348
E
175
F
175
November 2013
Issue
E
2 OFF M20 CABLE ENTRIES
854I
150/250/400W
400/600W
415
415
630
150
490
185
260
06
864I
465
615
150
500
190
250
1
