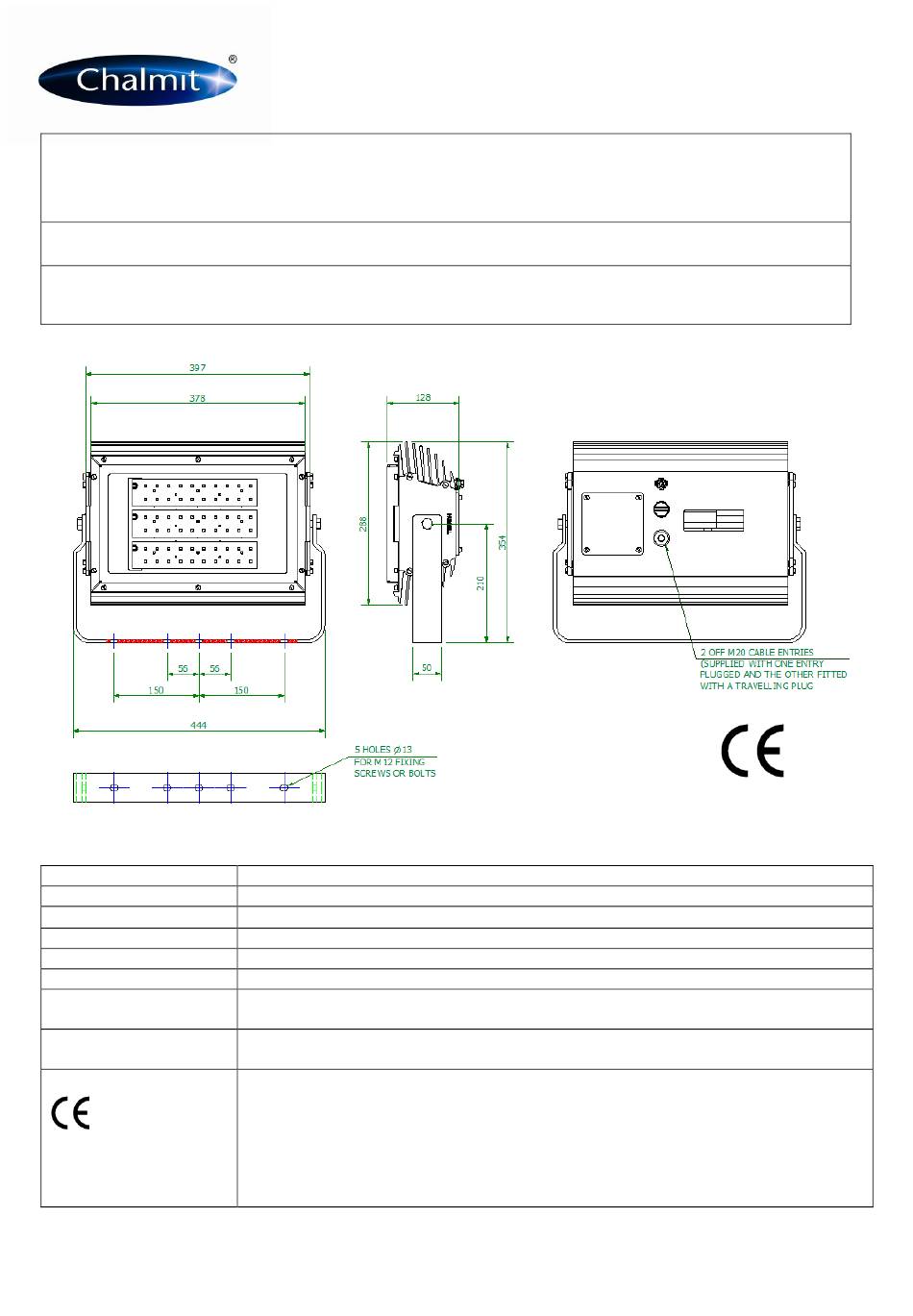

Arran LED Floodlight Luminaire
Industrial
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
Important: Please read these instructions carefully before installing or maintaining this equipment.
Good electrical practices should be followed at all times and this data should be used as a guide only.
0.0 Specification
Type Of Protection
Standards
Area Classification
Ambient
Ingress Protection
Photobiological safety of
Lamps and Lamp Systems
Vision Advisory Claim
CE Mark
___________________________________________________________________________________________________
I-ARRI-01.doc
N/A
EN 60598-1,
Non- Hazardous
-50°C to +55ºC
IP66 to EN 60529
Risk Group 2 LED product to IEC 62471
WARNING: Do not look at exposed led in operation especially with optical instruments. Eye
injury can result.
The CE marking of this product applies to "The Electrical Equipment (Safety) Regulations
2006", "The Electromagnetic Compatibility Regulations 2004", the "Waste Electrical and
Electronic Equipment Regulations 2006". [This legislation is the equivalent in UK law of EU
directives 2014/35/EU, 2014/30/EU, 2012/19/EU respectively].
M Poutney
Technical Manager
th
Issue 03
25
IOM –
April 2016
ARRAN LED FLOODLIGHT (IND)
1
Advertisement
Related Manuals for Chalmit Arran
Summary of Contents for Chalmit Arran
- Page 1 IOM – ARRAN LED FLOODLIGHT (IND) Arran LED Floodlight Luminaire Industrial INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS Important: Please read these instructions carefully before installing or maintaining this equipment. Good electrical practices should be followed at all times and this data should be used as a guide only.
- Page 2 ELECTRONICS AND LEDs, A CIRCUIT WITH THE LED FIXTURE MAY GIVE A FALSE MEGOHMMETER (MEGGAR) READING. IF A MEGOHMETER TEST IS REQUIRED, THE LED FIXTURE SHOULD BE REMOVED FROM THE CIRCUIT. 1.0 Introduction – ARRAN FLOODLIGHT The Arran LED Floodlight Luminaire operates from mains voltage. Table 1 MODEL VARIATIONS CHALMIT MODEL...
- Page 3 IOM – ARRAN LED FLOODLIGHT (IND) 3.2 Tools 4mm A/F socket keys 4mm flat blade screwdriver Suitable spanners for installing cable glands Pliers, knife, wire strippers/cutters 3.3 Electrical Supplies A maximum voltage variation of +6%/-6% on the nominal is expected.
- Page 4 LED replacement. If it is necessary to replace the LED’s, the LED’s are mounted on boards that can be replaced individually. (The boards with LED's supplied by Chalmit ). Remove cover assembly.
- Page 5 IOM – ARRAN LED FLOODLIGHT (IND) Directions for Installation of Accessories Note: Reflector and Guard cannot be used simultaneously. WARNING: Ensure the supply circuit is off before starting installation. To install reflector, carefully remove the 7 screws provided in housing that align with the locations of the holes on the reflector and retain the screws.
- Page 6 IOM – ARRAN LED FLOODLIGHT (IND) ___________________________________________________________________________________________________ I-ARRI-01.doc Issue 03 April 2016...
- Page 7 2011/65/EU RoHS II Directive On behalf of the Chalmit, I declare that, on the date the equipment accompanied by this declaration is placed on the market, the equipment conforms to all technical and regulatory requirements of the above listed directives.
