3. Product Overview

3.1 Package Contents

• The MFP Server (WL-203)
• CD-Rom (Control Center software, User's Manual and Quick Installation Guide)
• Power Adapter
• Warranty Card
•
Quick Installation Guide (printed manual)

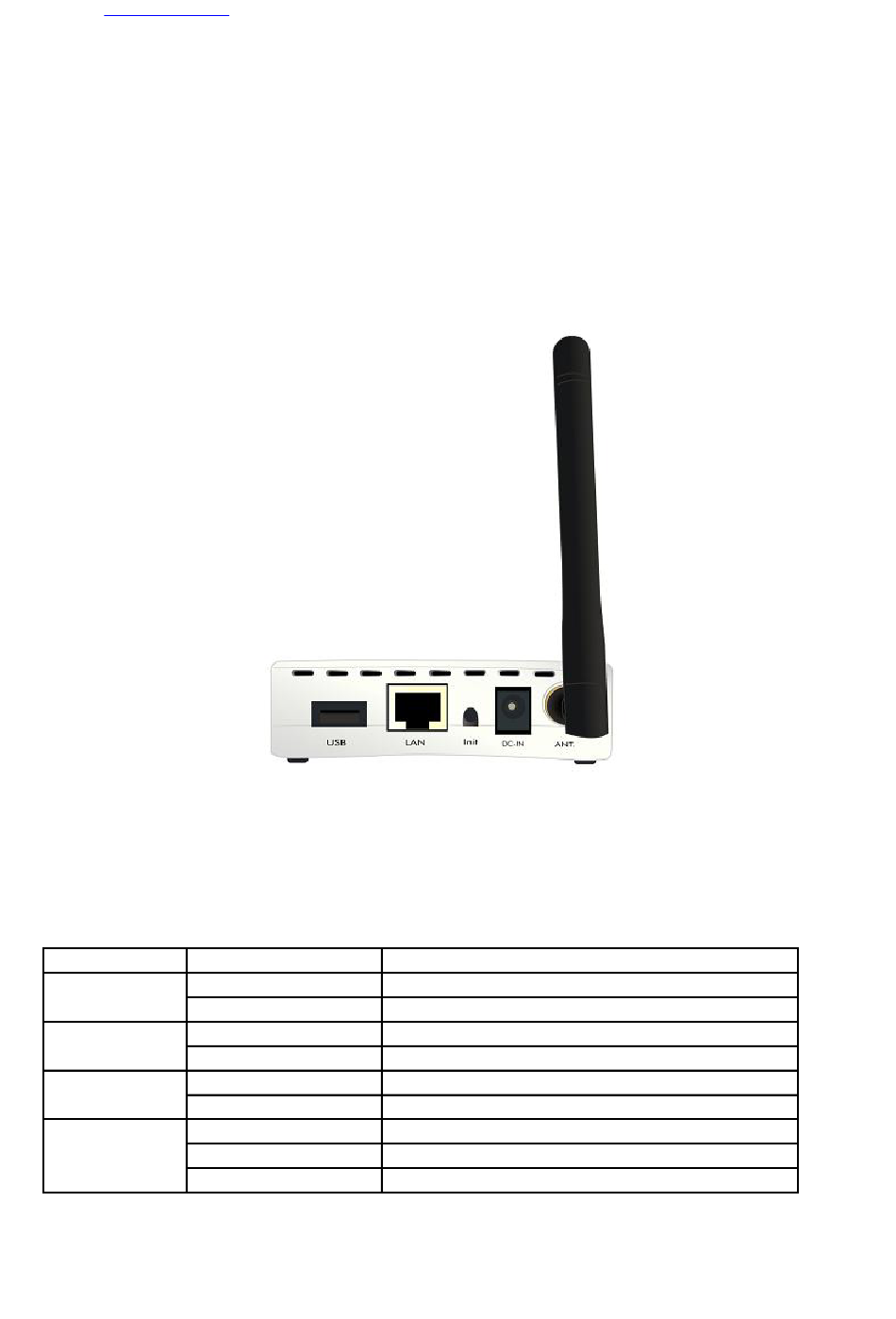

3.2 Physical Description

Power Adaptor Connector: 12V/1A adaptor
1.
Init Button: restore the parameters to the default values
2.
Ethernet Connector: a twisted pair category 5 cable
3.
USB Host Port: USB 1.1/2.0 low, full, and Hi-Speed compliant
4.
5. Indicators

3.2.1 LED Indicators

Indicators
Power
Link
Status
USB
for up to date drivers & utilities, manuals and support
Color/Behavior
Green
Not lit
Green
Not Lit
Green blinking
Not lit
Green
Green blinking
Not lit
Description
Power On
Power off/System error
Network connected
No physical connection to network
Activity on network
No activity on network
USB device connected
Connected USB device error
No physical connection to USB device
