Page 2

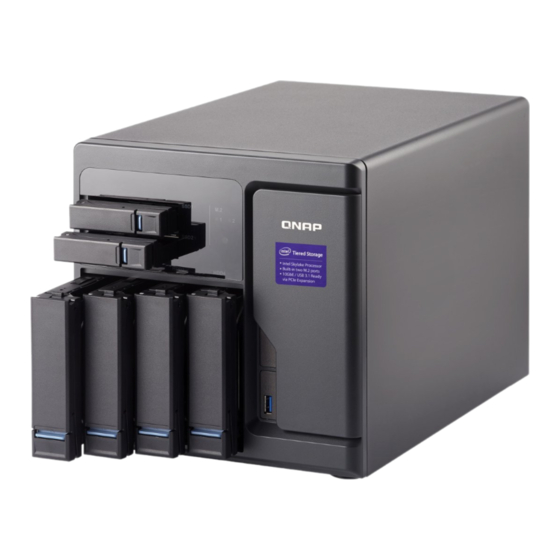

Thank you for choosing QNAP products! This user manual provides description of the hardware of the Turbo NAS and relevant guideline of certain functions. Please read carefully and strictly adhere to the instructions of the manual. This user manual is applicable to the following Turbo NAS models:...
Page 3
DISCLAIMER In no event shall QNAP Systems, Inc. (QNAP) liability exceed the price paid for the product from direct, indirect, special, incidental, or consequential damages resulting from the use of the product, its accompanying software, or its documentation. QNAP makes no warranty...
Page 4
Regulatory Notice FCC Notice The QNAP NAS complies with different FCC compliance classes. Please refer to 0 for details. Once the class of the device is determined, refer to the following corresponding statement. ======================================================= FCC Class A Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference.
Page 5
Modifications: Any modifications made to this device that are not approved by QNAP Systems, Inc. may void the authority granted to the user by the FCC to operate this equipment. CE NOTICE The QNAP NAS complies with different CE compliance classes. Please refer to Appendix A: Product Compliance Class for details.
Page 7
Symbols in this document This icon indicates the instructions must be strictly followed. Failure to do so could result in injury to human body or death. Warning This icon indicates the action may lead to disk clearance or loss OR failure to follow the instructions could result in data damage, disk Caution damage, or product damage.
Safety Warnings The NAS can operate normally in the temperature of 0ºC–40ºC (32ºF -104ºF) and relative humidity of 5%–95%. Please make sure the environment is well-ventilated. The power cord and devices connected to the NAS must provide correct supply voltage (100W, 90–264V).
Caution: Modifying the hardware, software, or firmware of the QNAP products will void the warranty. QNAP is not responsible for any form of damage or loss of data caused by modding the QNAP products. Users should bear their own risks of all sorts of possible data loss or system instabilities due to changing the hardware parts, modifying the default system firmware or installing any unauthorized third party applications on QNAP products.
Page 11
1 x USB 3.0 port (Front); 4 x USB 3.0 port (Rear) PCIe slots 1 x PCIe Gen3 x16; 1 x PCIe Gen3 x4 Gigabit network ports HDMI outputs IR sensor ✔ (QNAP remote control: RM-IR002) Power output 250W 450W...
Page 12
USB ports 1 x USB 3.0 port (Front); 4 x USB 3.0 port (Rear) PCIe slots 1 x PCIe Gen3 x8; 2 x PCIe Gen3 x4 Gigabit network ports HDMI outputs IR sensor ✔ (QNAP remote control: RM-IR002) Power output 250W...
Page 13
USB ports 1 x USB 3.0 port (Front); 4 x USB 3.0 port (Rear) PCIe slots 1 x PCIe Gen3 x8; 2 x PCIe Gen3 x4 Gigabit network ports HDMI outputs ✔ (QNAP remote control: RM-IR002) IR sensor Power output 450W...
Page 14
4 x USB 3.0 port (Rear) PCIe slots 1 x PCIe Gen3 x16; 1 x PCIe Gen3 x4 Gigabit 2 x 10 GBase-T; network ports 4 x GbE LAN ports Thunderbolt2 ports HDMI outputs IR sensor ✔ (QNAP remote control: RM-IR002) Power output 250W...
Page 15
1 x PCIe Gen3 x8; PCIe slots 2* PCIe Gen3 x4 Note: Two PCle Gen3 x4 slots are occupied by a Thunderbolt™ 2 card and a 10GbE adapter. HDMI outputs ✔ (QNAP remote control: RM-IR002) IR sensor 250W Power output...
Page 16
1 x PCIe Gen3 x8; PCIe slots 2 x PCIe Gen3 x4 Note: Three PCle slots are occupied by a Thunderbolt™ 2 card, a Thunderbolt™ 3 card, and a 10GbE adapter. HDMI outputs ✔ (QNAP remote control: RM-IR004) IR sensor 250W Power output...
• *This feature is only provided by the NAS models with LCD panels. Please visit http://www.qnap.com for details. Advanced system reset (10 sec) Press the reset button for 10 seconds; you will hear two beeps at the third and the tenth seconds.
Chapter 3. USB One Touch Copy This feature is only provided by NAS models with a USB One Touch Copy button. Please visit http://www.qnap.com for more details. System Number of seconds (press the one touch copy button to trigger data...
Chapter 4. LED and Alarm Buzzer Specifications The LED indicators of the NAS indicate the system status and information. When the NAS is turned on, check the following items to make sure the system status is normal. Note that the following LED information is applicable only when users have properly installed the hard drive, and connected the NAS to the network and the power supply.
Page 20
LED Status Description A USB device (connected to the front USB port) is being detected. A USB device (connected to the front USB port) is Flashes blue being removed from the NAS. every 0.5 sec The USB device (connected to the front USB port of the NAS) is being accessed.
Chapter 5. Beep alarm: All NAS models The beep alarm can be disabled in “Control Panel” > “System Settings” > “Hardware”. Beep sound Number of Times Description The NAS is starting up. The NAS is being shut down (software shutdown). Short beep (0.5 sec) The user presses the reset button to reset the NAS.
Chapter 6. Hot-swap Hard Drives The QNAP NAS is compatible with 2.5-inch/3.5-inch SATA hard drives from major hard drive brands. For the updated hard drive compatibility list, please visit http://www.qnap.com. Caution: QNAP disclaims any responsibility for product damage/malfunction or data •...
Page 23
Supports Supports Supports Hot-swap 3.5-inch 2.5-inch ping Hard Supports Supports System SATA SATA Drives M.2 SSD Hard Hard (RAID 1 or above Drives Drives only) TVS-682-PT-8G, TVS-682-i3-8G, TVS-882-i3-8G, TVS-882-i5-16G, TVS-882-i5-16G-450W, TVS-1282-i3-8G, TVS-1282-i5-16G, TVS-1282-i7-32G, TVS-1282-i5-16G-450W, TVS-1282-i7-32G-450W, TVS-682T-i3-8G, TVS-882T-i5-16G, TVS-1282T-i5-16G, TVS-1282T-i7-32G, TVS-1282T-i7-64G, TVS-1282T3-i5-16G, TVS-1282T3-i7-32G, TVS-1282T3-i7-64G...
6.1 Install Hard Drives Follow the below steps to install hard drives on the NAS. Pull down the hard drive lock to release the lock mechanism, press the tray button then the lever will pop out, pull out the trays. Install the HDDs For 2.5”...
Insert the hard drive trays into the NAS all the way to the rear and push the lever back until you hear a click then pull up the tray lock to ensure the tray is completely fixed in the system. Install M.2 SSDs Follow the below steps to install M.2 SSDs in the NAS.
Page 26
The TVS-x82 series has two M.2 SSD slots and supports 4 different M.2 SSD sizes (2242, 2260, 2280 and 22110). Move and fasten the riser screw to the appropriate position according to your M.2 SSD size. Then insert the M.2 SSD to the slot and secure it in place with the supplied screws.
Hot-swap Hard Drives The NAS supports hot-swapping hard drives if 1 member drive crashes in RAID 1 or 1–2 member drives crash in RAID 5 or RAID 6. Follow these steps to hot-swap hard drives if a member drive fails in a RAID configuration. Log into the NAS and check the storage pool status in “Storage Manager”...
When installing two memory modules, it is recommended to use the same size and ideally use the same type/model for both slots. QNAP provides different RAM modules (optional purchase) for users to upgrade the memory of their NAS. Follow these steps to install an extra memory module on the NAS.
Page 29
The above figure is shown as demonstration only. 2. Remove the case cover of the NAS. 3. Unplug the cable that is connected to the motherboard, loosen the screw on the fan module, press down the hook and then pull out the module.
Page 30
4. Pull the retention clips on each side so that the module can be removed. Remove the installed memory modules. Note: The maximum supported memory is 32GB combined. 5. Press down the memory module to the slot and until it clips into place. Ensure the memory module sits properly with the clips in place.
Page 31
6. Reinstall the fan module and reconnect the cable to the motherboard, Close the case cover and fasten the screws. Connect the power adaptor and cables back to the NAS. 7. To check that the memory module is recognized by the NAS, power up the NAS and log into the web interface as an administrator.
Some NAS models provide expansion slots for network expansion. Insert an extra network expansion card (optional purchase) to the motherboard of the NAS to increase the network connectivity options. Please refer to the compatibility list at: http://qnap.com/compatibility The TVS-x82T series includes a dual-port 10GBase-T network expansion card and dual-port Thunderbolt 2 card, The TVS-x82 series provides empty PCIe slots for the user to install expansion cards as required.
Page 33
To use Gen.3 x 4 or Gen.3 x 8 PCIe slot (TVS-1282) Turn the NAS to the CPU side and loosen the screw to remove the bracket. Grasp the edge of the expansion card. Align the notch on the gold edge of the card with the notch in the PCIe slot.
Page 34
Install the fan module, close the case cover, and fasten the screws. Connect the power adaptor and cables to the NAS. To check that the expansion card is recognized by the NAS, power up the NAS, log into the web interface as an administrator, and go to “System Administration”.
Page 35
card with the notch in the PCIe slot. Insert the expansion card to the PCIe slot until it cannot go any further. iii. Fasten the screw to keep the expansion card in place. Install the fan module, close the case cover, and fasten the screws. Connect the power adaptor and cables to the NAS.
Page 36
iii. Fasten the screws to completely fix the graphic card. Find the power cable as identified in the below marked area. Connect the power cable to graphic card.
Page 37
Install the fan module, close the case cover, and fasten the screws. Connect the power adaptor and cables to the NAS. To check that the graphics card is recognized by the NAS, power on the NAS, login as an administrator, and go to “System Administration”.
Chapter 9. RAID Recovery The QNAP NAS supports recovery of a failed RAID group from unintentional disconnection or removal of the hard drives from the system. Users can recover an inactive RAID 1, RAID 5, or RAID 6 group to degraded mode, or an inactive RAID 0 and JBOD configuration to normal.
Page 39
Standard QNAP RAID 5 Standard QNAP RAID 6 RAID 5 RAID 6 Degraded mode N-1 & N-2 N-1 & N-2 Read only N-1, bad blocks N-2, bad blocks protection (for found in the found in the immediate data surviving drives of surviving drives of backup &...
Technical Support QNAP provides dedicated online support and customer service via instant messenger. Online Support: http://www.qnap.com Skype: qnapskype Forum: http://forum.qnap.com Technical Support in the USA and Canada: Email: q_supportus@qnap.com TEL: +1-909-595-2782 Address: 168 University Parkway, Pomona CA 91768 Service Hours: 08:00-17:00 (GMT- 08:00 Pacific Time, Monday to Friday)
Appendix A: Product Compliance Class NAS Models TVS-682-PT-8G, TVS-682-i3-8G, TVS-882-i3-8G, TVS-882-i5-16G, TVS-882-i5-16G-450W, TVS-1282-i3-8G, TVS-1282-i5-16G, TVS-1282-i7-32G, TVS-1282-i5-16G-450W, TVS-1282-i7-32G-450W, Class B Class B TVS-682T-i3-8G, TVS-882T-i5-16G, TVS-1282T-i5-16G, TVS-1282T-i7-32G, TVS-1282T-i7-64G, TVS-1282T3-i5-16G, TVS-1282T3-i7-32G, TVS-1282T3-i7-64G...
Page 43
For the developers' and authors' protection, the GPL clearly explains that there is no warranty for this free software. For both users' and authors' sake, the GPL requires that modified versions be marked as changed, so that their problems will not be attributed erroneously to authors of previous versions.
Page 44
To “propagate” a work means to do anything with it that, without permission, would make you directly or secondarily liable for infringement under applicable copyright law, except executing it on a computer or modifying a private copy. Propagation includes copying, distribution (with or without modification), making available to the public, and in some countries other activities as well.
Page 45
the work, including scripts to control those activities. However, it does not include the work's System Libraries, or general-purpose tools or generally available free programs which are used unmodified in performing those activities but which are not part of the work. For example, Corresponding Source includes interface definition files associated with source files for the work, and the source code for shared libraries and dynamically linked subprograms that the work is specifically designed to require, such as by intimate data...
Page 46
When you convey a covered work, you waive any legal power to forbid circumvention of technological measures to the extent such circumvention is effected by exercising rights under this License with respect to the covered work, and you disclaim any intention to limit operation or modification of the work as a means of enforcing, against the work's users, your or third parties' legal rights to forbid circumvention of technological measures.
Page 47
to form a larger program, in or on a volume of a storage or distribution medium, is called an “aggregate” if the compilation and its resulting copyright are not used to limit the access or legal rights of the compilation's users beyond what the individual works permit. Inclusion of a covered work in an aggregate does not cause this License to apply to the other parts of the aggregate.
Page 48
Corresponding Source as a System Library, need not be included in conveying the object code work. A “User Product” is either (1) a “consumer product”, which means any tangible personal property which is normally used for personal, family, or household purposes, or (2) anything designed or sold for incorporation into a dwelling.
Page 49
section must be in a format that is publicly documented (and with an implementation available to the public in source code form), and must require no special password or key for unpacking, reading or copying. 7. Additional Terms. “Additional permissions” are terms that supplement the terms of this License by making exceptions from one or more of its conditions.
Page 50
meaning of section 10. If the Program as you received it, or any part of it, contains a notice stating that it is governed by this License along with a term that is a further restriction, you may remove that term. If a license document contains a further restriction but permits relicensing or conveying under this License, you may add to a covered work material governed by the terms of that license document, provided that the further restriction does not survive such relicensing or conveying.
Page 51
Ancillary propagation of a covered work occurring solely as a consequence of using peer-to-peer transmission to receive a copy likewise does not require acceptance. However, nothing other than this License grants you permission to propagate or modify any covered work. These actions infringe copyright if you do not accept this License. Therefore, by modifying or propagating a covered work, you indicate your acceptance of this License to do so.
Page 52
License. Each contributor grants you a non-exclusive, worldwide, royalty-free patent license under the contributor's essential patent claims, to make, use, sell, offer for sale, import and otherwise run, modify and propagate the contents of its contributor version. In the following three paragraphs, a “patent license” is any express agreement or commitment, however denominated, not to enforce a patent (such as an express permission to practice a patent or covenant not to sue for patent infringement).
Page 53
contain the covered work, unless you entered into that arrangement, or that patent license was granted, prior to 28 March 2007. Nothing in this License shall be construed as excluding or limiting any implied license or other defenses to infringement that may otherwise be available to you under applicable patent law.
Page 54
Public License can be used, that proxy's public statement of acceptance of a version permanently authorizes you to choose that version for the Program. Later license versions may give you additional or different permissions. However, no additional obligations are imposed on any author or copyright holder as a result of your choosing to follow a later version.
