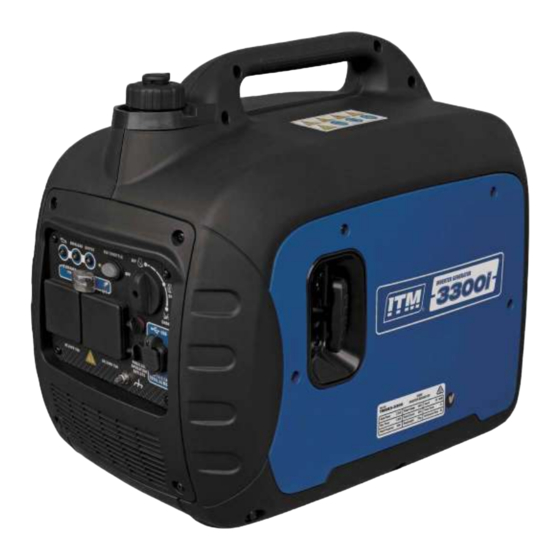

- Page 1 INVERTER GENERATOR OPERATOR’S MANUAL Part No: TM523-3300 Ver: 1.1 TO PREVENT SERIOUS INJURY OR DAMAGE TO YOUR GENERATOR, READ AND UNDERSTAND ALL WARNINGS AND INSTRUCTIONS BEFORE USE www.itmtools.com.au...
-
Page 2: Table Of Contents
TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL TABLE OF CONTENTS Warranty ........................Product Specifications ..................... General Safety Rules For Operation ............... Usage ........................Control Function ....................... Pre-Operation ......................Operation ......................... Maintenance ......................Troubleshooting ....................... LIMITED WARRANTY Industrial Tool & Machinery Sales (hereinafter referred to as ITMS) will, within twelve (12) months from the original date of purchase, repair or replace any goods found to be defective in materials or workmanship. -
Page 3: Product Specifications
ITM inverter generators also have the added feature of parallel connection capability, this means that when you join any two ITM inverter generators together in parallel connection, you get the full combined rated power output whenever you need it. Keep your options open and add power as and when your demand changes. -
Page 4: General Safety Rules For Operation
TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL GENERAL SAFETY RULES FOR OPERATION DANGER Never use the generator in a location that is wet or damp. Never expose the generator to rain, snow, water spray or standing water while in use. Protect the generator from all hazardous weather conditions. - Page 5 TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL ADDITIONAL SAFETY RULES FOR GENERATORS Do not force the generator. Use the correct generator for your application. The correct generator will do the job better and safer at the rate for which it was designed.
-
Page 6: Usage
TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL USAGE WARNING NEVER exceed the rated wattage capacity of your generator. OVERLOADING may cause SERIOUS DAMAGE to the generator and attached electrical devices and may result in fire. Your generator MUST BE SIZED PROPERLY to provide both the running and starting (surge) wattage of the devices you will be powering. -
Page 7: Control Function
TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL Control Function Inverter Generator Owner's Manual 120V 60Hz (CSA) (1) Oil warning light (2) Overload indicator light (3) AC pilot light (4) ESC(engine smart control) (5) DC receptacle (6) DC protector (7) AC Breaker (8) Parallel receptacle... - Page 8 TM523-3300 INVERTER GENERATOR Control Function OPERATOR’S MANUAL Inverter Generator Owner's Manual CONTROL FUNCTION Start / Stop switch &\ CD Engine switch "OFF" Ignition circuit is switched off. Fuel is switched off. The engine will not run. @ Engine switch ® "ON"...
- Page 9 TM523-3300 INVERTER GENERATOR Control Function OPERATOR’S MANUAL Inverter Generator Owner's Manual Overload indicator light (Red) The overload indicator light G) comes on when an overload of a connected electrical device is detected, the inverter control unit overheats, or the AC output voltage rises. Then, the AC...
- Page 10 TM523-3300 INVERTER GENERATOR Control Function OPERATOR’S MANUAL Inverter Generator Owner's Manual AC pilot light (Green} �OFF ON� The AC pilot light CD comes on when the engine starts and produces power. DC protector The DC protector turns to "OFF" ®...
- Page 11 The generator setting output frequency TM523-3300 INVERTER GENERATOR can't change if it operates. OPERATOR’S MANUAL Engine smart control CD "ON" When the ESC switch is turned to "ON", the economy control unit controls the engine speed according to the connected load. The results are better fuel consumption and less noise.
- Page 12 Control Function Inverter Generator Owner's Manual TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL Fuel tank cap 1. Remove the fuel tank cap by turning it counterclockwise. 2. To start and run the engine, the air vent knob G) must be turned to "ON".
- Page 13 Pre-oparation TM523-3300 INVERTER GENERATOR Pre-oparation Pre-oparation OPERATOR’S MANUAL Inverter Generator Owner's Manual Inverter Generator Owner's Manual Inverter Generator Owner's Manual Pre-oparation Pre-oparation Pre-oparation 1 ······ p re-operation checks shoufd"be made each" " fime N OT I CE Pre-operation checks should be made each time prior ·...
- Page 14 TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL www.itmtools.com.au...
- Page 15 TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL www.itmtools.com.au...
- Page 16 Operation Inverter Generator Owner's Manual TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL Turn the Start / Stop switch to "CHOKE" ® a. Ignition circuit is switched on. b. Fuel is switched on. c. Choke is switched on. TIP: The choke is not required to start a warm engine.Push the...
- Page 17 Operation TM523-3300 INVERTER GENERATOR Inverter Generator Owner's Manual OPERATOR’S MANUAL STOPPING THE ENGINE TIP: Turn off any electric devices..CD Turn the ESC to "OFF" (D Disconnect any electric devices. Turn the Start/Stop switch to "OFF" a. Ignition circuit is switched off.
- Page 18 Operation TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL Inverter Generator Owner's Manual ALTERNATING CURRENT (AC) CONNECTION Be sure any electric devices are turned off before plugging AWARNING them in. • Be sure all electric devices including the lines and plug NOTICE connections are in good condition before connection to the generator.
- Page 19 Operation TM523-3300 INVERTER GENERATOR Inverter Generator Owner's Manual OPERATOR’S MANUAL BATTERY CHARGING TIP: The generator DC rated voltage is 12V. • Start the engine first, and then connect the generator to the battery • for charging. Before starting to charge the battery, make sure that the DC •...
- Page 20 Ventilate when charging or using in closed space. Always cover eyes when working near batteries. TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL KEEP OUT OF REACH OF CHILDREN AC PARALLEL OPERATION Before connection an appliance to either generator, make sure that it is in good working order and that its electrical rating does not exceed that of the receptacle.
- Page 21 Application Range TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL Inverter Generator Owner's Manual When using the generator, make sure the total load is within rated output of a generator. Otherwise, generator damage may occur. tlEI· 0.4-0.75 Power factor 0.8-0.95 (Efficiency 0.85) Rated voltage12v...
-
Page 22: Pre-Operation
Maintenance TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL Inverter Generator Owner's Manual Maintenance Safety is an obligation of the owner. Periodic inspection, adjustment and lubrication will keep your generator in the safest and most efficient condition possible. The most important points of generator inspection and lubrication are explained on the following pages. - Page 23 TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL www.itmtools.com.au...
- Page 24 TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL www.itmtools.com.au...
- Page 25 TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL www.itmtools.com.au...
- Page 26 TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL www.itmtools.com.au...
- Page 27 TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL www.itmtools.com.au...
- Page 28 TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL www.itmtools.com.au...
- Page 29 TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL Storage Inverter Generator Owner's Manual Storage Long term storage of your machine will require some preventive procedures to guard against deterioration. DRAIN THE FUEL 1. Turn the Start / Stop switch to "OFF"G). 2. Remove the fuel tank cap, remove the filter.
- Page 30 Inverter Generator Owner's Manual TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL ENGINE Perform the following steps to protect the cylinder, piston ring, etc. from corrosion. 1. Remove the spark plug; pour about one table-spoon of SAE 1 0W-30 into the spark plug hole and reinstall the spark plug.
-
Page 31: Troubleshooting
Troubleshooting TM523-3300 INVERTER GENERATOR Inverter Generator Owner's Manual OPERATOR’S MANUAL Troubleshooting ENGINE CAN'T START 1. Fuel systems • No petrol in the fire chamber. • No fuel in the fuel tank ... add fuel. • Fuel in tank. • Clogged fuel filter ..Clean fuel filter. - Page 32 TM523-3300 INVERTER GENERATOR OPERATOR’S MANUAL www.itmtools.com.au...
