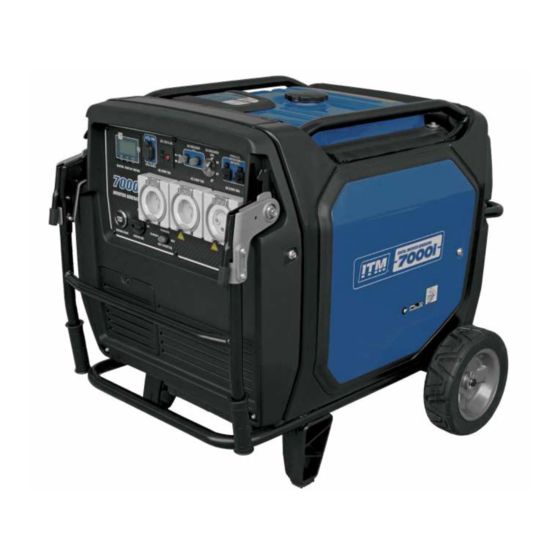

Itm TM523-7000 Operator's Manual

Inverter generator
Hide thumbs

Advertisement

Quick Links

Download this manual
INVERTER
GENERATOR
OPERATOR'S MANUAL
Part No: TM523-7000
Ver: 1.1
TO PREVENT SERIOUS INJURY OR DAMAGE TO YOUR GENERATOR, READ
!
!
AND UNDERSTAND ALL WARNINGS AND INSTRUCTIONS BEFORE USE
www.itmtools.com.au

Advertisement

loading
Need help?

Need help?

Do you have a question about the TM523-7000 and is the answer not in the manual?

Questions and answers

Related Manuals for Itm TM523-7000

Summary of Contents for Itm TM523-7000

  • Page 1 INVERTER GENERATOR OPERATOR’S MANUAL Part No: TM523-7000 Ver: 1.1 TO PREVENT SERIOUS INJURY OR DAMAGE TO YOUR GENERATOR, READ AND UNDERSTAND ALL WARNINGS AND INSTRUCTIONS BEFORE USE www.itmtools.com.au...

  • Page 2: Table Of Contents

    TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL TABLE OF CONTENTS Warranty ........................Product Specifications ..................... General Safety Rules For Operation ............... Usage ........................Control Function ....................... Pre-Operation ......................Operation ......................... Maintenance ......................Troubleshooting ....................... LIMITED WARRANTY Industrial Tool & Machinery Sales (hereinafter referred to as ITMS) will, within twelve (12) months from the original date of purchase, repair or replace any goods found to be defective in materials or workmanship.

  • Page 3: Product Specifications

    ITM inverter generators also have the added feature of parallel connection capability, this means that when you join any two ITM inverter generators together in parallel connection, you get the full combined rated power output whenever you need it. Keep your options open and add power as and when your demand changes.

  • Page 4: General Safety Rules For Operation

    TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL GENERAL SAFETY RULES FOR OPERATION DANGER Never use the generator in a location that is wet or damp. Never expose the generator to rain, snow, water spray or standing water while in use. Protect the generator from all hazardous weather conditions.
  • Page 5 TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL ADDITIONAL SAFETY RULES FOR GENERATORS Do not force the generator. Use the correct generator for your application. The correct generator will do the job better and safer at the rate for which it was designed.

  • Page 6: Usage

    TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL USAGE WARNING NEVER exceed the rated wattage capacity of your generator. OVERLOADING may cause SERIOUS DAMAGE to the generator and attached electrical devices and may result in fire. Your generator MUST BE SIZED PROPERLY to provide both the running and starting (surge) wattage of the devices you will be powering.

  • Page 7: Control Function

    TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL Control Function Inverter Generator Owner's Manual Control Function CONTROL P DESCRIPTION 120V/240V (1) Fuel tank (2) Fuel tank cap (3) Cover plate of oil level sensor (4) Frame components (5) Control panel Control Function (12)
  • Page 8 Control Function Inverter Generator Owner's Manual TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL CONTROL FUNCTION Start / Stop switch This switch controls ignition system, fuel system, power system, and solenoid valve. CD Off -- stop the engine: Ignition system is in the closed state, fuel switch is off, solenoid valve switch is off, and power system switch is off;...
  • Page 9 Control Function TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL Inverter Generator Owner's Manual Esc throttle CD "ON" When the ESC switch is turned to "ON", the economy control unit controls the engine speed according to the connected load. The results are better fuel consumption and less noise.
  • Page 10 Control Function TM523-7000 INVERTER GENERATOR Inverter Generator Owner's Manual OPERATOR’S MANUAL Digital display meter a. No content is displayed on the screen interface. Notes: If the battery has been installed, this interface indicates that the battery voltage is less than 8V (the battery needs...
  • Page 11 Control Function TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL Inverter Generator Owner's Manual If the unit does not have Blue tooth, the screen interface does not display the content of 23. 3. When the combination switch is placed on the "On" position, and the engine starts...
  • Page 12 Control Function TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL Inverter Generator Owner's Manual displayed in each display interface, the contents of 9 (displayed with Blue tooth, not displayed without Blue tooth) and 1 O are also displayed at the same time. xxxxxxxxxxxx 5.
  • Page 13 TM523-7000 INVERTER GENERATOR Control Function OPERATOR’S MANUAL Inverter Generator Owner's Manual Overload indicator light (Red) The overload indicator light comes on when an overload of a connected electrical device is detected, the inverter control unit overheats, or the AC output voltage rises. Then, the AC...
  • Page 14 50Hz 60Hz stops. The generator TM523-7000 INVERTER GENERATOR setting output frequency OPERATOR’S MANUAL can't change if it operates. DC protector The DC protector turns to "OFF" automatically when electric device being connected to the generator is operating above the rated flows.
  • Page 15 Control Function Inverter Generator Owner's Manual TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL AC circuit breaker ON � OFF �+- PUSH It will break to protect the electric device when current is too heavy. Folding handle Pusher makes it easier to push the generator.
  • Page 16 Pre-oparation Pre-oparation TM523-7000 INVERTER GENERATOR Inverter Generator Owner's Manual Pre-oparation OPERATOR’S MANUAL Inverter Generator Owner's Manual Inverter Generator Owner's Manual Pre-oparation Pre-oparation Pre-oparation I i · · · · · p re-operat1on checks should" . be made each time I i · · · · · p re-operat1on checks should" . be made each time...

  • Page 17: Pre-Operation

    Pre-oparation Inverter Generator Owner's Manual TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL Engine Oil The generator has been shipped without engine oil. Do not start the engine till fill with the sufficient engine oil. Do not tilt the generator when adding engine. This could result in overfilling and damage to the engine.

  • Page 18: Operation

    TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL Operation Inverter Generator Owner's Manual Operation Never operate the engine in a closed area or it may cause NOTICE unconsciousness and death within a short time. Operate the engine in a well ventilated area. The generator has been shipped without engine oil.
  • Page 19 Operation TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL Inverter Generator Owner's Manual generator is not in use, place the Start/Stop switch in the "Off" position. APP start 1. Download and install App. Prompt: Android Mobile can download App in any ways of the following ways.
  • Page 20 TM523-7000 INVERTER GENERATOR Operation OPERATOR’S MANUAL Inverter Generator Owner's Manual Recoil start ° Turn the lock 90 anticlockwise, and open right maintenance door. First, pull the recoil starter gently, the guy wire is tightened, and then pull hard. ° Turn the lock 90 clockwise, and close right maintenance door.
  • Page 21 TM523-7000 INVERTER GENERATOR Operation OPERATOR’S MANUAL Inverter Generator Owner's Manual ALTERNATING CURRENT (AC) CONNECTION Be sure any electric devices are turned off before plugging A,WARNING them in. • Be sure all electric devices including the lines and plug NOTICE connections are in good condition before connection to the generator.
  • Page 22 Operation TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL Inverter Generator Owner's Manual AC parallel operation Before connection an appliance to either generator, make sure that it is in good working order and that its electrical rating does not exceed that of the receptacle.
  • Page 23 Application Range TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL Inverter Generator Owner's Manual When using the generator, make sure the total load is within rated output of a generator. Otherwise, generator damage may occur. , . . . a ._ tlEI· �,..�...

  • Page 24: Maintenance

    Maintenance TM523-7000 INVERTER GENERATOR Inverter Generator Owner's Manual OPERATOR’S MANUAL Maintenance Safety is an obligation of the owner. Periodic inspection, adjustment and lubrication will keep your generator in the safest and most efficient condition possible. The most important points of generator inspection and lubrication are explained on the following pages.
  • Page 25 Maintenance TM523-7000 INVERTER GENERATOR Inverter Generator Owner's Manual OPERATOR’S MANUAL (1) When it is used for commercial purposes, record the running time to ensure timely maintenance. (2) Clean more frequently when using it in damp or dusty places. (3) Unless you have the appropriate tools and mechanical proficiency, these items should be maintained by the service dealer.
  • Page 26 TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL www.itmtools.com.au...
  • Page 27 TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL www.itmtools.com.au...
  • Page 28 TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL www.itmtools.com.au...
  • Page 29 TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL www.itmtools.com.au...
  • Page 30 Maintenance TM523-7000 INVERTER GENERATOR Inverter Generator Owner's Manual OPERATOR’S MANUAL ° 1. Rotate the lock 90 anticlockwise, and open left maintenance door. 2. Loosen bolt of spark plug's maintenance cover and remove it. 3. Remove the spark plug cap, remove impurities and dust around...
  • Page 31 Maintenance TM523-7000 INVERTER GENERATOR Inverter Generator Owner's Manual OPERATOR’S MANUAL NOTICE I Loose spark plugs may i overheat and damage thE' 0.024-0.031 in (0.6-0.Smm) engine. Excessive tightening of spark plugs can damage the thread on the head of cylinder. 8. Install the spark plug cap.
  • Page 32 TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL www.itmtools.com.au...
  • Page 33 TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL www.itmtools.com.au...
  • Page 34 TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL www.itmtools.com.au...
  • Page 35 TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL www.itmtools.com.au...
  • Page 36 Transporting TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL Inverter Generator Owner's Manual Transporting If the generator set just runs, allow it to cool naturally for at least 15 minutes before loading it into the vehicle. The thermal power and exhaust system can cause harm to people and ignite some combustible materials. To prevent fuel leakage, the generator shall be placed horizontally and the engine switch shall be off during transportation.
  • Page 37 TM523-7000 INVERTER GENERATOR Storage and Transportation OPERATOR’S MANUAL Inverter Generator Owner's Manual Storage and Transportation Long term storage of your machine will require some preventive procedures to guard against deterioration. In order to make your generator trouble-free and in good condition, proper storage preparation is essential.
  • Page 38 Storage and Transportation TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL Inverter Generator Owner's Manual 1. Turn the Start/Stop switch to "ON" position. 2. Open the tank cover and remove the filter; all the fuel in the tank is extracted into the special tank and then put back into the filter screen and tank cover.
  • Page 39 Common Fault Analysis TM523-7000 INVERTER GENERATOR OPERATOR’S MANUAL Inverter Generator Owner's Manual Common Fault Analysis Failure to Start of Engine Potential Reasons Countermeasures The Start / Stop switch is placed Turn the Start / Stop switch to the on the "Off" position.
