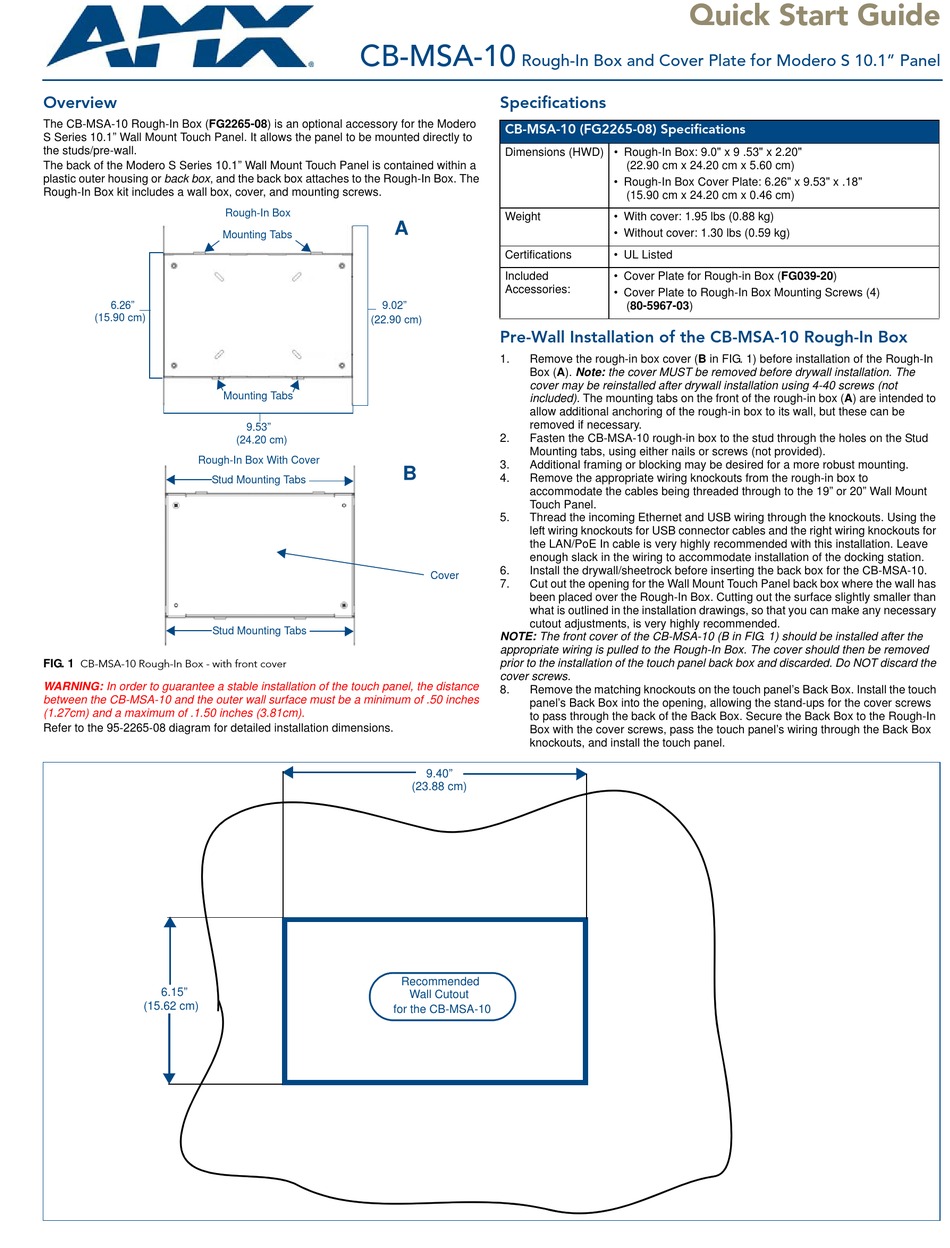

AMX CB-MSA-10 Quick Start Manual

Overview
The CB-MSA-10 Rough-In Box (FG2265-08) is an optional accessory for the Modero
S Series 10.1" Wall Mount Touch Panel. It allows the panel to be mounted directly to
the studs/pre-wall.
The back of the Modero S Series 10.1" Wall Mount Touch Panel is contained within a
plastic outer housing or back box, and the back box attaches to the Rough-In Box. The
Rough-In Box kit includes a wall box, cover, and mounting screws.
Mounting Tabs
6.26"
(15.90 cm)
Rough-In Box With Cover
Stud Mounting Tabs
Stud Mounting Tabs
FIG. 1 CB-MSA-10 Rough-In Box - with front cover
WARNING: In order to guarantee a stable installation of the touch panel, the distance
between the CB-MSA-10 and the outer wall surface must be a minimum of .50 inches
(1.27cm) and a maximum of .1.50 inches (3.81cm).
Refer to the 95-2265-08 diagram for detailed installation dimensions.
6.15"
(15.62 cm)
CB-MSA-10
Rough-In Box
A
9.02"
(22.90 cm)
Mounting Tabs
9.53"
(24.20 cm)
B
Recommended
for the CB-MSA-10
Rough-In Box and Cover Plate for Modero S 10.1" Panel
Specifications
CB-MSA-10 (FG2265-08) Specifications
Dimensions (HWD) • Rough-In Box: 9.0" x 9 .53" x 2.20" 
Weight
Certifications
Included 
Accessories:
Pre-Wall Installation of the CB-MSA-10 Rough-In Box
1. Remove the rough-in box cover (B in FIG. 1) before installation of the Rough-In
Box (A). Note: the cover MUST be removed before drywall installation. The
cover may be reinstalled after drywall installation using 4-40 screws (not
included). The mounting tabs on the front of the rough-in box (A) are intended to
allow additional anchoring of the rough-in box to its wall, but these can be
removed if necessary.
2. Fasten the CB-MSA-10 rough-in box to the stud through the holes on the Stud
Mounting tabs, using either nails or screws (not provided).
3. Additional framing or blocking may be desired for a more robust mounting.
Remove the appropriate wiring knockouts from the rough-in box to 
4.
accommodate the cables being threaded through to the 19" or 20" Wall Mount
Touch Panel.
5. Thread the incoming Ethernet and USB wiring through the knockouts. Using the
left wiring knockouts for USB connector cables and the right wiring knockouts for
the LAN/PoE In cable is very highly recommended with this installation. Leave
enough slack in the wiring to accommodate installation of the docking station.
6. Install the drywall/sheetrock before inserting the back box for the CB-MSA-10.
Cover
7. Cut out the opening for the Wall Mount Touch Panel back box where the wall has
been placed over the Rough-In Box. Cutting out the surface slightly smaller than
what is outlined in the installation drawings, so that you can make any necessary
cutout adjustments, is very highly recommended.
NOTE: The front cover of the CB-MSA-10 (B in FIG. 1) should be installed after the
appropriate wiring is pulled to the Rough-In Box. The cover should then be removed
prior to the installation of the touch panel back box and discarded. Do NOT discard the
cover screws.
8. Remove the matching knockouts on the touch panel's Back Box. Install the touch
panel's Back Box into the opening, allowing the stand-ups for the cover screws
to pass through the back of the Back Box. Secure the Back Box to the Rough-In
Box with the cover screws, pass the touch panel's wiring through the Back Box
knockouts, and install the touch panel.
9.40"
(23.88 cm)
Wall Cutout
Quick Start Guide
(22.90 cm x 24.20 cm x 5.60 cm)
• Rough-In Box Cover Plate: 6.26" x 9.53" x .18" 
(15.90 cm x 24.20 cm x 0.46 cm)
• With cover: 1.95 lbs (0.88 kg)
• Without cover: 1.30 lbs (0.59 kg)
• UL Listed
• Cover Plate for Rough-in Box (FG039-20)
• Cover Plate to Rough-In Box Mounting Screws (4) 
(80-5967-03)
