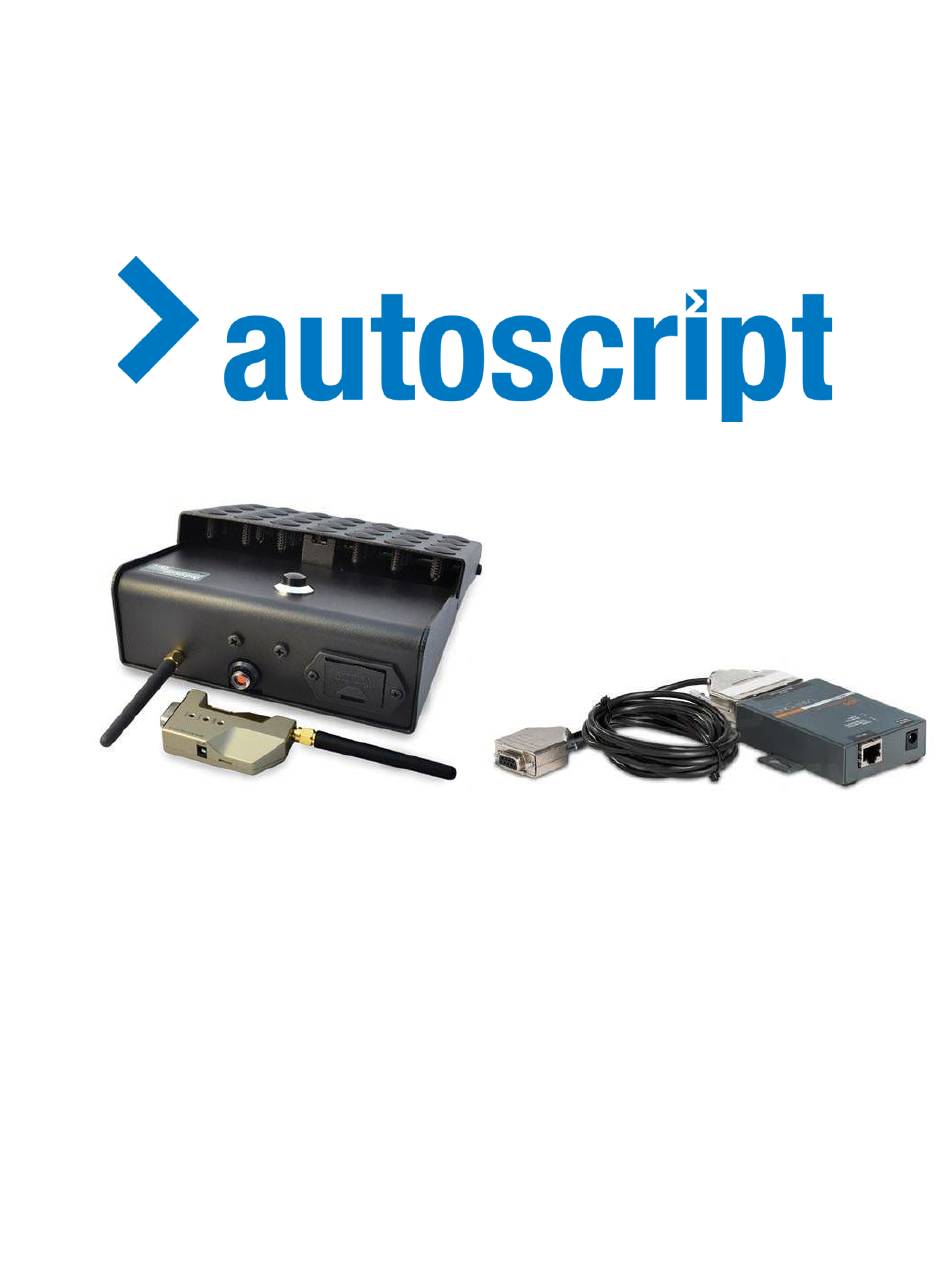

- Page 1 FC/WIRELESS-IP Operation Manual S/W Ver 1.12….. Date: March 3 2022 Page | 1...
- Page 2 Contents Copyright and Trademarks ........................3 Package Components..........................4 Prerequisites for Installation .......................4 Connecting the components........................4 Configuring the G452-006 (UDS1100) ....................5 Connect the G452-006 to WinPlus-IP ....................6 Connect the Wireless Controller and Receiver ..................7 Troubleshooting ..........................8 Page | 2...
- Page 3 Copyright and Trademarks The information in this document is subject to change without notice. This document is intended for the use of Videndum Production Solutions Limited staff, customers or persons having signed an NDA with Videndum Production Solutions limited for the purpose of the agreement under which the document has been submitted.
- Page 4 Prerequisites for Installation The FC/WIRELESS-IP requires two software packages to operate: WinPlus-IP o The main application is WinPlus-IP. FC/WIRELESS-IP is added to the Devices pane of the WinPlus-IP application and will control the scroll speed of the script. DeviceInstaller o The configuration application for the G452-006 Ethernet to serial converter is from Lantronix and is called DeviceInstaller.
- Page 5 Configuring the G452-006 (UDS1100) Download and install DeviceInstaller from the Lantronix support page: https://www.lantronix.com/products/deviceinstaller/ Instructions for setting the Baud Rate and IP address port assignment can be found in the UDS1100 documentation provided by Lantronix: http://www.lantronix.com/wp-content/uploads/pdf/UDS1100_UG.pdf Use the Web-Manager to set the device IP address if required. If a DHCP assignment is sufficient, proceed to change the port assignment: And lastly, set the correct Baud Rate of 1200 in the serial settings: Page | 5...
- Page 6 NOTE: To confirm the updated Baud Rate, you must exit and re-enter via Web-Manager Connect the G452-006 to WinPlus-IP To add the G452-006 Ethernet to Serial adapter (UDS1100) to WinPlus-IP, go to: DEVICES pane > Click + to Add From the Discovered Devices window, click “Manually Add Device”: Select “CON-FC/SERIAL”...
- Page 7 Complete the NAME field, enter the IP address of the G452-006 (UDS1100), and confirm the port assignment (auto-fills to 10001): Connect the Wireless Controller and Receiver The wireless transmitter and receiver are the Handyport HPS-120 and the manual can be downloaded here: https://www.manualslib.com/manual/1214418/Handywave-Hps-120.html To connect the Wireless controller to the Receiver, first put a fully charged 9v battery into the foot...
- Page 8 Troubleshooting Here are a list of issues and steps to resolve them: Receiver will not pair with foot controller o Check battery o Open foot controller and check transmitter ▪ Re-pair transmitter and receiver units (see Handyport HPS-120 manual) Battery is dying quickly o The battery is expected to work for 2 hours continuously o Rechargeable battery life may be shorter o Long distance between the transmitter and receiver will reduce battery life...
