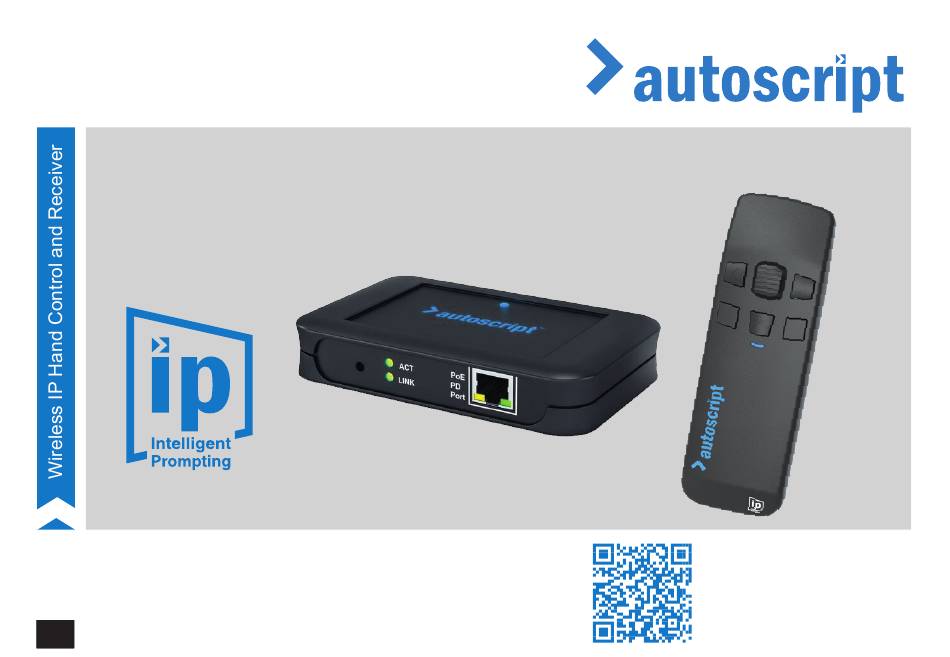

- Page 1 User Guide User Guide Wireless Controller and Base Station WC-IP WB-IP Part No. A9009-0007 A9009-0008 www.autoscript.tv...
- Page 2 Copyright © 2020 All rights reserved. Original Instructions: English All rights reserved throughout the world. No part of this publication may be stored in a retrieval system, transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of the Vitec Group Plc.
-
Page 3: Table Of Contents
Contents Safety.......... . 2 Routine Checks......12 Electrical Connection ...... . 2 Cleaning . -
Page 4: Safety
Safety Important information on the safe installation and operation of this product. Read this information before operating the product. For your personal safety, read these instructions. Do not operate the product if you do not understand how to use it safely. Save these instructions for future reference. Warning Symbols Used in these Instructions Safety cautions are included in these instructions. -
Page 5: Mounting And Installation
Safety Mounting and Installation / Montage et installation WARNING! Always ensure that all cables are routed so that they do not present any danger to personnel. Take care when routing cables in areas where robotic equipment is in use. AVERTISSEMENT ! Vérifiez toujours que les câbles d’alimentation et de communication auxiliaires sont acheminés de manière à... -
Page 6: Components And Connections

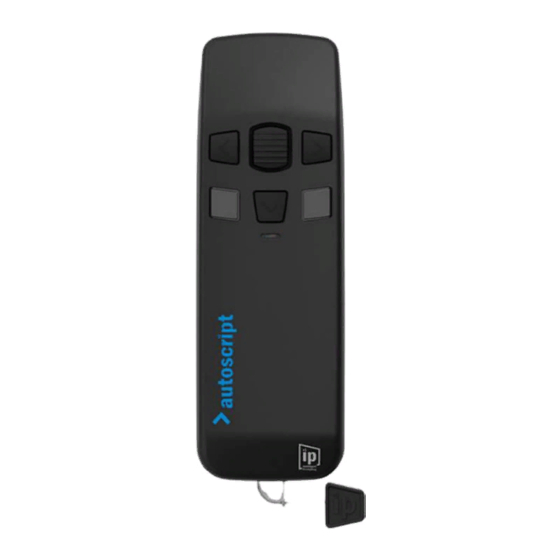

Components and Connections Wireless Controller Joystick (Scroll) Previous Story Button Next Story Button Function 1 (Programmable) Function 2 (Programmable) Top Story Button Status LED USB-C Socket (Charging only) Lanyard attachment... -
Page 7: Wireless Base Station
Components and Connections Wireless Base station RJ45. Powered over Ethernet Requires 3rd party IEEE 802.3af compatible PoE injector or XBox-IP (not included) Data LED Link LED Factory Reset Status LED... -
Page 8: Box Contents
Box Contents Wireless Controller Wireless Controller USB-C to USB-A Charging Cable Information Sheet... -
Page 9: Base Station
Box Contents Base Station Wireless Base Station Information Sheet... -
Page 10: Installation
Installation Powering Up WB-IP Wireless Base Station The receiver is automatically powered up when the PoE Ethernet cable Cat5 or Cat6 cable is attached. Requires 3rd party IEEE 802.3af compatible PoE injector or XBox-IP (A9009-0001 not included) Status LED Flashing Blue: Powered but unconnected to WinPlus-IP Solid Blue:... -
Page 11: Operation
Operation Status LED WC-IP: Wireless Controller Before first use follow the Solid Red: charging procedure on Live Controller page 10 to fully charge the Flashing Red: controller. Low battery indicator To power up, Hold down F1 Flashing Green: (function 1) button for 2 secs. - Page 12 The status light on both • Button 4: Function 1 (assignable in devices will flash. Winplus-IP). The WB-IP and WC-IP will pair in a range • Button 5: Function 2 (assignable in up to 100m/300ft (line of sight). WinPlus-IP).
- Page 13 • Ensure Status LED is visible for easy diagnosis. • 100m / 300ft max line of sight; obstructions placed in path between WC-IP and WB-IP will reduce operating range. 300 ft (100 m) Max. line of sight...
-
Page 14: Maintenance
Maintenance Routine Maintenance The WB-IP and WC-IP require minimal routine maintenance, apart from checking the connections and overall operation periodically. Routine checks During use, check the following: • Check PoE Ethernet cable for signs of wear or damage. Replace as necessary. -
Page 15: Charging
Charging Charging Battery Connect the USB cable to the wall charger (power adapter). Plug the USB cable into the USB-C port on Controller Plug the USB power adaptor into an electric socket and switch on the power supply. Wait until controller is fully charged approximately 2.5 hours. LED Status: Flashing RED = charge required, Flashing GREEN = charging, Solid GREEN = charged. -
Page 16: Technical Specification
Technical Specification A9009-0007 - WC-IP: Wireless Controller Power Integrated rechargeable Li-Po battery Battery Life 100hrs (continuous use) Charging time 2.5hrs (from 0 – 100% capacity) Wireless Range 100m / 300ft Operating Freq. 2.4GHz Antenna Integral Scroll Input Thumb operated joystick, vertical travel, centre-bias... -
Page 17: Base Station
Technical Specification A9009-0008 WB-IP: Wireless Base station Power PoE, 802.3af Wireless Range 100m / 300ft Operating Freq. 2.4GHz Antenna Integral Network Ethernet, 100BaseT Indicators RGB Status LED (power and wireless connection status) Ethernet Data LED Ethernet Link LED Connector RJ45 Weight 150g / 0.3lb Dimensions... -
Page 18: Troubleshooting
WP-IP software application (WB-IP/Device Configuration/ Speed Profile) The WC-IP is powered Check that the WB-IP is within the range of the WC-IP (max 300 Feet) up, but not paired with Check that the signal connection between the two devices is line of... - Page 19 Troubleshooting Fault Check Wireless Basestation The WB-IP is not Check that the power over Ethernet source has a suitable power powering up injector Check that the cable from the PoE source is firmly locked into the PoE input on the WB-IP Check that a quality Cat5 or Cat6 cable has been used to connect to the PoE injector The WB-IP is powered...
-
Page 20: General Notices
General Notices FCC Certification FCC Warning Declaration of Conformity Changes or modifications not expressly approved by the party responsible for Vitec Production Solutions Limited declares compliance could void the user’s authority to that this product has been manufactured in operate the equipment. accordance with BS EN ISO 9001:2008. - Page 21 General Notices Disposal of Waste Batteries Environmental considerations Any batteries included with this product European Union Waste of Elec- must not be treated as household waste. trical and Electronic Equipment By ensuring these batteries are disposed (WEEE) Directive (2012/19/EU) of correctly, you will help prevent potentially negative consequences for the environment This symbol marked on the product or its packaging and human health, and help conserve...
- Page 22 Publication No. A9009-4988/0 www.autoscript.tv...
