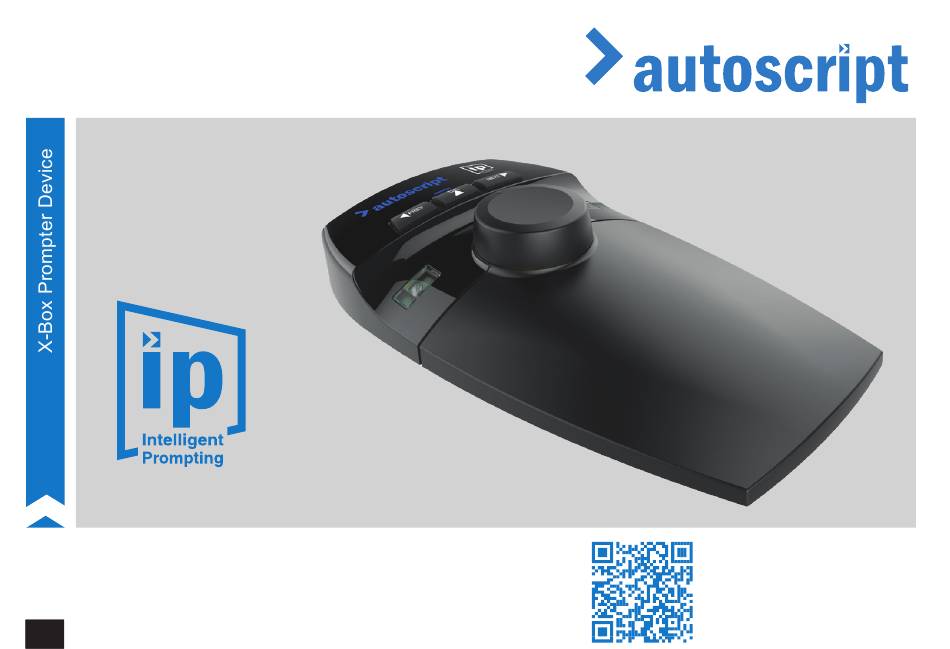

- Page 1 User Guide User Guide Hand Controller HC-IP Part No. A9009-0002 www.autoscript.tv...
- Page 2 Copyright © 2017 All rights reserved. Original Instructions: English All rights reserved throughout the world. No part of this publication may be stored in a retrieval system, transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of the Vitec Group Plc.
-
Page 3: Table Of Contents
Contents Safety.......... . 2 Routine Maintenance ......10 Electrical Connection .. -
Page 4: Safety
Safety Important information on the safe installation and operation of this product. Read this information before operating the product. For your personal safety, read these instructions. Do not operate the product if you do not understand how to use it safely. Save these instructions for future reference. -
Page 5: Mounting And Installation
Safety Mounting and Installation WARNING! Always ensure that all cables are routed so that they do not present any danger to personnel. Take care when routing cables in areas where robotic equipment is in use. Water, Moisture and Dust WARNING! Protect the product from water, moisture and dust. The presence of electricity near water can be dangerous. -
Page 6: Components And Connections
Components and Connections Top View Scroll wheel (forwards backwards) Right programmable function button (illuminated) Next button Status LED Top of script button Previous button Left programmable function button (illuminated) -
Page 7: Front View
Components and Connections Front View RJ45. Powered over Ethernet Requires 3rd party PoE injector or XBox-IP (not included) Data LED Link LED Factory Reset... -
Page 8: Box Contents
Components and Connections Box Contents HC-IP Controller Quick Start Guide... -
Page 9: Installation
Installation Powering Up The controller is automatically powered up when the PoE Ethernet cable Cat5 or Cat6 cable is attached. Requires 3rd party PoE injector or XBox-IP (not included) Status LED Status LED and programmable function buttons flash once: Powered on. Flashing Blue light: Connected to the application but not the network. -
Page 10: Operation
Operation Forward scroll control Slow forward speed Stop scroll Forward Reverse scroll control scroll control Backward scroll control Slow backward speed Stop scroll position... - Page 11 Operation First press - Back to top of the current story. Subsequent presses - To top of previous story. Returns the prompter text to the top of the run order. Advances to the top of the next story. Customisable buttons from within WinPlus IP software.
-
Page 12: Routine Maintenance
Maintenance Routine Maintenance The HC-IP Controller requires minimal routine maintenance, apart from checking the connections and overall operation periodically. Routine checks During use, check the following: • Check PoE Ethernet cable for signs of wear or damage. Replace as necessary. -
Page 13: Technical Specification
Technical Specification Physical Data Power • 3 W Max. HC-IP • Powered over Ethernet (PoE) 134 mm Width* • Third party PoE Injector Required or XBox-IP (5.27 in) (not included) 230 mm Length* Status LED’s (9.05 in) • Connection 42 mm Height* (1.65 in) -
Page 14: Troubleshooting
If added to the system manually check the correct details are entered in the Manually Add Device fields The HC-IP IP address is not configurable Check that the correct IP address has been added for the HC-IP. (i.e. has correctly from the this IP address been used for a different device) application... -
Page 18: General Notices
General Notices FCC Certification FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Declaration of Conformity This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This product may not cause harmful interference. - Page 19 General Notices Declaration of Conformity Environmental considerations European Union Waste of Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) Vitec Videocom Limited declares that this This symbol marked on the product or its packaging product has been manufactured in accordance indicates that this product must not be disposed of with BS EN ISO 9001:2008.
- Page 20 Publication No. A9009-4981/1 www.autoscript.tv...
