Summary of Contents for AMC MA 30
- Page 2 Important Do not install this equipment in a confined space such as a book case or similar unit. The apparatus should not be dripped or splashed and no objects filled with liquids, such as vases, should not be placed on the apparatus. This unit should not be used near water (e.g.
-
Page 3: Front Panel

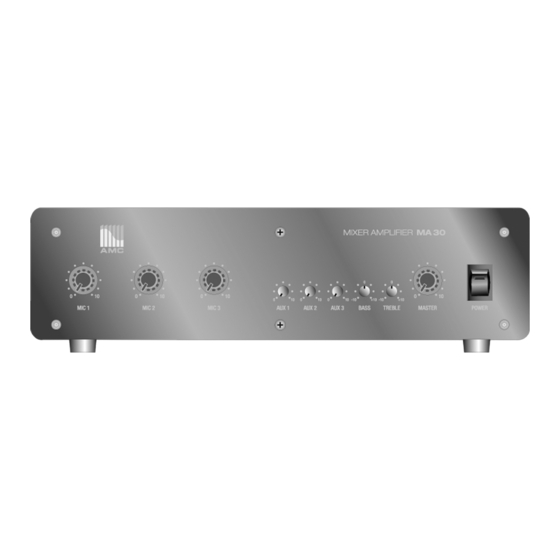

FRONT PANEL 1. Mic. 1 Level Control 6. AUX 3 Level Control 2. Mic. 2 Level Control 7. Master Tone Control (Bass) 3. Mic. 3 Level Control 8. Master Tone Control (Treble) 4. AUX 1 Level Control 9. Master Volume Control 5. -
Page 4: Microphone Connection
Power Source The amplifier is fixed at 115V AC or 230V AC. It depends on the territory main voltage. Battery Connection (12Vdc) When using external batteries, earth the amplifier via the screw terminal because of present high voltage. Electrical stability of the system will be improved by providing a good earth ground. NOTE: the connection cable must be fitted with an in-line fuse - quick blow type 5A (60V). - Page 5 80 W @ RATED POWER DC Power Consumption 48 W @ RATED POWER Dimensions 68 mm (H) x 275 mm ( W) x 225 mm (D) Weight 4 kg Mounting Table top or Hang-bracket AMC is a registered trademark of AMC Baltic www.amcpro.lt...
