Item No. : 3810

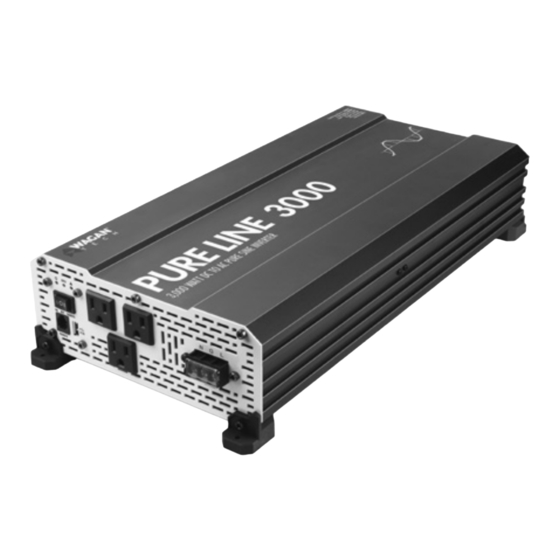

PURE LINE 3000
User's Manual
RoHS
compliant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PURE LINE 3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wagan PURE LINE 3000

  • Page 1 Item No. : 3810 PURE LINE 3000 User’s Manual RoHS compliant...
  • Page 2 Advanced microprocessor-controlled circuits run cooler and are more reliable than competing units. The Pure Line 3000 operates at high efficiency (up to 90%), that results in long run time and extended battery life compared to other inverters with this level of power output.
  • Page 3: Specifications

    User’s Manual—Read before using this equipment SPECIFICATIONS Output waveform Pure sine wave Input 12V DC Output 115V AC TrueRated Power 3,000W (24-hour continuous) ™ Peak surge 6,000 watts Maximum efficiency Frequency 60Hz Total harmonic distortion (THD) < 3% No load current draw <...
  • Page 4: Disposal/Recycling Of Inverter

    Pure Line 3000 by Wagan Tech ® WARNING … INVERTER OUTPUT CAN BE LETHAL. IMPROPER USE OF THIS INVERTER MAY RESULT IN PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. • Keep the inverter away from any direct heat source or combustible materials.
  • Page 5: Front Panel

    User’s Manual—Read before using this equipment FRONT PANEL ON/OFF/ Remote Power LED Switch High Output Ground Fault LED Terminals Fault LED 2.1A USB Port Three 115V Remote ON/OFF AC Outlets Switch Connection • ON/OFF/Remote Switch — This switch controls AC output of the inverter. •...
  • Page 6 Pure Line 3000 by Wagan Tech ® If an inverter shutdown was preceded by a buzzing sound, there may ƒ be an excessive load in combination with a low voltage or cable problem. Normal operating range is 11V to 15V DC.
  • Page 7 User’s Manual—Read before using this equipment REAR PANEL Positive (+) DC Negative (–) DC Input Terminal Input Terminal Mounting Terminal High Speed Ground Points Terminal Cover Cooling Fans • Positive Terminal — Positive (+) DC Input (Red) • Negative Terminal — Negative (−) DC Input (Black) •...
  • Page 8: Remote On/Off Control

    Pure Line 3000 by Wagan Tech ® REMOTE ON/OFF CONTROL Optional wired remote control sold separately. Item #AA5603. Insert wired remote plug into Remote Switch Connection port. Set ON/OFF/ Remote switch to "remote" position. LOAD CONSIDERATIONS The startup load of an appliance is a major factor of whether this inverter can power it.
  • Page 9: Configuring The Battery Bank

    User’s Manual—Read before using this equipment multiply the amps by 115 (115V AC) to determine the watts. For example, an appliance rated at 0.5 amps will draw 60 watts. WATTS = VOLTS × AMPS Remember to consider the startup surge that motorized appliances will cause. Do not exceed the 6,000 watt momentary surge rating of this inverter.
  • Page 10 Pure Line 3000 by Wagan Tech ® • Cable gauge and length (cable losses). • Charge level of the batteries (between use, chargers have to be able to fully charge the batteries). • Temperature of the batteries (colder batteries provide fewer amps).
  • Page 11 User’s Manual—Read before using this equipment the battery bank’s positive terminal. The fuse amperage rating must be sized to allow simultaneous operation of all the AC appliances to be powered, plus 20 percent safety factor. Fuses are very important to protect equipment, batteries, and personnel.
  • Page 12: Dc Cable Gauge

    Pure Line 3000 by Wagan Tech ® DC CABLE GAUGE Minimize cable losses by using the thickest wire available and the shortest practical length. Measure Round Trip (RT) cable distances in feet. Round Trip cable distance is battery to inverter and back to battery. If the application is in a vehicle with engine operating, use the supplied cables for round trip distances up to 5 feet.
  • Page 13 User’s Manual—Read before using this equipment 4. Make sure the Power Switch located on the front panel of the inverter is in the Off position. 5. Locate the ground lug terminal on the inverter. Connect an insulated 10 gauge copper wire to the terminal. The other end of the ground wire is connected to a “proper”...
  • Page 14 Pure Line 3000 by Wagan Tech ® make the positive terminal connection immediately after the batteries have been charging. Allow time for the battery gasses to vent to outside air. 9. Attach the positive cable to the Positive DC connector on the battery and then the inverter.
  • Page 15 User’s Manual—Read before using this equipment … WARNING: THERE IS DANGER OF EXPLOSION. DO NOT CONNECT OR DISCONNECT INVERTER CABLES DIRECTLY AFTER BATTERY DISCHARGE OR RECHARGE—MAKE SURE THAT THE BATTERY BANK AREA IS WELL VENTED BEFORE ATTACHING OR REMOVING CABLES. OPERATING ISSUES: TELEVISION AND AUDIO EQUIPMENT SUGGESTIONS.
  • Page 16: Troubleshooting

    Pure Line 3000 by Wagan Tech ® TROUBLESHOOTING PROBLEM: Low or No Output Voltage – Fault LED Lit Reason Solution Poor contact with battery, inverter Clean terminals thoroughly. Reinstall terminals. and tighten. PROBLEM: Inverter Auto Shut Down – Fault LED Lit...
  • Page 17 Inadequate power being delivered to Use heavier gauge DC cables. the inverter or excessive voltage drop. Keep cable length as short as possible. Rely on premium batteries & power sources by Wagan if you’re looking for quality and efficiency.
