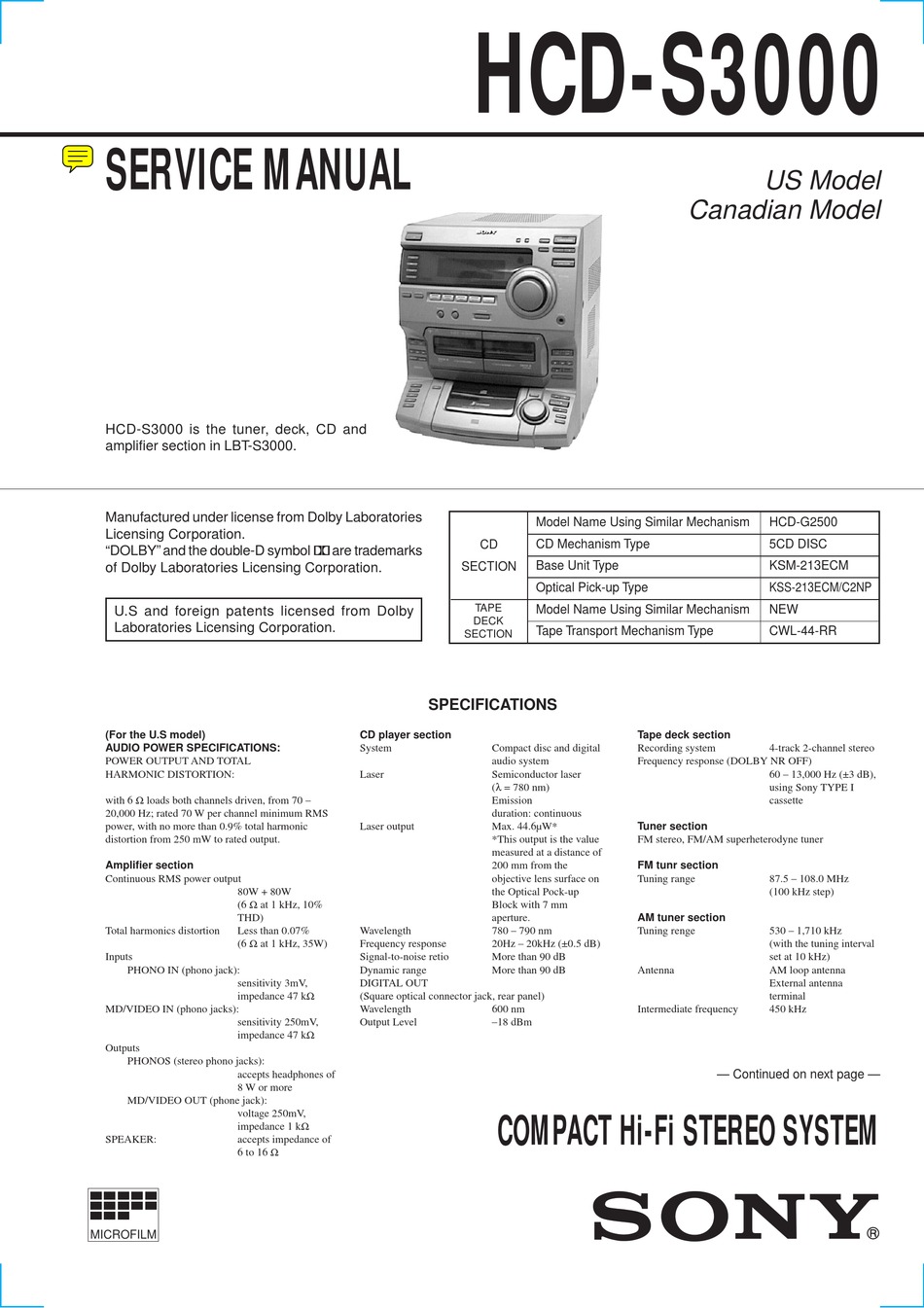

Sony HCD-S3000 Service Manual

SERVICE MANUAL
HCD-S3000 is the tuner, deck, CD and
amplifier section in LBT-S3000.
Manufactured under license from Dolby Laboratories
Licensing Corporation.
"DOLBY" and the double-D symbol a are trademarks
of Dolby Laboratories Licensing Corporation.
U.S and foreign patents licensed from Dolby
Laboratories Licensing Corporation.
(For the U.S model)
AUDIO POWER SPECIFICATIONS:
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
with 6 Ω loads both channels driven, from 70 –
20,000 Hz; rated 70 W per channel minimum RMS
power, with no more than 0.9% total harmonic
distortion from 250 mW to rated output.
Amplifier section
Continuous RMS power output
80W + 80W
(6 Ω at 1 kHz, 10%
THD)
Total harmonics distortion Less than 0.07%
(6 Ω at 1 kHz, 35W)
Inputs
PHONO IN (phono jack):
sensitivity 3mV,
impedance 47 kΩ
MD/VIDEO IN (phono jacks):
sensitivity 250mV,
impedance 47 kΩ
Outputs
PHONOS (stereo phono jacks):
accepts headphones of
8 W or more
MD/VIDEO OUT (phone jack):
voltage 250mV,
impedance 1 kΩ
SPEAKER: accepts impedance of
6 to 16 Ω
MICROFILM
HCD-S3000
CD
SECTION
TAPE
DECK
SECTION
SPECIFICATIONS
CD player section
System Compact disc and digital
audio system
Laser Semiconductor laser
(λ = 780 nm)
Emission
duration: continuous
Laser output Max. 44.6µW*
*This output is the value
measured at a distance of
200 mm from the
objective lens surface on
the Optical Pock-up
Block with 7 mm
aperture.
Wavelength 780 – 790 nm
Frequency response 20Hz – 20kHz (±0.5 dB)
Signal-to-noise retio More than 90 dB
Dynamic range More than 90 dB
DIGITAL OUT
(Square optical connector jack, rear panel)
Wavelength 600 nm
Output Level –18 dBm
COMPACT Hi-Fi STEREO SYSTEM
Canadian Model
Model Name Using Similar Mechanism
CD Mechanism Type
Base Unit Type
Optical Pick-up Type
Model Name Using Similar Mechanism
Tape Transport Mechanism Type
Tape deck section
Recording system
Frequency response (DOLBY NR OFF)
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tunr section
Tuning range
AM tuner section
Tuning renge
Antenna
Intermediate frequency
US Model
HCD-G2500
5CD DISC
KSM-213ECM
KSS-213ECM/C2NP
NEW
CWL-44-RR
4-track 2-channel stereo
60 – 13,000 Hz (±3 dB),
using Sony TYPE I
cassette
87.5 – 108.0 MHz
(100 kHz step)
530 – 1,710 kHz
(with the tuning interval
set at 10 kHz)
AM loop antenna
External antenna
terminal
450 kHz
— Continued on next page —
