Summary of Contents for SATA SATAgraph 1
- Page 1 SATAgraph ™ Betriebsanleitung – Operating instructions Instrucciones de servicio – Návod na obsluhu...
-
Page 3: Features And Technical Data
SATA, the SATA Logo and/or other SATA products referenced herein are either registered trade- marks or trademarks of SATA GmbH & Co. KG in the U.S. and/or other countries. The names of companies and products mentioned herein may be the trademarks of their respective owners. -
Page 4: Functional Description

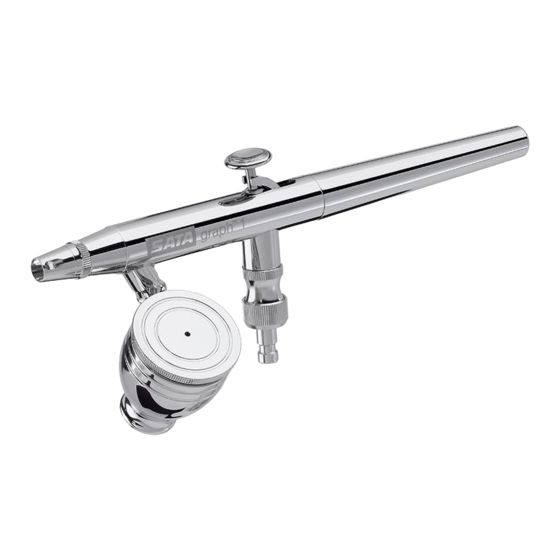

(14 to 43 psi) 2. Functional Description The SATAgraph 1 is a „Double Action“ airbrush paint spray gun allowing to control and to dose compressed air supply and material flow independently from each other. By pushing the trigger (1) the compressed air is released, and the compressed air volume is regulated. When pulling back the trigger (1), the needle is pulled out of the paint nozzle, and material flow is released. - Page 5 Failure to respect this safety warning may result in damage and injuries, even death at worst. SATA does not take any responsibility for possible results of such failure. 4.1 Air pressure The operating pressure is approx.
-
Page 6: Cleaning And Maintenance
Danger of hurting at the needle tip. When foreign parts are integrated the quality level may decline and the SATA warranty expires. Nozzle sets: 134619 0,25 for SATAgraph 1 (1 groove on paint needle, paint nozzle/air cap) 134635 0,45 for SATAgraph 1 (3 grooves on paint needle, paint nozzle/air cap) 5. Cleaning and Maintenance Never use force. - Page 7 Operating Instructions SATAgraph 1 Important Notice: Gun may be cleaned with solvent or cleaning agents manually or in a conventional gun washing machine. The following actions damage the gun/system, may lead to the loss of the explosion-proofness approval and entirely annull any warranty claims:...
-
Page 8: Guarantee Conditions
Operating Instructions SATAgraph 1 8. Guarantee conditions During the period of twelve (12) months from the date of original purchase, SATA will repair or replace the product without charge for parts or labour subject to the following conditions. The warranty covers the value for production parts or defects in material during the warranty period. -
Page 9: Ec Declaration Of Conformity
Operating Instructions SATAgraph 1 9. EC Declaration of Conformity Manufacturer: SATA GmbH & Co. KG Domertalstrasse 20 D-70806 Kornwestheim We hereby declare that the product named in the following, on the basis of its conception, construc- tion and type of construction in the model we have brought on the market, corresponds to the funda-...
