INSTALLATION INSTRUCTIONS

Designed to mount to a mud ring w/ 2.75" spaced ears, screws provided
à Ã
Also fits a 3.5" trade size octagon box
à Ã
Use model #SWX-299 trim ring to mount sensor directly to a 4.0" octagon box, handy box, or to a single
à Ã
gang mudring.
TESTING & TROUBLESHOOTING
TEST MODE
A test mode with a 5 second time delay is provided in order to efficiently perform walk
testing. The sensor will blink White on any detected occupancy (PIR or Acoustic), although
its time delay will only be reset by a PIR event. Note that while in test mode all LED
activity related to ambient light override (photocell) functionality is overridden.
TO PUT A SENSOR IN TEST MODE FOR 10 MINUTES:
Press sensor's pushbutton 2 times, then wait two seconds
à Ã
Press button 1 time to start test mode. After 10 minutes, the sensor's time delay will
à Ã
revert to previous setting

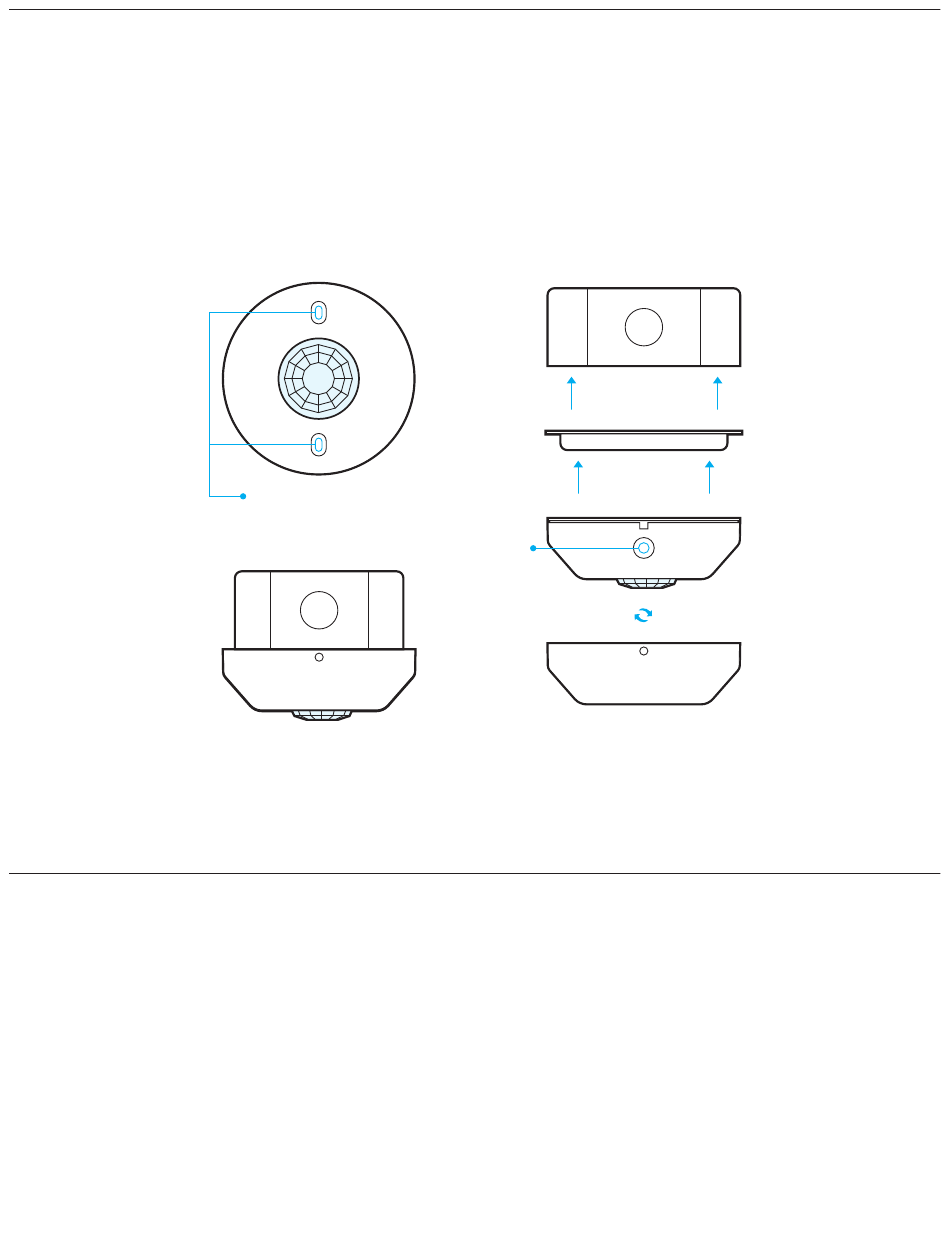

FRONT
SENSOR
SCREW HOLES FOR DIRECTLY MOUNTING TO:
• CEILING SURFACE
• 3-1/2" (TRADE SIZE) OCTAGON BOX
• MUD RING WITH 2-3/4" SPACED EARS
SIDE
4" JUNCTION BOX
MUDRING
SENSOR
PROGRAMMING
BUTTON
SENSOR MOUNTED
DIRECTLY TO
3.5" TRADE SIZE
COVER
OCTAGON BOX
AMBIENT LIGHT OVERRIDE
Do not mount sensor such that it is directly viewing into the lights it is controlling. This
will cause the measured level of controlled/artificial light to be extremely high, thus
preventing the sensor from ever turning lights off from ambient light.
RESET
To restore factory settings, press and release the pushbutton 8 times, wait 2 seconds,
then press and release the pushbutton 3 times again.
