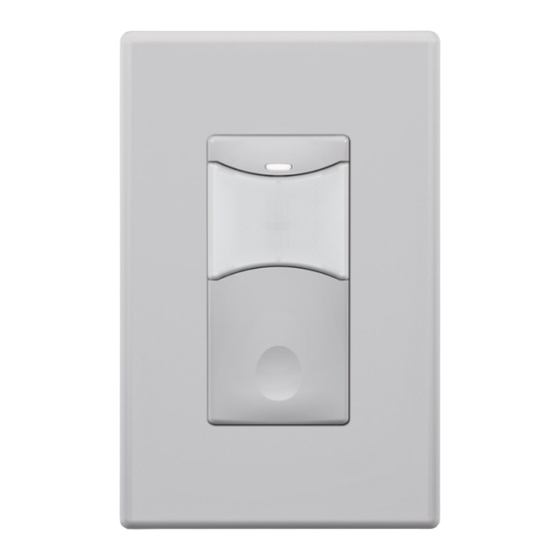

SENSORWORX SWX-101 Series Installation & Operation Instructions

MODEL # PIR
SWX-101-xx* •
SWX-103-xx •
SWX-104-xx •
SWX-111-xx •
SWX-113-xx •
SWX-121-xx •
SWX-123-xx •
SWX-124-xx •
SWX-131-xx •
SWX-133-xx •
* xx = color (WH, IV, AL, GY)
OVERVIEW
SENSORWORX wall switch sensors detect movement in the infrared energy that
radiates from occupants as they move within the devices field-of-view. Once occupancy
is identified, the sensor's internal relay switches power on to the connected lighting.
Units can also be configured to operate in Vacancy Mode (e.g., require lights be manually
switched on). Once lights are on and if equipped with passive dual technology (PIR/
Acoustic), the unit's microphone is enabled to further enhance detection. An internal timer
is set to keep lights on during brief periods of inactivity and is reset every time occupancy
is signaled by either the passive infrared or acoustic detection technologies. Ambient
daylight detection can also be enabled in the unit so that lights are held off in rooms with
sufficient light contribution from windows or skylights.
FEATURES
ELECTRICAL FEATURES
Interchangeable Line & Load Wires -
à Ã
Impossible to Wire Backwards
Accommodates Neutral (3-wire)
à Ã
and No-Neutral (2-Wire) Installation
Electronically Timed Switching
à Ã
Ensures Long Relay Life
Compatible with LED, Fluorescent
à Ã
and Incandescent Lighting
Meets NEC Guidelines Regarding
à Ã
Current Leakage
ACOUSTIC PHOTOCELL DEFAULT MODE
•
•
•
•
•
• •
• •
PHYSICAL FEATURES
Enclosure is 25-40% Shallower than
à Ã
Other Sensors (< 1" depth into wallbox)
Unique Bat-Wing Shaped Lens Provides
à Ã
Enhanced Peripheral Detection
Self-Grounding Mounting Strap
à Ã
Modern Look and Intuitive
à Ã
Easy-Tap Button
Rugged Vandal Resistant Lens
à Ã
Settings are Adjustable Without Removing
à Ã
Cover Plate
WALL SWITCH SENSORS
INSTALLATION & OPERATION INSTRUCTIONS
OCC
SPECIFICATIONS
VAC
ELECTRICAL
VAC
OPERATING VOLTAGE
OCC
120/277 VAC, 50/60 Hz
VAC
LOAD RATINGS
OCC
MAX: 800W @ 120VAC
1200W @ 277VAC
VAC
MIN: None
VAC
LOAD TYPES
OCC LED Driver/Lamps
CFL, Electronic/Magnetic Ballasts
VAC
(Fluorescent)
Tungsten (Incandescent)
PHYSICAL
SIZE
2.74"H x 1.68"W x 1.39"D
(6.96 x 4.27 x 3.53 cm)
Not Including Mounting Strap
WEIGHT
4.5 oz
MOUNTING
Single Gang Switch Box
LINE VOLTAGE
ENVIRONMENTAL
OPERATING TEMP
32°F to 122°F (0°C to 50°C)
RELATIVE HUMIDITY
0-95% Non-Condensing,
Indoor Use Only
CODE COMPLIANCE
Wall Switch sensors can be used to
meet many requirements of ASHRAE
90.1(2016), IECC (2015), and Title 24
(2016). In particular, Manual On
(e.g., Vacancy) operation is prescribed
for many building spaces.
OPERATIONAL FEATURES
Wall-To-Wall Passive Infrared
à Ã
Small Motion Detection
Passive Acoustic Detection (Optional) -
à Ã
Prevents False Offs when No Motion is Present
100% Passive Detection Methods -
à Ã
No Interference Potential from External Devices
Ambient Daylight Override Mode Increases
à Ã
Energy Savings
Configurable Time Delays and Operating Modes
à Ã
Blue Locator LED when Ligths are Off
à Ã
