Summary of Contents for SeeEyes SC-04HDS

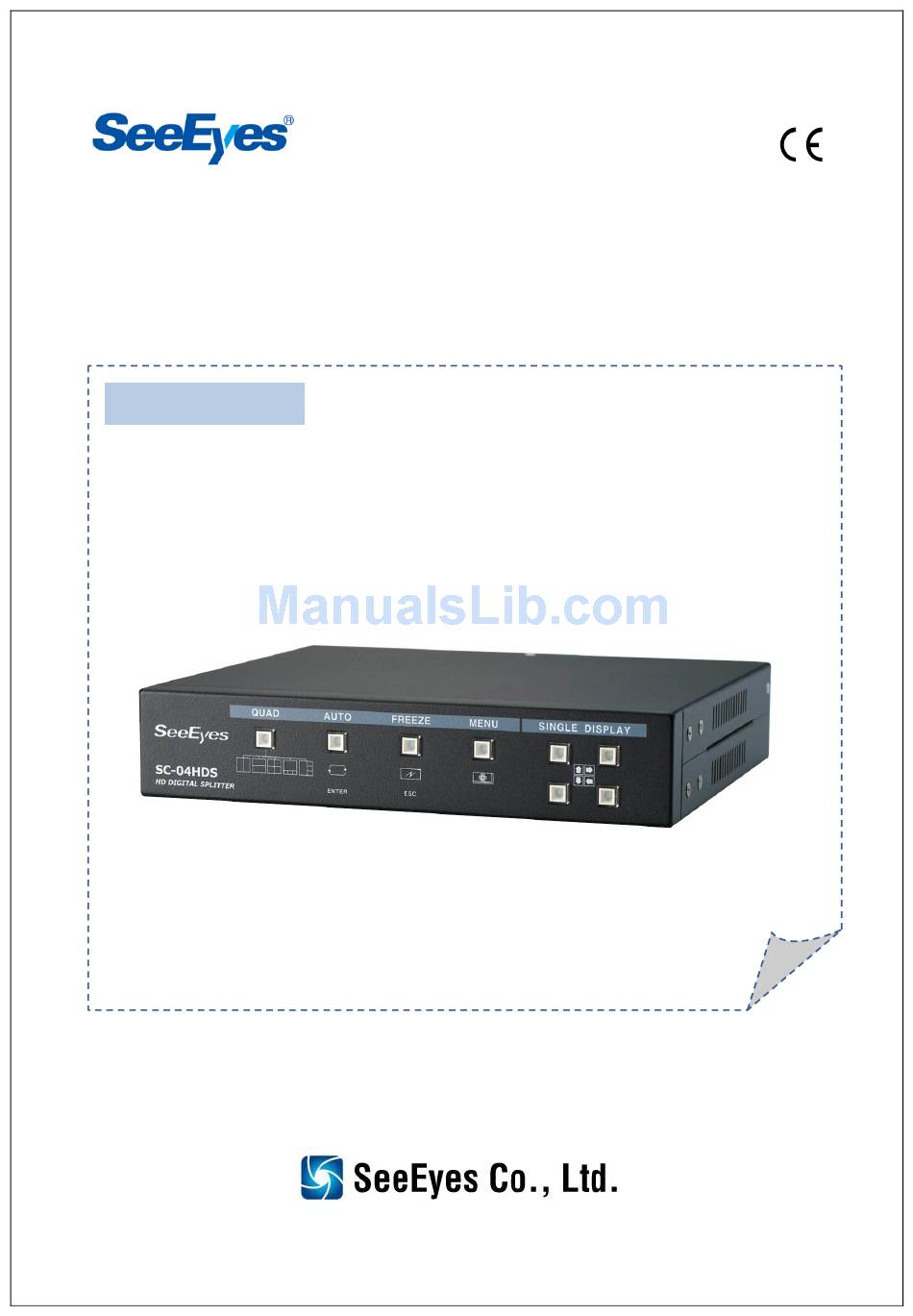

- Page 1 DIGITAL FULL HD SPLITTER SC-04HDS(H) User's Manual SC-04HDS(H)
-
Page 2: Precaution And Safety Guidelines
Precaution and Safety Guidelines Please read this user’s manual thoroughly prior to use the unit for its easy and convenient use. • Do not install the product in the following places: extremely low or high temperature conditions; places exposed to rain, snow, or high humidity; places containing or exposed to oil and gas;... - Page 3 1. Introduction 1-1. Overview The SC-04HDS, a Digital Full HD Splitter, offers a high resolution display for video signals received from max. four SD (standard definition) CCTV cameras with 720*480 Pixel. And it splits the screen in various formats from full screen to 4 screens display mode without deterioration.
-
Page 4: Product Parts And Peripheral Device Connection
3. Product Parts and Peripheral Device Connection 3-1. Name of Parts and Function 3-1-1. SC-04HDS(H) ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ 각 채 널 에 해 당 되 는 버 튼 을 누 르 면 해 당 채... - Page 5 3-1-2. SC-04HDS rear side (connection port) ① ② ③ ④ ⑤ ⑥ ⑦ ⑤ ⑧ ⑨ ① VIDEO INPUT: Connect the four (4) cameras ② VIDEO OUT (Loop Through): It distributes the four (4) input video signals to other devices by loop trough.
- Page 6 - Control DATA Code ASCII Function Remarks 0x30 ~ 0x33 0 ~ 3 Display in Full CH 01 ~ 04 Display Control 0x47 Multi Screen 〃 0x48 Menu 0x49 Enter 0x4A 0x50 Display 4ch in split mode Display Control 0x51 Display 2 ch in vertical split 〃...
- Page 7 ※ When an Alarm is entered, an “A” appears in the video which have received the alarm, in the place in which the channel loss is indicated. ※ The Alarm input will not operate if an alarm signal is entered into a lost channel.
- Page 8 ⑦-7. Function The relay maintains closed when any external input is ON, that is, when the Alarm Input port is produced a short circuit. The relay maintains open when any external data is off or the alarm input is off after the alarm time is ended.
-
Page 9: Specification
4. Specification MODEL SC-04HDS INPUT 75Ω 1 Vp-p(BNC-F) X 4 Looped through output 75Ω 1 Vp-p(BNC-F) X 4 OUTPUT HDMI X 1, D-SUB X 1, BNC-F X 2 Full HD 1920x1080P @50/60Hz 1920x1080i @50/60Hz HDMI WSXGA 1680x1050 @60Hz VIDEO Resolution... -
Page 10: Menu Setup
5. Menu Setup • How to setup the Menu Press Menu button, and the menu will be displayed. Please refer to the button function of SC-04HDS front side (3-1-1). ※ Log-in Window: If you have set the password, the below log-in window appears. -
Page 11: Date Display Format
Japanese by pressing ◀▶ buttons. 5-2-2. System ID When controlling SC-04HDS at long distance or short distance, you can use the System Id. You can insert from 1 to 255. Press Menu Button > ◀▶ buttons, and then press [ENTER]> button in System set and ▲▼... -
Page 12: Default Set
5-2-5. Buzzer In this menu, it is possible to set the buzzer when button is used, the motion is detected and video signal loss is detected. Press Menu > press ◀▶ buttons and [ENTER] in System set > press ▲▼ buttons and [ENTER] in Buzzer >... - Page 13 5-3-2. Channel Name Display In this menu, it is possible to set the channel name indication. Press Menu > press ◀▶ buttons and [ENTER] in Display set > press ▲▼ buttons and [ENTER] in Channel name display > Press ◀▶ buttons to change the set value.
-
Page 14: Channel Select
5-4-1. Channel Select You can select the channel you want to set up. Press Menu > press ◀▶ buttons and [ENTER] in Channel set > press ▲▼ buttons and [ENTER] in Channel select > Press ◀▶ buttons to select the channel you want to set up. - Page 15 5-4-4. Contrast It sets the Contrast of each channel (0~99). Press Menu > press ◀▶ buttons and [ENTER] in Channel set > press ▲▼ buttons and [ENTER] in Contrast > Press ◀▶ buttons to set up the value of contrast. 5-4-5.
-
Page 16: Alarm Input
5-4-7. Alarm Input You can set up the Alarm Input/Output. Press Menu button > ◀▶ buttons, then press [ENTER]> ▲▼ buttons in channel setup mode. And then, in alarm mode, press [ENTER] > ◀▶ buttons and select whether you want to use the alarm function or not. 5-5. -
Page 17: Password Enable
5-5-1. Password Enable You can set the password you want to use. Use this menu in case that only the authorized administrator can handle the menu setting. In case of selecting the password use mode, whenever you enter to the menu, the Login window appears and you should enter the password set. Press Menu >... -
Page 18: Connection Diagram
6. Connection Diagram... -
Page 19: Warranty Certificate
7. Warranty Certificate This product has passed thorough quality control and test, and if this gets broken during normal use, we provide 12 months warranty service. Model No. Serial No. Distributor Date you purchased Place you purchased Warranty Period One (1) year from the date of purchase Name Purchaser Address...
