Summary of Contents for Gardena 8200

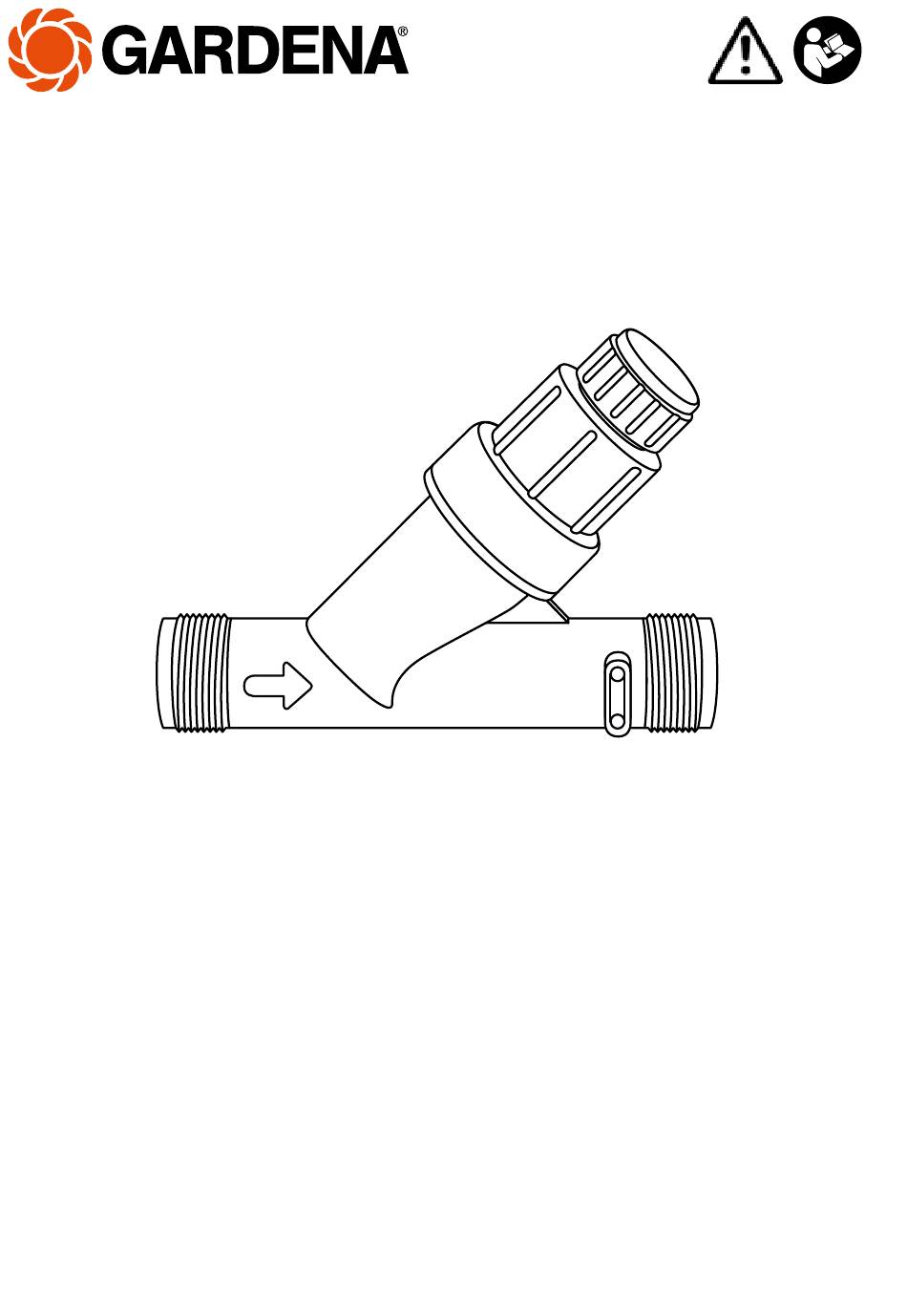

- Page 1 Operator‘s manual Art. 8200 Pressure Regulator 8200-20.962.01/0323 © GARDENA Manufacturing GmbH D-89079 Ulm https://www.gardena.com...
- Page 2 6.1. Gardena service store ........
- Page 3 1.1. To install the pressure regulator above ground In case of an installation above ground, you need one GARDENA Connector 25 mm x 1“ female thread (art. 2762) per side in order to connect the pressure regulator to the GARDENA Connecting Pipes of 25 mm (Art.
- Page 4 6 cm 6 cm 3. On each side, connect a connector (art. 2763) to the connecting pipes of the irrigation sys- tem) by 6 cm. Make sure to insert the connecting pipes into the connectors 4. Place the valve shaft on the coarse gravel layer After a few centimetres you will feel a resistance (sealing ring).
- Page 5 2. MAINTENANCE 2.1. To flush the pressure regulator We recommend flushing the pressure regulator once a month. 1. Close the water supply. 2. Remove the cap 7. Place the pressure regulator with the filter pointing upwards in the valve shaft at the level of the side inlets.
- Page 6 6.1. Gardena service store The pressure regulator as well as the irrigation system must be cleared of water before the frost period. Find your local GARDENA service store on: We recommend the use of the Drain Valve Set art. no. 2770-20.
