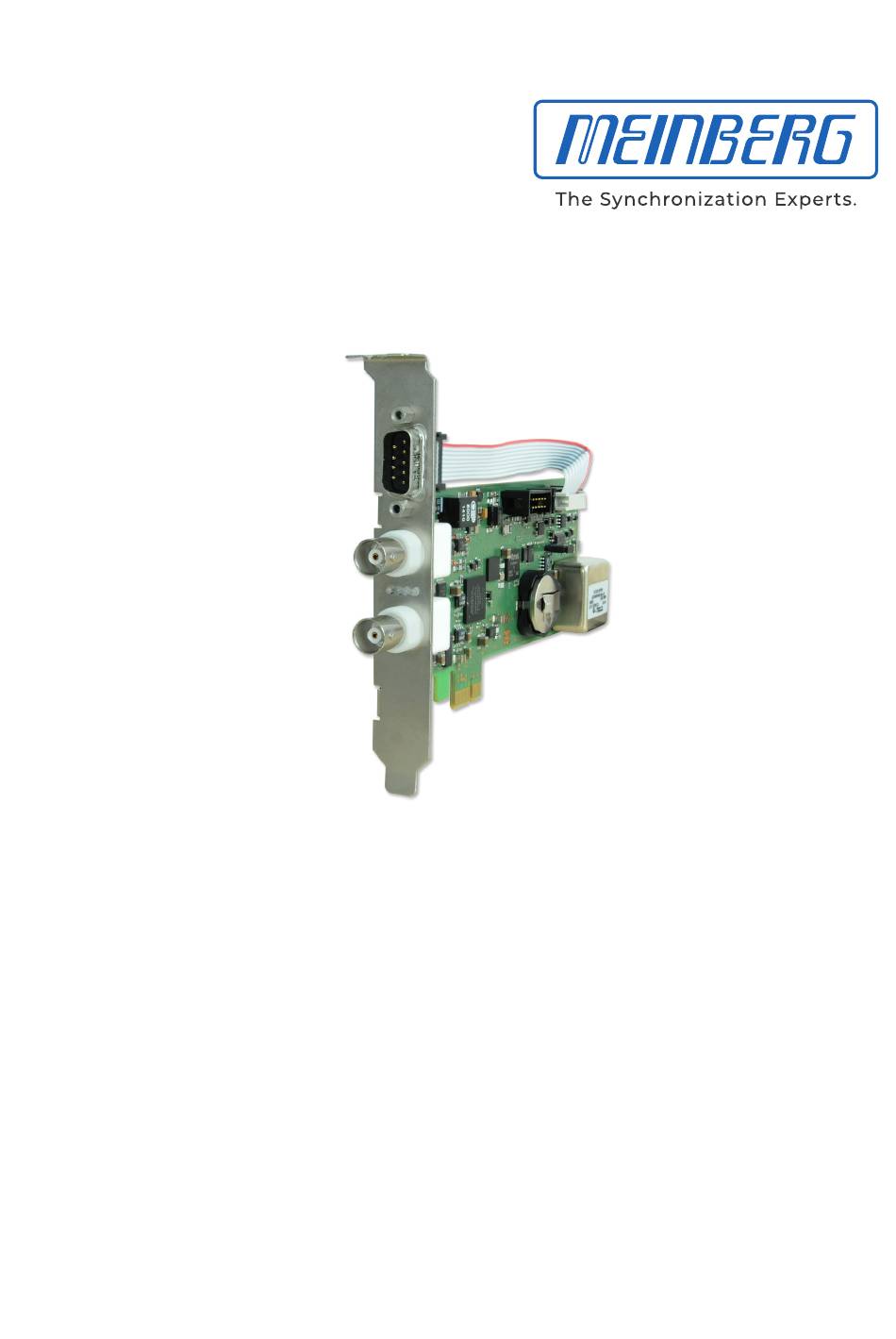

- Page 1 MANUAL TCR180PEX IRIG Code controlled Radio Clock 12th August 2020 Meinberg Funkuhren GmbH & Co. KG...
-
Page 3: Table Of Contents
..........12.3.1 Format of the Meinberg Standard Time String . - Page 4 ......... . 13 Declaration of Conformity Date: 12th August 2020 TCR180PEX...
-
Page 5: Imprint
1 Imprint 1 Imprint Meinberg Funkuhren GmbH & Co. KG Lange Wand 9, 31812 Bad Pyrmont / Germany Phone: + 49 (0) 52 81 / 93 09 - 0 Fax: + 49 (0) 52 81 / 93 09 - 230 Internet: https://www.meinbergglobal.com... -
Page 6: Safety Instructions For Building-In Equipment
This product is handled as a B2B category product. In order to secure a WEEE compliant waste disposal it has to be returned to the manufacturer. CE label This device follows the provisions of the directives 93/68/EEC Date: 12th August 2020 TCR180PEX... -
Page 7: Safety Hints Tcr180Pex
2 Safety instructions for building-in equipment 2.2 Safety Hints TCR180PEX This building-in equipment has been designed and tested in accordance with the requirements of Standard IEC60950-1 "Safety of Information Technology Equipment, including Electrical Business Equipment". During installation of the building-in equipment in an end application (i.e. PC) additional requirements in accordance with Standard IEC60950-1 have to be taken into account. -
Page 8: Cabling
There is a Danger of explosion if the lithium battery is replaced incorrectly. Only identical batteries or batteries recommended by the manufacturer must be used for replacement. The waste battery has to be disposed as proposed by the manufacturer of the battery. Date: 12th August 2020 TCR180PEX... -
Page 9: Tcr180Pex Features
The board TCR180PEX has been designed as a "low profile" board for computers with PCI Express interface. Data transfer to the computer is done via a single PCI Express lane (x1 board). The TCR180PEX card decodes and generates modulated (AM) and unmodulated (DC Level Shift, DCLS) IRIG-A/B/G, AFNOR NF S87-500, IEEE C37.118, or IEEE 1344 time codes. -
Page 10: Block Diagram Tcr180
4 Block diagram TCR180 Date: 12th August 2020 TCR180PEX... -
Page 11: Master Oscillator
5 Master oscillator 5 Master oscillator By default the TCR180PEX is equipped with a TCXO (Temperature Compensated Xtal Oscillator) as master oscillator to provide a good time accuracy and frequency stability. As long as an input signal is supplied the frequency of the oscillator is adjusted from the input signal, and if the input signal is disconnected afterwards the card can still provide accurate time for a certain holdover interval. -
Page 12: Functional Description Of Receiver
So care must be taken that the on-board clock has been set to the correct date. The on-board date and time can be adjusted by sending a Meinberg Standard Time string to the serial interface COM0, or via the PCI bus by using the utility programs included in the driver software package. - Page 13 Most IRIG codes don’t include an announcement flag for the DST change, or for the for the insertion of a leap second, so the TCR180PEX will switch into free wheeling mode on such event, and resynchronize a few seconds later.
- Page 14 The board TCR180PEX decodes the following formats: Please note: all "A" und "G" Timecodes are only available after warmed up phase of the oscillator! A002: 1000pps, DC Level Shift pulse width coded, no carrier BCD time of year A132: 1000pps, amplitude modulated sine wave signal, 10 kHz carrier frequency...
-
Page 15: Input Signals
The time code format has to be configured using the monitor software: if an amplitude-modulated signal (IRIG- A/B/G, AFNOR NF S-87500, IEEE C37.118 oder IEEE 1344) is configured then the input signal has to be supplied to the upper BNC connector in the TCR180PEX’s bracket. A coaxial, shielded or twistet pair cable should be used. -
Page 16: Input Impedance For Modulated Signals
The driver software shows a bar chart for evaluation of the signal level at the receiver input. The following detail of the TCR180PEX’s placeplan of shows the possible jumper settings and the associated input impedance: n o J u m p e r : 5 k Ω... -
Page 17: Photocoupler Input
(60 mA). The forward current should not be limited to a value of less than 10 mA to ensure safe switching of the photocoupler. TCR180PEX Date: 12th August 2020... -
Page 18: Functionality Of The Generator
7 Functionality of the generator The time code generator of TCR180PEX is based on a DDS (Direct Digital Synthesis) frequency generator which derives the sine carrier of the modulated code from the reference clock of the master oscillator. The modulation of carrier amplitude (modulated codes) or pulse duration (unmodulated, DC level shift codes) is synchronized to the generated pulse-per-second (PPS) signalderived from the software clock. -
Page 19: Pulse Outputs
7.2 Pulse outputs The pulse generator of TCR180PEX provide three independent channels (PPO0, PPO1, PPO2). All of these TTL outputs can be mapped to pins at the 9-pin connector at the rear slot cover by using a DIP switch. Each output can be switched according to different, predefined conditions. -
Page 20: Asynchronous Serial Port
7.3 Asynchronous serial port Two asynchronous serial interfaces (RS-232) labelled COM0 and COM1 are provided by the TCR180PEX. Only COM0 is available at the rear panel slot cover, COM1 is accessible via the second ribbon cable connector on the card. The monitor program can be used to configure the outputs. In the default mode of operation, the serial outputs are disabled until the receiver has synchronized after power-up. -
Page 21: Enabling Of Outputs
7.6 DCF77 Emulation The time code receiver TCR180PEX generates TTL level time marks (active HIGH) which are compatible with the time marks broadcast by the German long wave transmitter DCF77. This long wave transmitter which is installed in Mainflingen near Frankfurt/Germany transmits the legal reference time of the Federal Republic of Germany: time of day, date of month and day of week in BCD coded second pulses. -
Page 22: Time Capture Inputs
7.7 Time capture inputs The TCR180PEX provides two time capture inputs called User Capture 0 and 1 (CAP0 and CAP1) which can be mapped to pins at the 9 pin connector in the rear panel. These inputs can be used to time stamp trigger slopes of asynchronous external hardware signals. -
Page 23: Connectors And Leds In The Bracket
Telegramm consistent red: Telegramm inconsistent yellow (flashing): Jitter to large red: The internal timing of TCR180PEX is in holdover mode off: The internal timing of TCR180PEX is synchronized to the received time code (Lock) TCR180PEX Date: 12th August 2020... -
Page 24: Pin Assignments Of The 9Pin D-Sub Connector
DCLS out (A) RS422 SUB-D SUB-D Multi.Ref. Port Standard Port connection: connection: Multiref Port Standard Port 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 Date: 12th August 2020 TCR180PEX... -
Page 25: D-Sub Pin Assignment Of Multiref Port
DIP 6 must be OFF SUB-D SUB-D Multi.Ref. Port Standard Port connection: connection: Multiref Port Standard Port 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 TCR180PEX Date: 12th August 2020... -
Page 26: Putting Into Operation
IRIG telegram containes only the day of year (1...366) instead of a complete date. To ensure correct function of TCR180PEX, the date stored in the realtime clock of the board must be set when using IRIG codes therefore. This setting can be done by a terminal software also. -
Page 27: Firmware Updates
The contents of the program memory will not be modified until the loader program has sent the command to erase the flash memory. So if the button has been pressed accidentally, the system will be ready to operate again after the computer has been turned off and then on again. TCR180PEX Date: 12th August 2020... -
Page 28: Technical Specification Tcr180Pex
11 Technical specification TCR180PEX RECEIVER INPUT: AM-input (BNC-connector): insulated by a transformer impedance settable 50 , 600 , 5 k input signal: 600 mV to 8 V (Mark) other ranges on request DC Level Shift input (D-Sub-connector): insulated by photocoupler... - Page 29 11 Technical specification TCR180PEX for GI 50/125 m or GI 62,5/125 m gradient fiber PULSE OUTPUTS: three programmable outputs, TTL level Default settings: active only ’if sync’ PPO_0: change of seconds (PPS) pulse duration 200 msec valid on rising edge...
- Page 30 flow and generates a reset in case of error detection INITIALIZATION: software and realtime clock can be set by a serial Meinberg Standard Telegram via COM0 or the PCI-Express bus BUS-INTERFACE: Single lane (x1) PCI Express (PCIe) Interface compatible to PCI Express specification r1.0a...
-
Page 31: Technical Appendix Tcr180Pex
Hundreds of different time codes were formed, some of which were standardized by the "Inter Range Instrumentation Group" (IRIG) in the early 60´s. The TCR180PEX supports decoding and generating of IRIG-A, IRIG-B, IRIG-G, AFNOR NF S87-500, IEEE C37.118 and IEEE 1344. -
Page 32: Time Code Format
12.2 Time code Format 12.2.1 IRIG Standard Format Date: 12th August 2020 TCR180PEX... -
Page 33: Afnor Standard Format
12 Technical appendix TCR180PEX 12.2.2 AFNOR Standard Format TCR180PEX Date: 12th August 2020... -
Page 34: Time Strings
12.3 Time Strings 12.3.1 Format of the Meinberg Standard Time String The Meinberg Standard Time String is a sequence of 32 ASCII characters starting with the STX (start-of-text) character and ending with the ETX (end-of-text) character. The format is: <STX>D:dd.mm.yy;T:w;U:hh.mm.ss;uvxy<ETX>... -
Page 35: Format Of The Meinberg Capture String
12 Technical appendix TCR180PEX 12.3.2 Format of the Meinberg Capture String The Meinberg Capture String is a sequence of 31 ASCII characters terminated by a CR/LF (Carriage Return/- Line Feed) combination. The format is: CHx_tt.mm.jj_hh:mm:ss.fffffff <CR><LF> The letters printed in italics are replaced by ASCII numbers whereas the other characters are part of the time string. -
Page 36: Format Of The Uni Erlangen String (Ntp)
‘ ‘ (space, 20h) no leap second is inserted bbb.bbbb latitude of receiver position in degrees leading signs are replaced by a space character (20h) latitude, the following characters are possible: ‘N’ north of equator Date: 12th August 2020 TCR180PEX... - Page 37 12 Technical appendix TCR180PEX ‘S’ south d. equator lll.llll longitude of receiver position in degrees leading signs are replaced by a space character (20h) longitude, the following characters are possible: ‘E’ east of Greenwich ‘W’ west of Greenwich hhhh altitude above WGS84 ellipsoid in meters leading signs are replaced by a space character (20h) <ETX>...
-
Page 38: Format Of The Sat Time String
‘!’ announcement of start or end of daylight saving time ‘ ‘ (space, 20h) nothing announced <CR> Carriage Return, ASCII Code 0Dh <LF> Line Feed, ASCII Code 0Ah <ETX> End-Of-Text, ASCII Code 03h Date: 12th August 2020 TCR180PEX... -
Page 39: Format Of The Computime Time String
12 Technical appendix TCR180PEX 12.3.5 Format of the Computime Time String The Computime time string is a sequence of 24 ASCII characters starting with the T character and ending with the LF (line feed, ASCII Code 0Ah) character. The format is: T:yy:mm:dd:ww:hh:mm:ss<CR><LF>... -
Page 40: Format Of The Spa Time String
(00..59) seconds (00..59, or 60 while leap second) fff milliseconds (000..999) Checksum. EXCLUSIVE-OR result of the previous characters, displayed as a HEX byte (2 ASCII characters 0..9 or A..F) <CR> Carriage Return ASCII Code 0Dh Date: 12th August 2020 TCR180PEX... -
Page 41: Format Of The Racal Standard Time String
12 Technical appendix TCR180PEX 12.3.7 Format of the RACAL standard Time String The RACAL standard Time String is a sequence of 16 ASCII characters terminated by a X (58h) character and ending with the CR (Carriage Return, ASCII Code 0Dh) character. The format is: <X><G><U>yymmddhhmmss<CR>... -
Page 42: Format Of The Ion Time String
(00..23) minutes (00..59) seconds (00..59, or 60 while leap second) Quality indicator (space) Time Sync (GPS lock) (?) no Time Sync (GPS fail) <CR> Carriage-return (ASCII code 0Dh) <LF> Line-Feed (ASCII code 0Ah) Date: 12th August 2020 TCR180PEX... -
Page 43: Pci Express (Pcie)
12 Technical appendix TCR180PEX 12.4 PCI Express (PCIe) The main technical inovation of PCI Express is a serial data transmission compared to the parallel interfaces of other computer bus systems like ISA, PCI and PCI-X. PCI Express defines a serial point-to-point connection, the so-called Link:... -
Page 44: Content Of The Usb Stick
12.5 Content of the USB stick Besides this manual, the provided USB stick includes a setup program for the monitor software MBGMON. This utility can be used to configure Meinberg re- ceivers via their serial ports and to display status information of the module. -
Page 45: Declaration Of Conformity
13 Declaration of Conformity 13 Declaration of Conformity Konformitätserklärung Doc ID: TCR180PEX-2019-03-22 Hersteller Meinberg Funkuhren GmbH & Co. KG Manufacturer Lange Wand 9, D-31812 Bad Pyrmont erklärt in alleiniger Verantwortung, dass das Produkt, declares under its sole responsibility, that the product...
