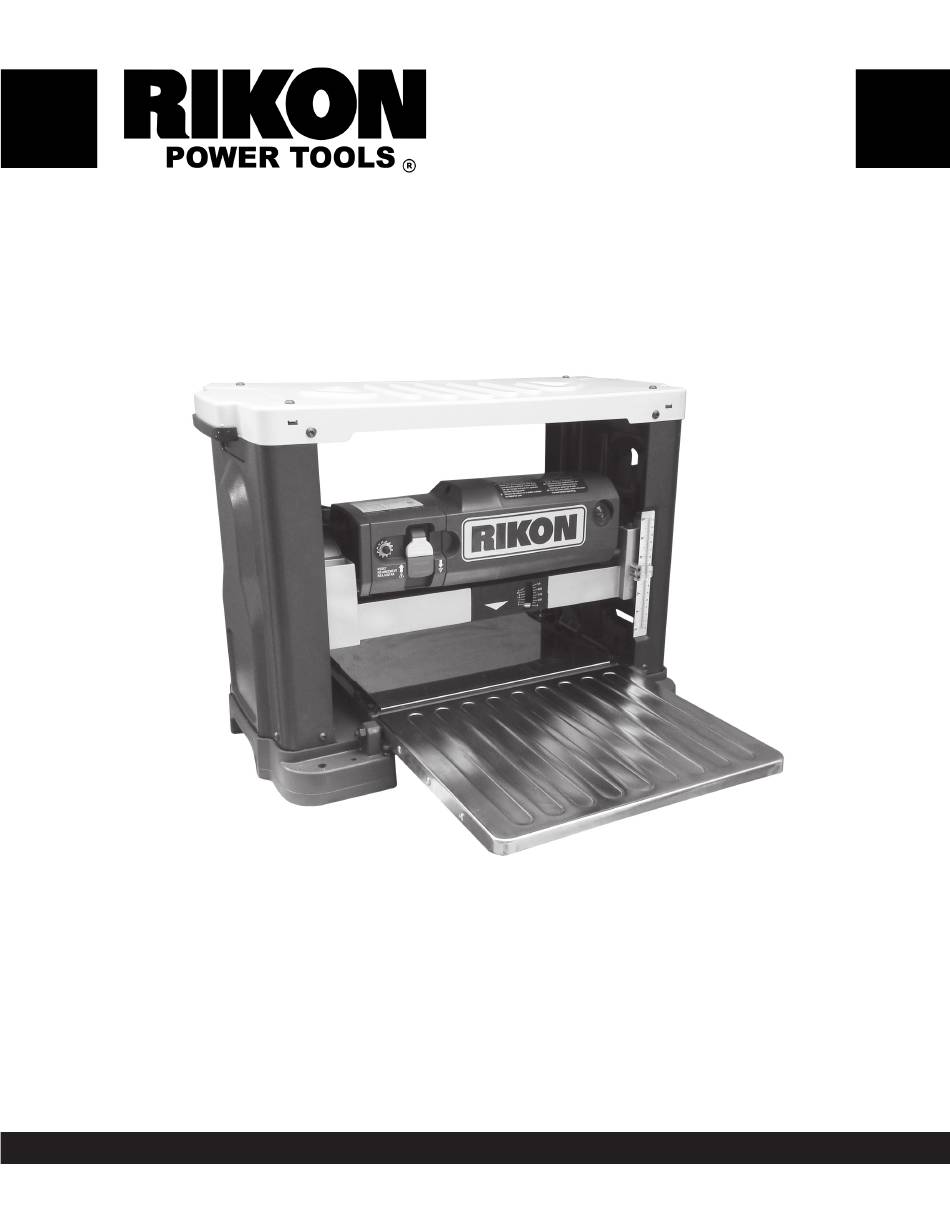

25-130H
13" Thickness Planer
with Helical-Style Cutterhead
Operator's Manual
Record the serial number and date of purchase in your manual for future reference.
The serial number can be found on the specification label on the rear of your machine.
Serial Number: _________________________
Date of purchase: _________________________
For technical support, email techsupport@rikontools.com - For parts questions, email parts@rikontools.com
www.rikontools.com
25-130HM3
Advertisement
Table of Contents
Related Manuals for Rikon Power Tools 25-130H
Summary of Contents for Rikon Power Tools 25-130H
- Page 1 25-130H 13” Thickness Planer with Helical-Style Cutterhead Operator’s Manual Record the serial number and date of purchase in your manual for future reference. The serial number can be found on the specification label on the rear of your machine. Serial Number: _________________________ Date of purchase: _________________________ For technical support, email techsupport@rikontools.com - For parts questions, email parts@rikontools.com...
-
Page 2: Table Of Contents
Changes and improvements may be made at any time, with no obligation on the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety,... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. There are certain applications for which this tool was designed. - Page 4 SAFETY INSTRUCTIONS 12. KEEP PROTECTIVE GUARDS IN PLACE AND IN 25. ALWAYS WEAR A DUST MASK TO PREVENT WORKING ORDER. INHALING DANGEROUS DUST OR AIRBORNE PARTICLES, including wood dust, crystalline silica dust 13. AVOID ACCIDENTAL STARTING. Make sure that and asbestos dust. Direct particles away from face and the power switch is in the “OFF”...
-
Page 5: Electricals & Wiring Diagram
SAFETY INSTRUCTIONS EXTENSION CORDS ELECTRICAL SAFETY THE USE OF AN EXTENSION CORD THIS TOOL MUST BE GROUNDED WITH THIS MACHINE IS NOT RECOMMENDED. For WHILE IN USE TO PROTECT THE OPERATOR FROM best power and safety, plug the machine directly into a ELECTRIC SHOCK. - Page 6 SAFETY INSTRUCTIONS SPECIFIC SAFETY INSTRUCTIONS FOR PLANERS This machine is intended for the surfacing of natural, solid woods. The permissible workpiece dimensions must be observed (see Technical Specifications). Any other use not as specified, including modification of the machine or use of parts not tested and approved by the equipment manufacturer, can cause unforeseen damage and invalidate the warranty.
-
Page 7: Getting To Know Your Machine
SEE PAGES 18 - 21 FOR THE PARTS DIAGRAMS AND PARTS LISTS CONTENTS OF PACKAGE Model 25-130H Planer is shipped complete in one box. UNPACKING AND CLEAN-UP 1. Carefully remove all contents from the shipping carton. Compare the contents with the list of contents to make sure that all of the items are accounted for, before discarding any packing material. -
Page 8: Installation
THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE 'OFF' POSITION UNTIL ASSEMBLY IS COMPLETE. NOTE: The 25-130H Planer requires minimal as- TOOLS REQUIRED FOR ASSEMBLY sembly, and therefore the machine can be mounted... -
Page 9: Assembly
ASSEMBLY INSTALLING THE HANDWHEEL KNOB for Height Setting of the Thickness Table 1. Remove the depth adjustment handwheel by loosening the screw (A), with the supplied 4mm hex wrench. FIG. 1. 2. Install the knob (B) onto the handwheel with the supplied screw (C). 3. -
Page 10: Adjustments
ADJUSTMENTS LEVELING THE TABLE EXTENSIONS 1. The infeed and outfeed table extensions are attached to the planer. Shipped in a folded, upright position, the table extensions must be in the down position before planing can begin. For accurate planing, the table extensions must be level with the planer table. - Page 11 ADJUSTMENTS REPLANING using the REPEAT CUT 1. Remove the screws to take LOCK off the handwheel (1 screw), pull off the indicator knob, remove the right side panel (4 screws) and top cover (4 screws). FIG. 5. STEP BLOCK 2. Lower the cutterhead assem- bly until the stop screw stops on STOP the step block.
-
Page 12: Operation
OPERATION This machine is intended for surface thickness planing of natural, solid woods to a desired thickness, while creating a smooth, level surface. Thickness of each cut will depend on type of wood (hardwood versus soft- wood), width of workpiece, straightness, dryness, and grain composition. Whenever working with a new type of wood, make thin test cuts on a scrap piece of wood first to determine potential problems with the work- piece. - Page 13 OPERATION POWER SWITCH The planer is turned on by flipping the switch into the up position and it is turned off by flipping the switch in the down position. This planer is also equipped with a special lockout toggle switch that prevents unauthorized use.
-
Page 14: Maintenance
MAINTENANCE THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE 'OFF' POSITION UNTIL ADJUSTMENTS ARE COMPLETE. ROTATING OR REPLACING KNIFE INSERTS This machine has a cutterhead with 6 rows of High Speed Steel knife inserts. Each of the 26 inserts on the cutterhead are indexed and have two sharpened sides. - Page 15 MAINTENANCE POSITIONING SHARP EDGE (S) FLAT STAR EDGE SCREW INDICATOR ROTATE INSERT TO INSTALL A MARK FIG. 11 NEW SHARPENED EDGE THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE 'OFF' POSITION UNTIL ADJUSTMENTS ARE COMPLETE. BRUSH REPLACEMENT Brush life will vary depending on the load placed on the motor.
- Page 16 MAINTENANCE Turn the power switch “OFF” and disconnect the plug from the outlet prior to adjusting or maintaining the machine. DO NOT attempt to repair or maintain the electrical components of the motor. Contact a qualified service technician for this type of maintenance. 5.
-
Page 17: Troubleshooting
TROUBLESHOOTING FOR YOUR OWN SAFETY, ALWAYS TURN OFF AND UNPLUG THE MACHINE BEFORE CARRYING OUT ANY TROUBLESHOOTING. SYMPTOM POSSIBLE CAUSES SOLUTIONS Planer will not start. 1. No power 1. Check power source, plug and wiring. 2. Blown shop fuse 2. Check fuse, replace if it is blown. 3. -
Page 18: Parts Diagrams & Parts Lists
PARTS DIAGRAM... - Page 19 PARTS LIST KEY NO. KEY NO. DESCRIPTION PART NO. DESCRIPTION PART NO. Top cover P25-130H-1 Depth gauge P25-130H-79 Hex socket button screw M6xP1.0x8L P25-130H-2 Screw M5×8L P25-130H-87 Hex socket button screw M6xP1.0x10L P25-130H-2-1 Star lock washer M5 P25-130H-88 Retainer bearing for top cover P25-130H-3 Gear Box P25-130H-89...
- Page 20 PARTS DIAGRAM...
- Page 21 PARTS LIST...
-
Page 22: Accessories
2 pre-sharpened edges ADDITIONAL PLANER ACCESSORIES For addtional accessories for use with the 25-130H thickness planer, contact your local RIKON distributor, or visit the RIKON website at www.rikontools.com. There you will find Dust Collectors, Dust Hose, Stands, Mobile Bases and other parts and accessories for the RIKON machinery in your shop. -
Page 23: Warranty
® 5-Year Limited Warranty RIKON Power Tools Inc. (“Seller”) warrants to only the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship for a period of five (5) years from the date the product was purchased at retail. This warranty may not be transferred. - Page 24 25-130H For more information: 16 Progress Road Billerica, MA 01821 877-884-5167 / 978-528-5380 techsupport@rikontools.com Link to RIKON Website www.rikontools.com 25-130HM3...
