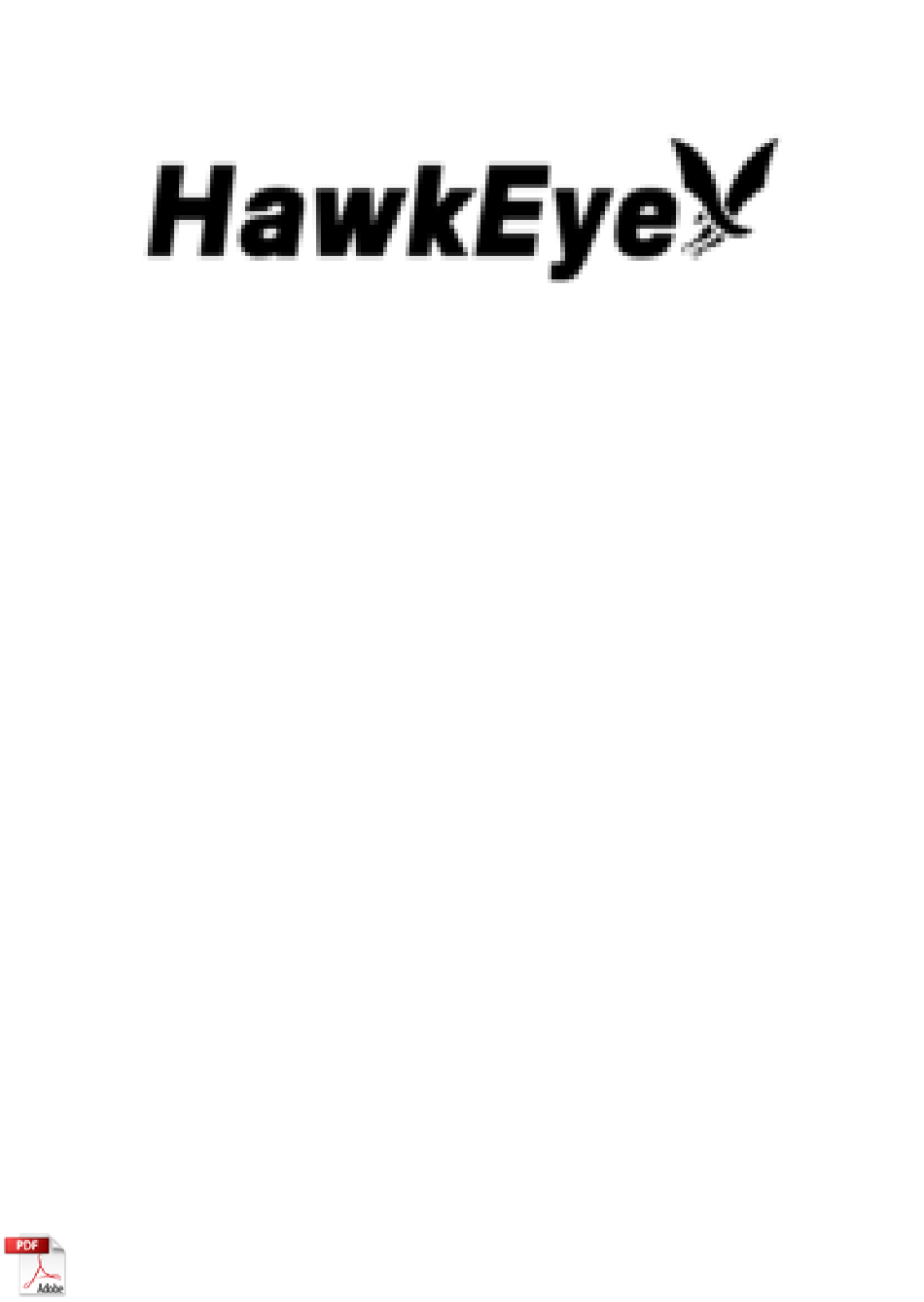

  • Page 1 FP5X Bluetooth Fish Finder User Manual...

  • Page 2: Table Of Contents

    Content 1. Foreword ..............1 2. Safety Tips ..............2 3. Packing List ............... 2 4. Function Description of each Part of the Fish Finder 3 5. Charging Steps ............3 6. Introduction to the Use of Fish Finder ....... 4 7.

  • Page 3: Foreword

    1. Foreword Thank you for purchasing our company's FP5X bluetooth fish finder. In order to ensure the correct and safe use of this product and maximize its performance, please read this manual carefully before operation。 This product is designed with a Bluetooth transfer function, which can be connected to a mobile phone.

  • Page 4: Safety Tips

    2. Safety Tips Please observe the following safety tips, otherwise it may cause equipment sensitivity decline, equipment failure, and property damage: The water depth measurement and obstacle detection functions of this device cannot be used to assist navigation on the water, so as to avoid hitting rocks, damage to the boat or personal injury.

  • Page 5: Function Description Of Each Part Of The Fish Finder

    recommended); 4. Function Description of each Part of the Fish Finder Function Function Cover Water switch Sealing ring Sonar face Bottom cover Antenna Cover nut Charging port 5. Charging Steps 5.1 Hold the lower cover and the upper cover of the fish finder with the left and right hands respectively, turn and unscrew the upper cover counterclockwise, insert the DC port of the charging cable into the charging port...

  • Page 6: Introduction To The Use Of Fish Finder

    prepared, it is recommended to use 5V1A/5V1.5A/5V2A); 5.2 When charging, the charging indicator LED (red) will flash; when the battery is fully charged, the indicator LED will always on. 5.3 Twist the upper cover back clockwise, and turn it about two turns to get it in place. At this time, the shape of the bottom cover is symmetrical on the upper and lower sides, and the threading nuts are located on the left and right sides.
  • Page 7 Method 1: Connect the fishing line to use the cast rod; Tie the fish finder, float and bait to the fishing line and put them into the water together. When the fish finder enters the water, it will automatically start working. This product uses sonar technology, the fish finder injects ultrasonic waves into the water, and the central processor of the fish finder will filter and analyze the...
  • Page 8 the fish finder to the fishing spot. 6.2 Precautions for the Use of Fish Finder 1. When the fish finder is working, do not touch the bottom of the fish finder with your hands. Otherwise, the test results of the product will be wrong, and even the components inside will be damaged.
  • Page 9 Put the fish finder into the water and let it float on the surface. It will scan the water bottom of the monitoring area. Bottom information will be automatically shown on the display. Once a fish enters the monitoring area, the fish symbol will appear on the display.
  • Page 10 same time, and it is necessary to ensure that the sonar working surface floats vertically downward on the water surface. Before use, please check whether the fishing line tied to the threading screw is in good condition. If any damage is found, please replace the fishing line. 6.7 Electronic Switch There are 2 contact terminals at the bottom of the fish finder, these 2 terminals are the electronic switch of...

  • Page 11: App Explain

    6.8 Fish Finder Maintenance and Storage： 1. Do not put the fish finder in a damp and watery place when not using. Otherwise, the fish finder may turn on unexpectedly, resulting in power exhaustion and other failures. Store in a dry and insulated environment. 2.
  • Page 12 FishPod Portable 7.2 User Interface Description Content Content Menu Water Depth Temperature Fish Icon Water Bottom Flasher Depth Scale Devices --10--...
  • Page 13 7.3 Device pairing instructions: a. Turn on the device and keep it on. b. Open the APP and automatically enter the device pairing interface (as shown below). c. APP will automatically start to scan the device, you can also click the "Search" button to scan again. --11--...
  • Page 14 d. After the device is searched, Click "device " to connect the device and enter the main interface automatically. e. If it is a paired device, the system will automatically connect to the device and enter the main interface. f. Common problems: App can’t find the device: ◇Check if the device is turned on.

  • Page 15: Maintenance

    ◇When you start the APP for the first time, you have forbidden some permissions. ◇Check whether the Bluetooth permission of the APP is turned on. ◇The mobile phone of Android system needs to turn on the location service, and the mobile phone pull-down setting starts the location service (GPS) After the device is disconnected, it does not automatically reconnect:...

  • Page 16: Specifications

    failure. 8.3 The product cannot be stored on the metal plate, and the product should be placed in an insulated place. 8.4 Please pay attention to protect the sonar working surface to avoid bumps, scratches and impacts. Uneven and defective working surfaces will cause the performance of the equipment to decline.

  • Page 17: Common Problems And Solutions

    10. Common Problems and Solutions Question How to handle Fish finder 1. Please confirm whether the won't turn on battery power is sufficient. You can try it by charging it first. 2. Please use it at a temperature higher than -10℃. 3.
  • Page 18 reading is normally, there will be a flashing "---" or "00.0" light indication. If not, it means that the fish finder is not turned on normally. 2. Please confirm that the water depth is within the range of 0.8~60 meters (2.5~200FT), which refers to the distance from the fish finder to the bottom of the water.
  • Page 19 signal is straight down. intermittent, 2. The underwater vegetation the depth system is too complicated, resulting display is in disordered depth readings. If this unstable, is determined to be the cause, it is and the fish recommended to stop using fish school finders in the area.
  • Page 20 installation position of the fish finder to avoid the rapids caused by the navigation. 8. This happens when the boat speed exceeds 8 km/h. In this case, please reduce the speed of the boat. Temperature When the fish finder is moved from display is not one temperature environment to accurate...
