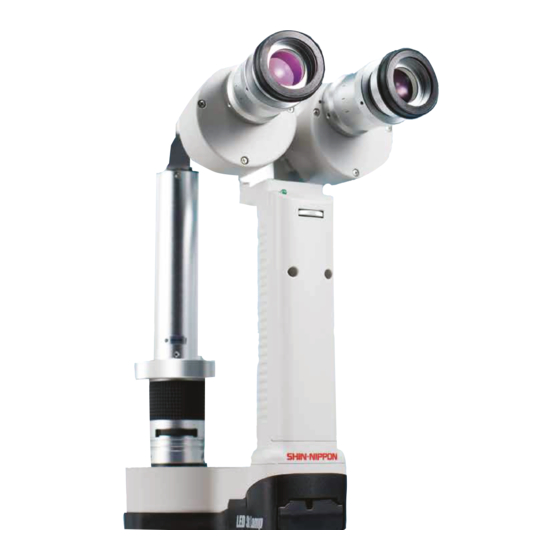

- Page 1 LED Slit Lamp XL-1 Operations Manual The contents of this Instruction Manual may be changed without prior notice D06-S05-0605e Rev1.1...
- Page 2 Exemption Ohira will not bear any responsibilities on the following matters. The trouble and/or damage caused by the results not observing the Notes on Safety or the operational method mentioned in this Instruction Manual Under the circumstances not within the operating conditions of this unit including the power source or the setting environment mentioned in this Instruction Manual The trouble and/or damage caused by the result(s) of remodeling or improper repair of the product...
-
Page 3: Table Of Contents
Contents SAFETY CONSIDERATION ....................... 1 PRODUCT OUTLINE .......................... 3 2.1........................3 RODUCT APPLICATION 2.2............................3 EATURE COMPONENTS OF THE PRODUCT ....................4 PRIOR PREPARATION ........................5 PREPARATION BEFORE USE......................5 HOW TO USE............................7 6.1........................7 IOPTER ADJUSTMENT 6.2. -
Page 4: Safety Consideration
1. Safety consideration Please read this Instruction Manual thoroughly to ensure safe and correct use of the product. General definitions of safety symbols are indicated below In the symbol for this operation manual and product, in order to use a product correctly, various symbol indication is given. - Page 5 When smoke comes out or the burning smell occurs, please extract a battery from a product immediately. When abnormalities, like there is a nasty smell during battery charge occur, please stop charging it and pull out a power supply plug from a plug socket. Do not short-circuit the polarities of the battery pack with a metal object such as wire.
-
Page 6: Product Outline
2.1. Product application LED SLIT LAMP XL-1 is a Slit Lamp Microscope for irradiating a Slit light strong against the transparent bodies, such as a cornea of an eyeball, and a crystalline lens, from slant, carrying out optical cutting, floating a minute abnormality up and carrying out expansion observation of this by the stereomicroscope by scattering of the detailed substance under tissue. -
Page 7: Components Of The Product
3. Components of the product ① ⑤ ⑨ ⑥ ④ ⑦ ② ③ ⑧ ① Forehead support A Microscope (binocular part) ② Slit opening and shutting ring B Microscope (objective lens part) ③ Filter rotation C Illumination part ④ Illumination control D Main body ⑤... -
Page 8: Prior Preparation
4. Prior preparation Please take out a main part, a diopter adjustment bar, a forehead support, a battery, etc. from a carrying case. Next, please insert a battery in the main part battery accommodation section firmly. Unless it is inserted firmly, it may be unable to illuminate, or a battery may fall. Cautions: When the capacity of a battery is falling, using a battery charger, please charge beforehand and use. - Page 9 5.2. The check of illumination light 1) Please turn a slit opening-and-closing ring clockwise, and open a slit to the maximum. 2) Please push a lighting ON/OFF switch. A round illumination light is seen. When illumination is not obtained, please check whether the slit opening-and-closing ring is open. When it is open and illumination is not obtained, battery capacity is falling.
-
Page 10: How To Use
6. How to use 6.1. Diopter adjustment 1) When the diopter is known, please carry out diopter adjustment with a diopter scale. 2) When you attach a diopter adjustment bar and you adjust a diopter, please adjust in the following procedures. -
Page 11: Slit Opening And Shutting Ring
6.5. Slit opening and shutting ring Turn the slit opening and shutting ring to adjust the slit width. Clockwise------------------ Open Counterclockwise-------- Close Slit width: 0-11mm Stepless adjustment Slit image 6.6. Illumination angle Illumination angle, pick the slide ring with fingers and move it right and left +/- 30 degrees. 30°... -
Page 12: About Charge Of A Battery
6.9. About charge of a battery Battery information Type and a name of a battery: NIKON pure battery or equivalent battery Polarity of a battery － The exchange method of a battery: From a main body to remove and exchange Disposal of a used battery: Please discard according to the regulations of a local self-governing body. -
Page 13: After Use
7. After use 1) After use should clean a main body and should keep it cleanly. 2) Please remove a battery, when you do not use it for a long period of time, and keep a product in the carrying case of exclusive use carefully. 3) When the display lamp of remaining battery level blinks, please remove a battery from main body and charge a battery. -
Page 14: Specifications
Specifications Microscope Eyepiece 10X and 16X(Option) Objective lens Total magnifications 10X and 16X(Option) Diopter adjustment ±7D φ10mm Visual field 50-75mm (at eyepiece 10X 55-70mm (at eyepiece 16X) Working Distance (W.D.) 80mm Illumination Slit width 0-11mm Stepless adjustment is possible Slit length 11mm Filter Cobalt blue, Green, Color temperature conversion filter... - Page 15 CE Conformity This product conforms MDD standard for compliance with EC directive 93/42/EEC ANNEX II,V and VII, with reference article 1 and 3 of EC directive 93/42/EEC. - 12 -...
- Page 16 EU Representative FAUSTO GUZZETTI (SHIN-NIPPON TECHNICAL CENTER) VIA SOLFERINO,5 21057 OLGIATE OLONA(VA), Italy Supplied by East Wing 7F, TFT Building, 3-1-22 Ariake, Koto-Ku, Tokyo 135-8071, JAPAN TEL:813-3528-4416 FAX: 813-3528-4426 http://www.shin-nippon.jp http://www.ajitrade.com Manufactured by Ohira Co., Ltd 258 Nishi Izumida, Minami-Uonuma, Niigata 949-6615, JAPAN...
