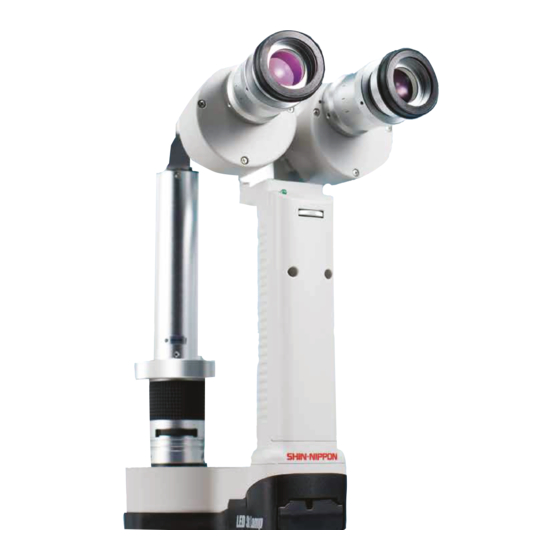

- Page 1 LED Slit Lamp XL-1 Service Manual This service manual is for Ajinomoto’s Service engineers and their distributor’s service person.
- Page 2 Illumination Light is OFF (照明が点灯しない) ① The battery is too low. (バッテリーが低下している) →Re-charge the battery. (電池を充電する) ② Slit is closed. (スリットが閉じている) →Open the slit ring. （スリットを開く） ③ Illumination control volume is set to low position. (光量調節が低くなっている) →Set to high position to get more light power. (光量調節を高めに設定する) ④ ...
- Page 3 C-2 Unscrew the three screws to remove the cover. (3 箇所ネジを緩めてカバーを外す) C-3 Loosen the three screws to change the illumination angle. （照明軸を変更するためにネジを３カ所緩め る） C-4 Rotate the grip to adjust the illumination angle, then tightens the three screws(C-3). （グリップを回転させて照明軸を調節し、C-3 のネジをしっかりと締める。 ） ② ...
- Page 4 Objective cover replacement. 対物レンズカバーの交換 1. Unscrew the two screws and remove the cover and set new cover. ネジ２カ所を緩めてカバーを外して新 しいカバーを装着してください。 2. Please ask sales distributor if the objective lenses are damaged. You can not replace the objective lenses without special calibration instruments.
- Page 5 EU Representative FAUSTO GUZZETTI (SHIN-NIPPON TECHNICAL CENTER) VIA SOLFERINO,5 21057 OLGIATE OLONA(VA), Italy Supplied by East Wing 7F, TFT Building, 3-1-22 Ariake, Koto-Ku, Tokyo 135-8071, JAPAN TEL:813-3528-4416 FAX: 813-3528-4426 http://www.shin-nippon.jp http://www.ajitrade.com Manufactured by Ohira Co., Ltd 258 Nishi Izumida, Minami-Uonuma, Niigata 949-6615, JAPAN...
