Aiphone JP-DVF-PR Installation Manual

The JP-DVF-PR is a JP Series video door station with a built-in AC-PROX-1G proximity card reader. The station connects directly to a
JP-4MED master station using 2-conductor wire, and the card reader uses a standard Wiegand connection to connect to a compatible
access control system.
JP-DVF-PR

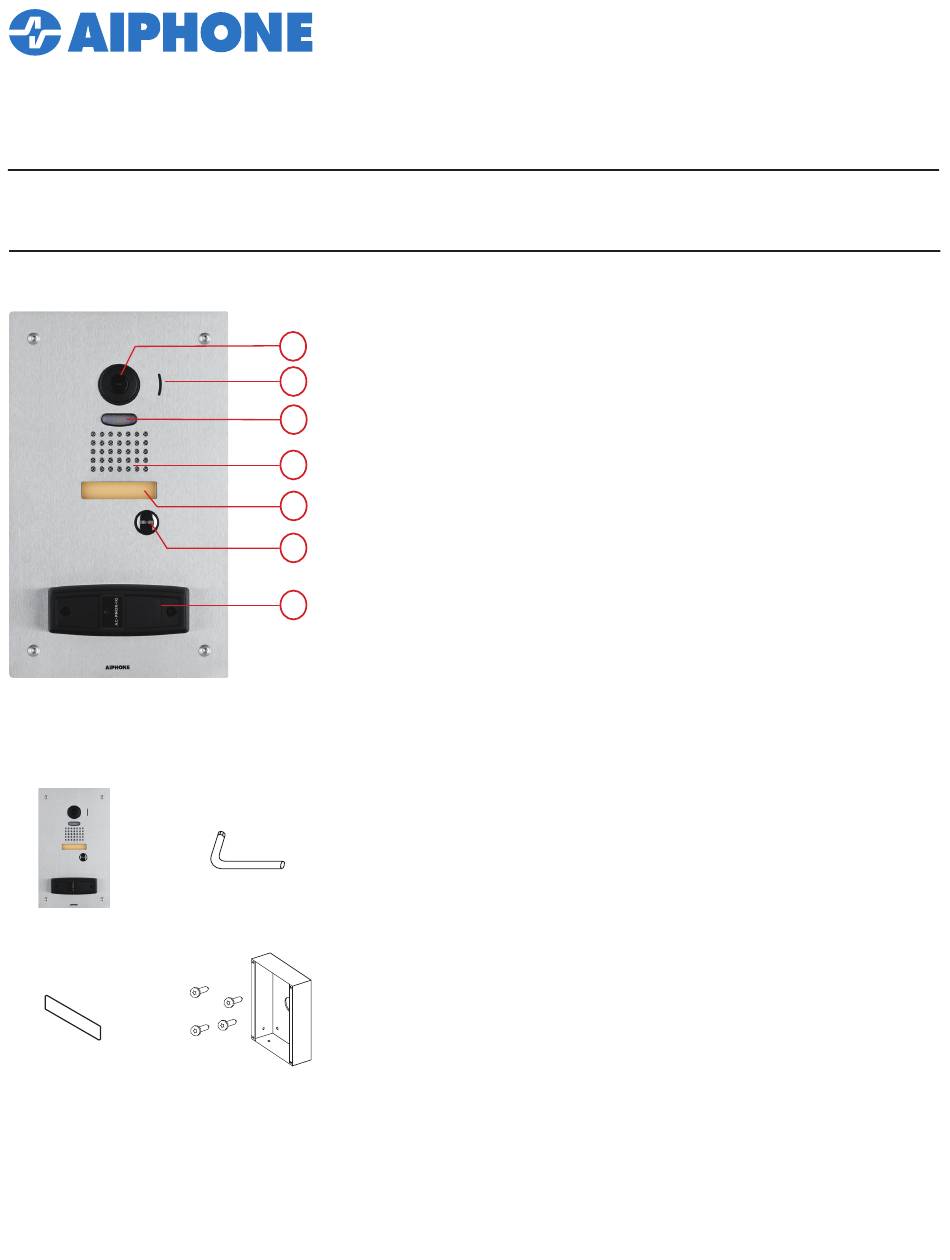

Package Contents

JP-DVF-PR
Door Station
Transparent
nameplate (2) and tamper-resistant screws
INSTALLATION GUIDE
1
2
3
4
5
6
7
Security Driver
Flush mount backbox
JP-DVF-PR

Names and Functions

1. Camera
2. Microphone
3. White LED for low light illumination
4. Speaker
5. Directory card
6. Call button
7. Card reader

Features

• PTZ camera
• Stainless steel faceplate
• Built-in RFID card reader

Installation

For flush mounting, recess the supplied back box into the wall,
then attach the mounting bracket using the four provided bracket
screws.
Back Box Dimensions: 10-1/2" H x 5-13/16" W x 2-5/16" D
JP-DVF-PR Dimensions: 11-11/16" H x 7" W x 2-1/16" D
For surface mounting, use the SBX-IDVFRA surface mount box.
This box can mount to a standard single-gang box or to any flat
surface.
To insert the transparent nameplates, remove the vandal-
resistant front panel from the flush mount back box. Peel off the
protected seals from both sides of the plate. Write in the desired
text, being sure to leave 1" of white space on the right side.
Insert the nameplate into the opening.
