OWNER'S MANUAL

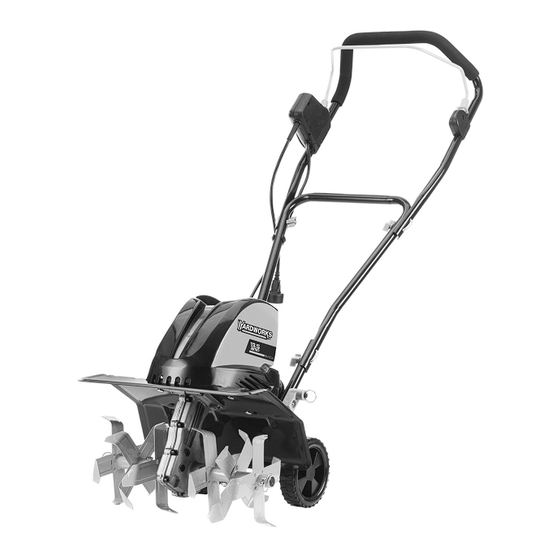

16" 13.5-Amp Corded Electric Tiller / Cultivator
Copyright All Rights Reserved.
Model TC70016-1 | SKU# 270-2444
WARNING: To reduce the risk of injury, the user must read and understand the owner's manual before
using this product.
DO NOT RETURN THIS PRODUCT TO THE STORE. OPERATING, ASSEMBLY, PART,
SERVICE QUESTIONS? GO TO AMERICANLAWNMOWER.COM OR CALL 1-800-633-1501.
BETWEEN 8 AM – 5 PM EST, MONDAY-FRIDAY FOR ASSISTANCE.
SAVE THIS MANUAL FOR FUTURE REFERENCE
Thank you for your purchase.
Advertisement
Table of Contents
Related Manuals for Yardworks TC70016-1
Summary of Contents for Yardworks TC70016-1
- Page 1 OWNER’S MANUAL 16” 13.5-Amp Corded Electric Tiller / Cultivator Copyright All Rights Reserved. Model TC70016-1 | SKU# 270-2444 WARNING: To reduce the risk of injury, the user must read and understand the owner‘s manual before using this product. Thank you for your purchase.
-
Page 2: Table Of Contents
Operating ........8 - 9 PRODUCT SPECIFICATIONS Model: TC70016-1 Power supply voltage:... -
Page 3: Symbols
DANGER! Rotating blades. Keep hands and feet at a safe distance. DANGER! Of being hit by thrown objects. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. Model TC70016-1... -
Page 4: Safety Warnings
If in doubt, use the next heavier of children’s reach. gage. The smaller the gage number, the heavier the cord. Model TC70016-1... - Page 5 WARNING: Cancer and Reproductive Harm - daylight or good artificial light. www.P65Warnings.ca.gov. Do not operate the tiller/cultivator on a slope that is too steep for safe operation. When on slopes, slow down and make sure you have good footing. Model TC70016-1...
-
Page 6: Assembly
1-800-633-1501 for assistance. possible serious personal injury. WARNING: Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury. Model TC70016-1... - Page 7 Tine position. (Fig. 3) In the event the lock Pins are lost or misplaced, Tines A and D may be secured using the extra M8X35 Hex head bolts and M8 Lock nuts provided. (Fig. 4) Model TC70016-1...
-
Page 8: Operating
Hold the tiller/cultivator firmly while starting. The tines will pull the tiller/cultivator forward during operation. Lower the tines slowly into the ground being tilled. To stop the tiller/cultivator simply release the bail wire. Model TC70016-1... - Page 9 To simplify removal of tall grass the incline to retain a firm, safe footing. Do not work or weeds from the tine shaft, remove one or more of on extremely steep slopes. the tines. See Tine Removal and Installation. Model TC70016-1...
-
Page 10: Maintenance
Remove Tine B and transmission. C from the shaft. Reverse above steps to install Tines. M8X35 M8X35 Tine D Tine C Tine B Tine A Model TC70016-1... -
Page 11: Storage
Abnormal vibrations Blades damaged or worn Replace damaged or worn blades. Working depth too large Set to correct working depth. Poor results Working depth too small Set to correct working depth. Worn blades Replace damaged or worn blades. Model TC70016-1... - Page 12 RTC10/16-C Center Handle RTC10/16-HDW Handle Hardware Kit CALL US FIRST !! Call us first with questions about operating or maintaining this product at 1.800.633.1501 between 8:00 a.m. – 5:00 p.m. Eastern Standard Time, or get assistance on americanlawnmower.com. Model TC70016-1...
- Page 13 __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ Model TC70016-1...
-
Page 14: Warranty
Two (2) year limited warranty on Yardworks outdoor power equipment. The Great States Corp. (GSC) warrants to the original owner that this Yardworks product and service part is free from defects in materials and workmanship and agrees to repair or replace any defective product or part for the warranty period as stated above.
