Drolo Strands Manual

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Strands

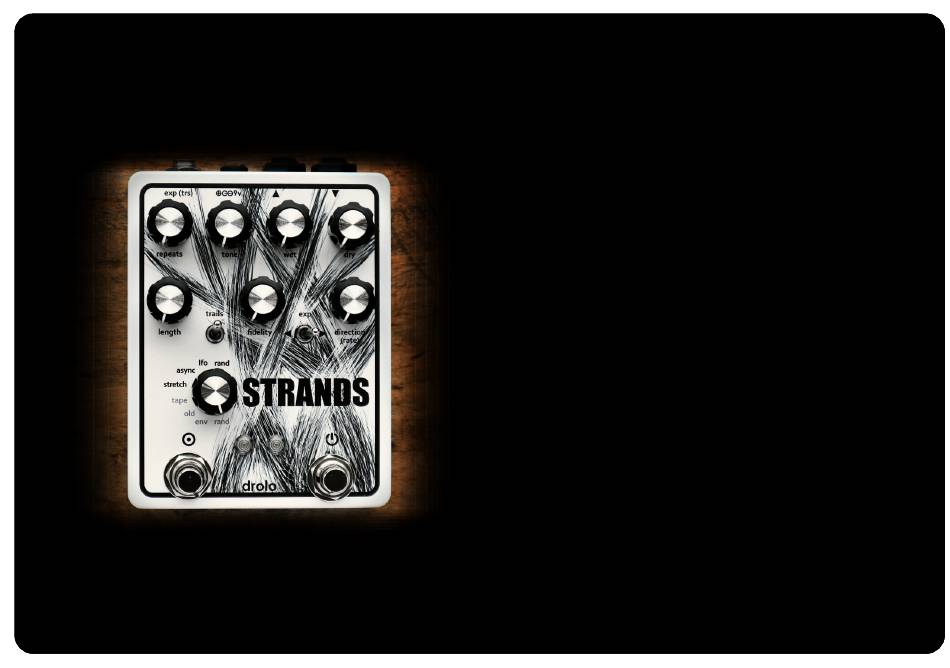

Strands is a delay/micro looper with two main operation modes,
time stretch and tape looper, that come in 4 variations each.
It can be used like a delay pedal, loop short audio bits, create
evolving rhythmic or melodic patterns...
The overall memory size, delay and looping time, can be adjusted
with the fidelity knob.Turning it up will increase the audio quality,
but reduce the memory size, and vice versa.The audio memory
varies between a bit less than a second to a bit over 3 seconds.
The fidelity knob will also have an effect on other aspects of
sound processing, like filter ranges, response of time based
elements like LFO's, envelope detectors etc.
The left footswitch allows you to loop the current content of the
buffer. As the looped audio is recirculating through the buffer,
eventually it will start to degrade, after a few minutes.This too is
dependent on the fidelity setting.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Strands and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Drolo Strands

Summary of Contents for Drolo Strands

  • Page 1 Strands Strands is a delay/micro looper with two main operation modes, time stretch and tape looper, that come in 4 variations each. It can be used like a delay pedal, loop short audio bits, create evolving rhythmic or melodic patterns...
  • Page 2 When engaged, allows the repeats to fade out naturally when the pedal is bypassed. Be async aware that any noise generated by the effect will remain present too when bypassed. STRANDS stretch tape Switch between expression input control over the fidelity or the direction parameter.
  • Page 3 The time stretch modes The tape modes stretch tape Audio can be time stretched, with the direction knob altering the Records short loops that are played back at a speed and direction set amount of stretching and direction of playback. Maximum amount by the direction knob.
  • Page 4 Most commercially available expression pedals that use a is the most commonly used type of guitar pedal power supply, but it’s standard TRS plug should work with Strands. However, for optimum still important to make sure the voltage (9V DC) and polarity (center- results it’s best to use one with a resistance value of 10k or higher.
