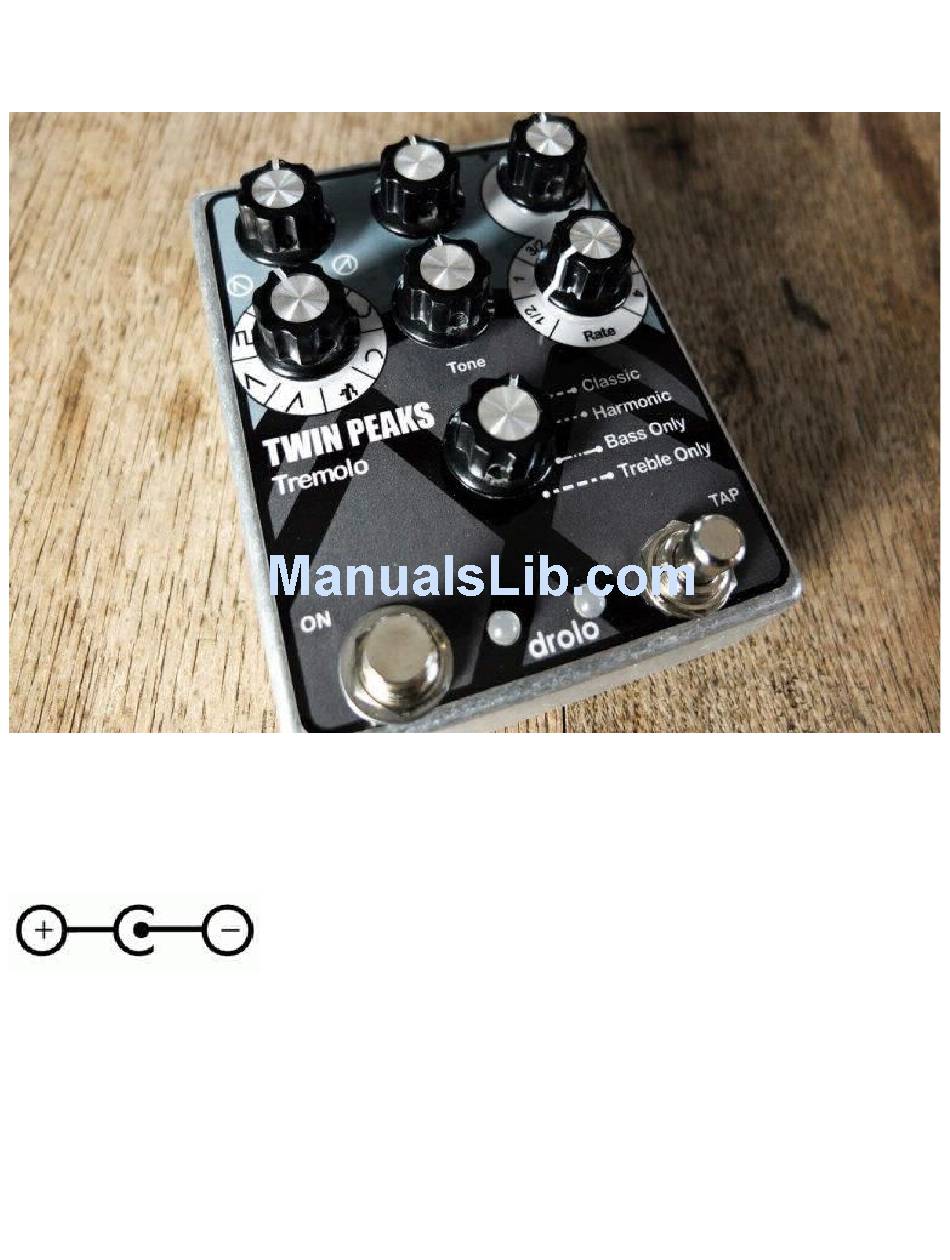

Twin Peaks Tremolo V3
drolo

Connecting and powering:

The power supply needs to be 9V/100ma center negative like the common BOSS power supplies:
Make sure the polarity of your power supply is correct or it will damage the pedal. D
o NOT run at higher voltages.
Since the pedal has a digital microprocessor operating with high frequencies, you might hear some high pitched noise if
you use it together on the same power supply with other pedals (daisy chained) even when it is off. The noise can bleed
through the power supply into the other pedal's signal. This is normal for such devices. It might not be the case in your
particular setup but if you notice that, I would suggest using an isolated power supply for the tremolo.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Twin Peaks Tremolo V3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Drolo Twin Peaks Tremolo V3

Summary of Contents for Drolo Twin Peaks Tremolo V3

  • Page 1 Twin Peaks Tremolo V3 drolo Connecting and powering: The power supply needs to be 9V/100ma center negative like the common BOSS power supplies: Make sure the polarity of your power supply is correct or it will damage the pedal. D o NOT run at higher voltages.
  • Page 2 Controls: ON : Turn on the effect or bypass it. TAP: Tap in the desired tempo Tremolo Type  Classic : Bass and treble modulated in phase  Harmonic : Bass and treble modulated out of phase  Bass Only : Bass modulation only, with fix treble ...
  • Page 3 Symmetry: Allows changing the ratio between the upper and lower wave of the LFO signal For example, when using the square wave, you can set whether the “off” or the “on” periods are the longest. This diagram shows the effect of the symmetry pot on some wave shapes: Source: http://www.electricdruid.net/datasheets/TAPLFO2Datasheet.pdf Shape:...
  • Page 4 Biasing: The pedal was biased to provide the best possible sweep and no volume difference between bypass and effect. You may want to adjust the overall volume to suit your needs though. It can be done with this internal trimmer: Please do not touch any of the other trimmers.
