Drolo Molecular Disruptor V 2.0 Manual

Dsp based multi-effect pedal

Table of Contents

Download this manual

Molecular Disruptor V 2.0

drolo

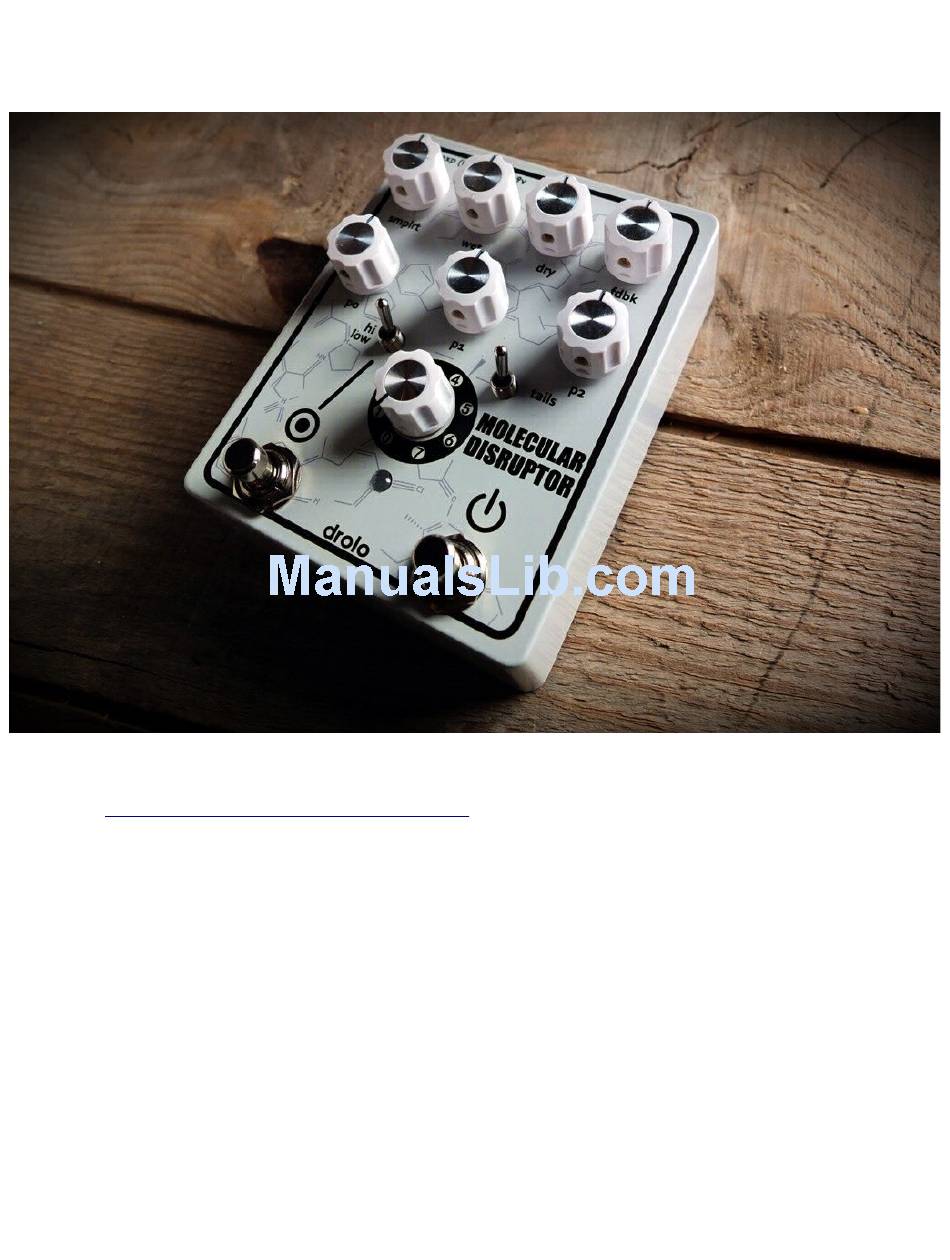

The Molecular Disruptor is a DSP based multi-effect pedal that can be loaded with 8 patches selected from the molecular

patches list:

http://www.davidrolo.com/molecular-patches/

This list is regularly being updated with new patches.

These patches get programmed after the purchase and cannot be changed by the end user.

Table of Contents

Need help?

Do you have a question about the Molecular Disruptor V 2.0 and is the answer not in the manual?

Page 1 Molecular Disruptor V 2.0 drolo The Molecular Disruptor is a DSP based multi-effect pedal that can be loaded with 8 patches selected from the molecular patches list: http://www.davidrolo.com/molecular-patches/ This list is regularly being updated with new patches. These patches get programmed after the purchase and cannot be changed by the end user.
Page 2 Connecting and powering: The power supply needs to be 9V/100mA center negative like the common BOSS power supplies: Make sure the polarity of your power supply is correct or it will damage the pedal. D o NOT run at higher voltages. As the pedal uses a digital processor operating at high frequencies, you may hear some high pitched noise if you use it together on the same power supply with other pedals (daisy chained) even when it is bypassed.
Page 3 bypass switch: If you give it a short tap (<1sec) it acts in latching mode. If you press it for more than a second the bypass indicator led will start flashing and you are in momentary mode. tails: Defines the bypass mode. Up : Buffered bypass that leaves the output of the effect passing through when the pedal is bypassed, allowing delays to trail off etc.
Page 4 exp input: Can be used to externally control p1. When an expression pedal is connected, the p1 pot can be used to define the max setting of the expression pedal. Most commercially available expression pedals using a TRS plug should work. The value is not really critical, although I would not go lower than 10k.
