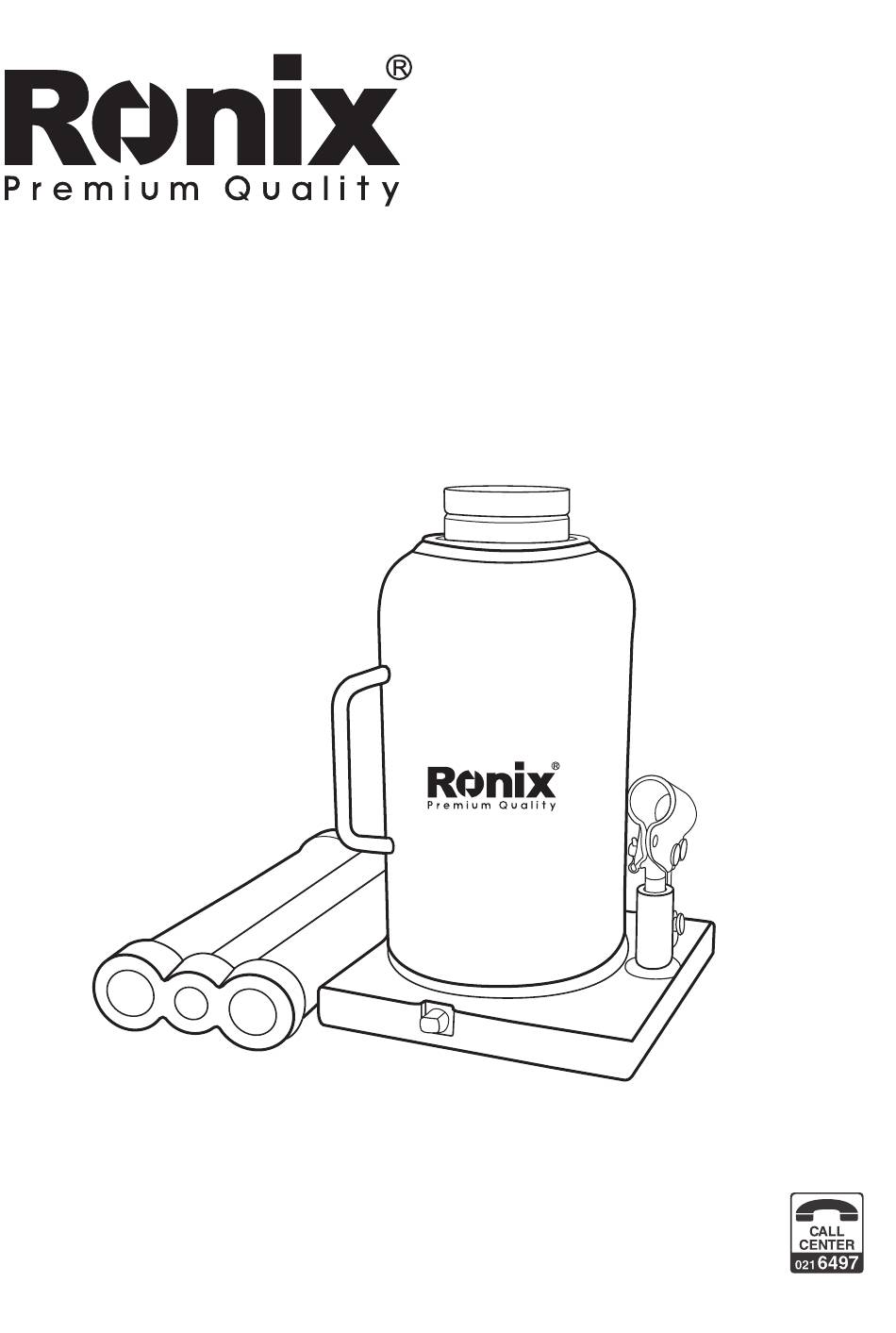

- Page 1 BOTTLE JACK 32T RH-4907 www.ronixtools.com...
- Page 2 TECHNICAL SPECIFICATIONS Model RH-4907 Capacity 32Ton Min Height 260mm Lifting Height 170mm Net Weight 15.85Kg Supplied in Ronix Color box PART LIST Adjustable Saddle Jack Body Life Handle Piston Assembly Handle Release Valve USER MANUAL...
- Page 3 SAFETY MARKINGS WARNING! 1- Study, understand, and follow all instructions before operating this device. 2- Do not exceed rated capacity. 3- Use only on hard, level surfaces, with less than 3 degrees of slope. 4- Lifting device only. Immediately after lifting, support the vehicle with appropriate means.
- Page 4 alterations shall be made to this product. 1- Before use: A visual inspection of the jack should be made for abnormal conditions such as cracked welds, damaged, bent, worn, loose or missing parts, or hydraulic leaks. 2- Inspections shall be performed by this manual. 3- The product shall be inspected immediately if the jack is believed to have been subject to an abnormal load or shock.
- Page 5 by the vehicle manufacturer. Do not get under the vehicle without jack stands. Jacks are not designed to maintain heavy loads for long periods of time. Do not attempt to put the jack stand simultaneously under both ends of the vehicle or under one side of it. 7- Turn the release valve SLOWLY counterclockwise to lower load onto the jack stands.
- Page 6 jack well lubricated: 1- Lubricate the ram, linkages, saddle, and pump mechanism with light oil. Grease wheel bearings and axles. 2- Visually inspect for cracked welds, bent, loose, missing parts, or hydraulic oil leaks. 3- If the jack is subjected to abnormal load or shock, remove it from service and have it examined by a customer service representative before use.
- Page 7 Jack Jack will Jack Poor Jack will not not lift to will not Causes and Solutions jack will not hold full lift the lifting lower. extension. load. load. The release valve is not completely closed. (Turn handle clockwise.) Weight Capacity Exceeded.
- Page 8 www.ronixtools.com...
