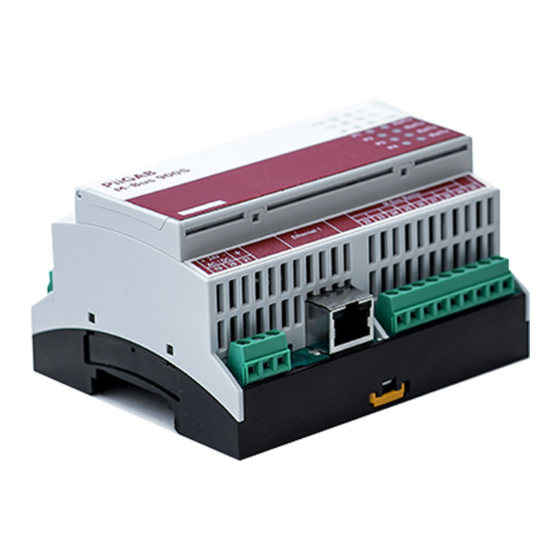

- Page 1 Getting started PiiGAB M-Bus 900S www.piigab.com PiiGAB Processinformation i Göteborg AB • Anders Carlssons gata 7 • S-417 55 Göteborg • Sweden Tel: +46(0)31 559977 • Fax: +46(0)31 227071 • email: info@piigab.se...
-
Page 2: Table Of Contents
......................5 NETWORK IP ........................5 TATIC FIND YOUR PIIGAB M-BUS 900S ON YOUR NETWORK ..........8 CONFIGURE THE PIIGAB M-BUS 900S ................9 PIIGAB M-BUS SETUP WIZARD – M-BUS COMMUNICATION ........10 ..............11 OMMUNICATION WITH THE INTERNAL METER ........... -
Page 3: Document Information
Rev 1.01.00 1. Document Information This document will describe how to configure the PiiGAB M-Bus 900S for M-Bus communication with one M-Bus meter using static IP or DHCP. If you see something that is not correct in this document, that misleads you or if you are missing something please contact us so we can improve this document continuously. -
Page 4: Installation And Connections
2. Connect the PiiGAB M-Bus 900S gateway to your computer with the patch cable. 3. Connect the M-Bus meter to the PiiGAB M-Bus 900S. 4. Connect the PiiGAB M-Bus 900S gateway to a 24V AC or DC power supply. 5. Turn the power supply on. -
Page 5: Mac-Address And Serial Number
IP-configuration automatically. 5.2 Static IP If you don’t have a network with DHCP you must set your PiiGAB M-Bus 900S gateway to a static IP-address. Note: If you have an old computer you might need a network switch between your computer and the PiiGAB M-Bus 900S gateway. - Page 6 Getting started PiiGAB 900 Rev 1.01.00 5. Select Setup IP using network (UDP broadcast). 6. In the MAC-address field specify the PiiGAB M-Bus 900S gateway’s MAC-address. 7. Press Next to continue. 8. Select Use the following IP-address. 9. Specify the IP-configuration. The PiiGAB M-Bus 900S gateway should match your computer’s IP-address.
- Page 7 11. Press Apply to set the IP-configuration. 12. Wait for the PiiGAB M-Bus 900S gateway to reboot. Note: PiiGAB M-Bus Setup Wizard may signal that it failed to set the MAC-address. Please ignore this warning. The IP-address should be set anyway.
-
Page 8: Find Your Piigab M-Bus 900S On Your Network
Rev 1.01.00 6. Find your PiiGAB M-Bus 900S on your network You can use the PiiGAB M-Bus Setup Wizard to find your PiiGAB M-Bus 900S on the network. This will work for both a network with DHCP or static IP-address configuration. -
Page 9: Configure The Piigab M-Bus 900S
Rev 1.01.00 7. Configure the PiiGAB M-Bus 900S This section describes how the PiiGAB M-Bus 900S should be configured for M-Bus communication using 2400 baud, UDP and port 10001 through slave port 1. All configuration of the PiiGAB M-Bus 900S is done in the gateway’s web interface. -
Page 10: Piigab M-Bus Setup Wizard - M-Bus Communication
8. PiiGAB M-Bus Setup Wizard – M-Bus communication This section will use the PiiGAB M-Bus Setup Wizard to verify if the PiiGAB M-Bus 900S and an M-Bus meter respond to M-Bus communication. 1. In the main menu select Test, search and configure meters. -
Page 11: Communication With The Internal Meter
Rev 1.01.00 8.1 Communication with the internal meter Inside the PiiGAB M-Bus 900S there is an internal M-Bus meter which can be used to read the PiiGAB M-Bus 900S’s serial number, M-Bus voltage and M-Bus current. This meter is accessed by primary address 251. By using the internal meter, you can confirm that you have a working communication with the PiiGAB M-Bus Setup Wizard and your PiiGAB M-Bus 900S. -
Page 12: Communicate With Test And Diagnostic Address
1. Configure as the picture shown below. 2. Press the Find button to test communication with the M-Bus meter. For this example the M-bus meter responded and its primary address is 11. © PiiGAB Processinformation i Göteborg AB Page: 12... -
Page 13: Ommunicate With The Meters Actual Primary Address
Always make sure the M-Bus meter responds to the actual primary address. 1. Configure as the picture shown below. 2. Press the Find button to test communication with the M-Bus meter. As expected the meter responded to primary address 11. © PiiGAB Processinformation i Göteborg AB Page: 13... -
Page 14: S Addresses In The Pii Gab M-Bus Setup Wizard
Getting started PiiGAB 900 Rev 1.01.00 8.4 Identify the meter’s addresses in the PiiGAB M-Bus Setup Wizard The PiiGAB M-Bus Setup Wizard always shows the meter’s actual primary and secondary addresses. In the previous example the meter’s primary addresses were 11. Address Value... -
Page 15: Secondary Address - Identification Number And Wild Cards
If the meter doesn’t respond to the identification number you can enter the entire secondary address. 1. Configure as the picture shown below. 2. Press the Find button and test the communication with the meter. © PiiGAB Processinformation i Göteborg AB Page: 15... -
Page 16: Read M-Bus Voltage And M-Bus Current
With a PiiGAB M-Bus 900S V2.0.0 or later and PiiGAB M-Bus Setup wizard V3.1.0 or later you can read the PiiGAB M-Bus 900S’s M-Bus voltage and M-Bus current. This is very useful if you want to make a quick control what’s the status of the PiiGAB M-Bus 900S and the M- Bus loop. -
Page 17: Appendix
Norway Phone +49 5251 17670 Phone +47 33 30 09 50 www.relay.de www.autic.no Czech Republic Papouch store s.r.o. Strasnicka 3165/1b 102 00 PRAGUE 10 Czech Republic Phone +420 267 314 267-8 www.papouch.com © PiiGAB Processinformation i Göteborg AB Page: 17...
