Impeller Pump OP-7

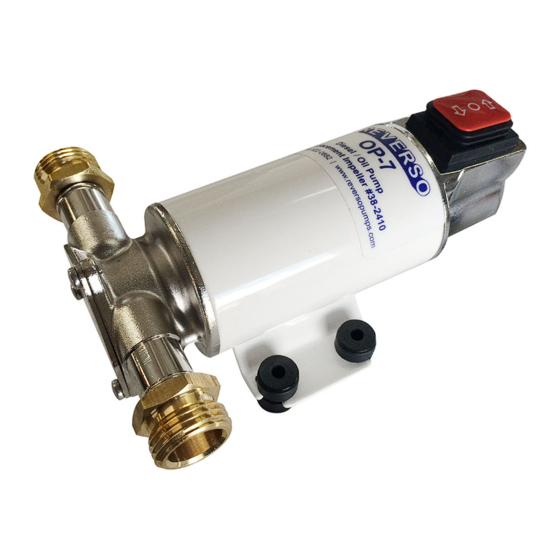

The OP-7 is a self-priming impeller pump for diesel
or oil transfer. The pump is ideal for completing oil
changes on generators and boat engines. Flow
direction is reversible with the integrated switch and
it is designed for discontinuous use.
Reversing Switch
Optional Features
•
Other inlet/outlet sizes available by request.
Technical Specifications
3/4"
Flow Rate
I.D.
Hose
Inner 3/8" Female BSPP
Inlet / Outlet
Outer 3/4" Outer Diameter Hose Barb
Fittings 3/4" Male Garden Hose
Voltage
12V or 24V
Self-priming
5 ft / 1.5m (wet)
Amp. Draw
8A / 12V, 4A / 24V
Fuse
10A / 12V, 7.5A / 24V
Wire Size
14 AWG / 1.5 mm
Pressure
15 psi / 1 bar
Min. Ambient
14°F / -10°C
Temperature
Min. Ambient
140°F / 60°C
Temperature
Impeller
Viton
Rated
IP67
A
B
Dimensions
C
Reverso Pumps, Inc.
Basic Features
•
Self-priming
•
IP67 rated
•
Fittings included 3/4" Male
Garden Hose
•
Reversing switch
•
Available in 12V and 24V
7.4 GPM / 28 LPM
2
7.57" / 192 mm
5.16" / 131 mm
3.5" / 89 mm
3.7 lbs / 1.7 kg
www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882
Pump and Spare Parts
33-2300-01-1-2-1 12 Volt
33-2300-02-1-2-1 24 Volt
38-2410
Viton Impeller
SRK-380 Repair Kit:
38-2420
(1) Impeller
(1) Top plate
SRK-380-2 Repair Kit:
38-2420-02
(2) Impeller
(2) Top plate
SRK-381 Rebuild Kit for 12V:
(1) Impeller
(1) Top plate
38-2421
(1) O-ring
(3) Screws
(1) Ball bearing
SRK-381-2 Rebuild Kit for 12V:
(2) Impeller
38-2421-02
(2) Top plate
(2) O-ring
(6) Screws
(2) Ball bearings
SRK-382 Rebuild Kit for 24V:
(1) Impeller
38-2422
(1) Top plate
(1) O-ring
(3) Screws
(1) Ball bearing
SRK-382-2 Rebuild Kit for 24V:
(2) Impeller
(2) Top plate
38-2422-02
(2) O-ring
(6) Screws
(2) Ball bearings
Instructions
(1) O-ring
(3) Screws
(2) O-ring
(6) Screws
(1) Brush holder with
integrated 12V switch
(1) Lip seal
(4) Anti-vibration
mounts
(2) Brush holder with
integrated 12V switch
(2) Lip seals
(8) Anti-vibration
mounts
(1) Brush holder with
integrated 24V switch
(1) Lip seal
(4) Anti-vibration
mounts
(2) Brush holder with
integrated 24V switch
(2) Lip seals
(8) Anti-vibration
mounts
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Reverso OP-7
Summary of Contents for Reverso OP-7

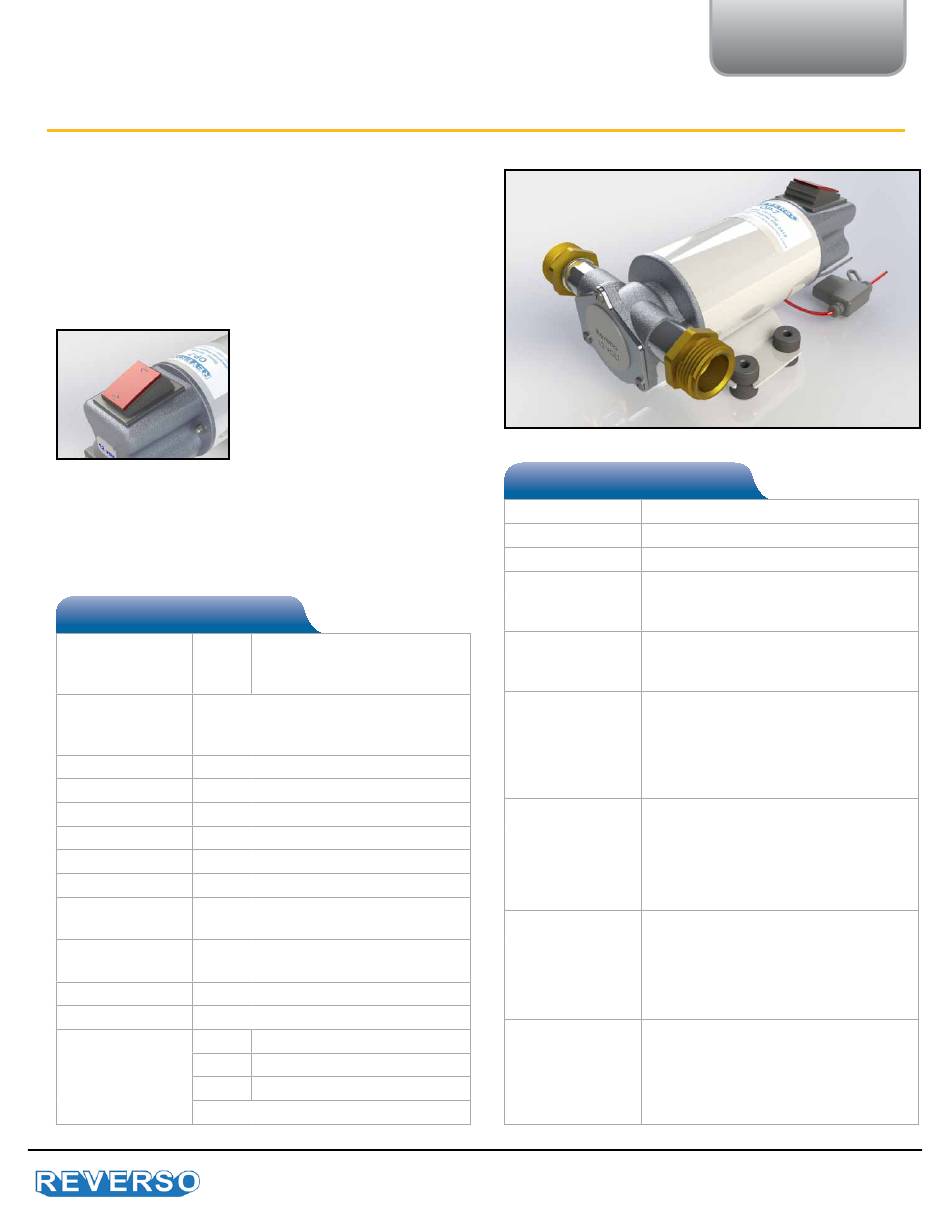

- Page 1 Instructions Impeller Pump OP-7 The OP-7 is a self-priming impeller pump for diesel or oil transfer. The pump is ideal for completing oil changes on generators and boat engines. Flow direction is reversible with the integrated switch and it is designed for discontinuous use. Basic Features Reversing Switch • Self-priming • IP67 rated • Fittings included 3/4” Male Garden Hose • Reversing switch • Available in 12V and 24V Pump and Spare Parts Optional Features 33-2300-01-1-2-1 12 Volt • Other inlet/outlet sizes available by request. 33-2300-02-1-2-1 24 Volt 38-2410 Viton Impeller SRK-380 Repair Kit: 38-2420...
- Page 2 Minimum of 1/2” inner diameter hose is recommended; smaller hose is not advised. ” ID Choose fittings which fit the hose size selected to minimize restriction. Use Loctite 565 on all connections. Electrical Connection The electrical installation of this product must be executed by a qualified electrician and following the ABYC requirements. Be sure that the power source available matches the power requirements on the specification sheet. Operation Reversing Swtich The pump is equipped with a 3-position rocker switch. The center position is Off. To start the pump, press the arrow for the desired flow direction. Return switch to the center Off position after required amount of fluid has been transferred. Avoid running the pump dry for long periods. Troubleshooting • Check for a blown fuse. • Check inside the pump head for any debris or broken blades on the impeller. • Verify the voltage supplied matches the specifications of the pump motor. • Check for restrictions in the hose or fitting size. • Check for air leaks in the lines or seals. • Check if impeller has dried out due to a long period without use. If yes, add fluid into pump head before startup. Version 8/30/16 Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882...
