Impeller Pump OP-7

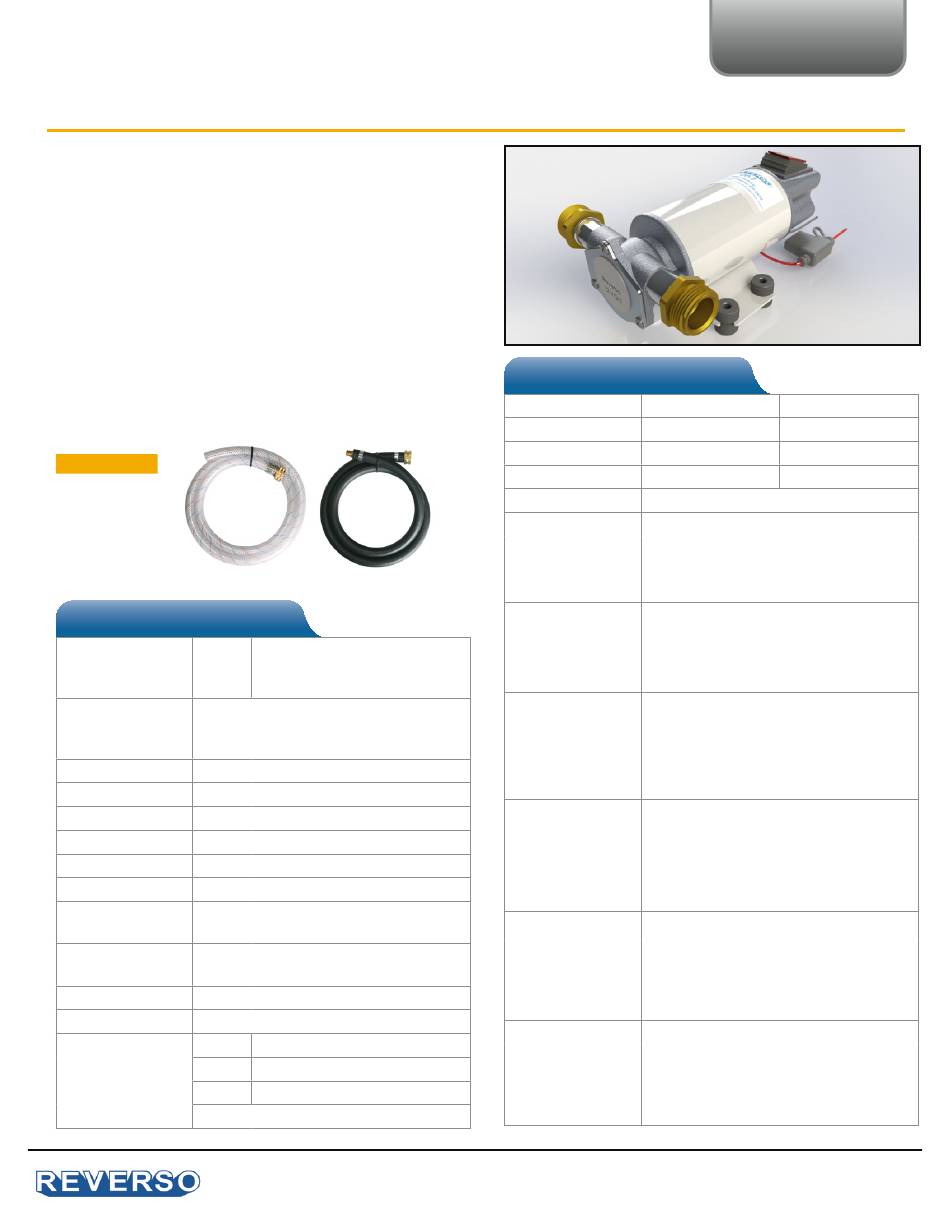

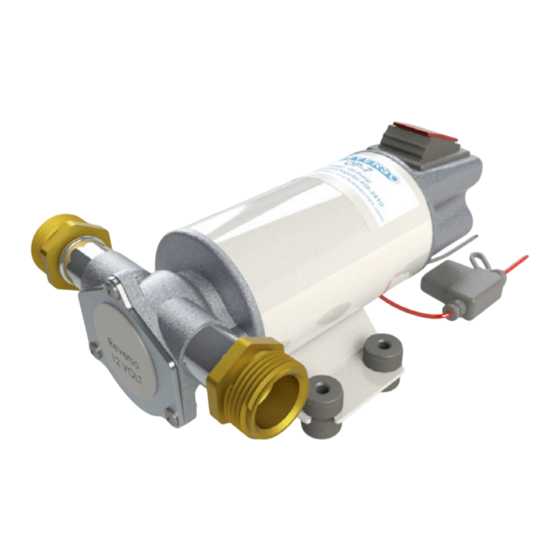

The OP-7 is a self-priming impeller pump for diesel
or oil transfer. The pump is ideal for completing oil
changes on generators and boat engines. Flow
direction is reversible with the integrated switch and
it is designed for discontinuous use.
Basic Features
• Self-priming
• IP65 rated
• Fittings included 3/4" Male Garden Hose
(other sizes available upon request)
• Reversing switch
• Available in 12V and 24V
BRU version
Includes:
2 hoses and
5/8" I.D.
9 ft power cable
Technical Specifications
3/4"
Flow Rate I.D.
Hose
Inner 3/8" Female BSPP
Inlet / Outlet Outer 3/4" Outer Diameter Hose Barb
Fittings 3/4" Male Garden Hose
Voltage
12V or 24V
Self-priming 5 ft / 1.5m (wet)
Amp. Draw 6A / 12V, 4A / 24V
Fuse 7.5A / 12V, 5A / 24V
Wire Size 14 AWG / 1.5 mm
Pressure 15 psi / 1 bar
Min. Ambient
14°F / -10°C
Temperature
Min. Ambient
140°F / 60°C
Temperature
Impeller
Viton
Rated IP65
A
B
Dimensions
C
Reverso Pumps LLC
5 ft 5 ft
1/2" I.D.
7.4 GPM / 28 LPM
2
7.57" / 192 mm
5.16" / 131 mm
3.5" / 89 mm
3.7 lbs / 1.7 kg
www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882
Pump and Spare Parts
33-2300-01-1-2-1 OP-7-12
33-2300-02-1-2-1 OP-7-24
33-2303-01-1-2 OP-7-BRU-12
33-2303-02-1-2 OP-7-BRU-24
38-2410 Viton Impeller
SRK-380 Repair Kit:
(1) Impeller
38-2420
(1) Top plate
(1) O-ring
(3) Screws
SRK-380-2 Repair Kit:
(2) Impeller
38-2420-02
(2) Top plate
(2) O-ring
(6) Screws
SRK-381 Rebuild Kit for 12V:
(1) Impeller
(1) Top plate
38-2421
(1) O-ring
(3) Screws
(1) Ball bearing
SRK-381-2 Rebuild Kit for 12V:
(2) Impeller
38-2421-02 (2) Top plate
(2) O-ring
(6) Screws
(2) Ball bearings
SRK-382 Rebuild Kit for 24V:
(1) Impeller
38-2422
(1) Top plate
(1) O-ring
(3) Screws
(1) Ball bearing
SRK-382-2 Rebuild Kit for 24V:
(2) Impeller
(2) Top plate
38-2422-02
(2) O-ring
(6) Screws
(2) Ball bearings
Instructions
12 Volt
24 Volt
12 Volt
24 Volt
(1) Ball bearing
(1) Seal
(1) Seal cover
(2) Ball bearing
(2) Seal
(2) Seal cover
(1) Seal
(1) Seal cover
(1) Brush holder with
integrated 12V switch
(2) Seal
(2) Seal cover
(2) Brush holder with
integrated 12V switch
(1) Seal
(1) Seal cover
(1) Brush holder with
integrated 24V switch
(2) Seal
(2) Seal cover
(2) Brush holder with
integrated 24V switch
