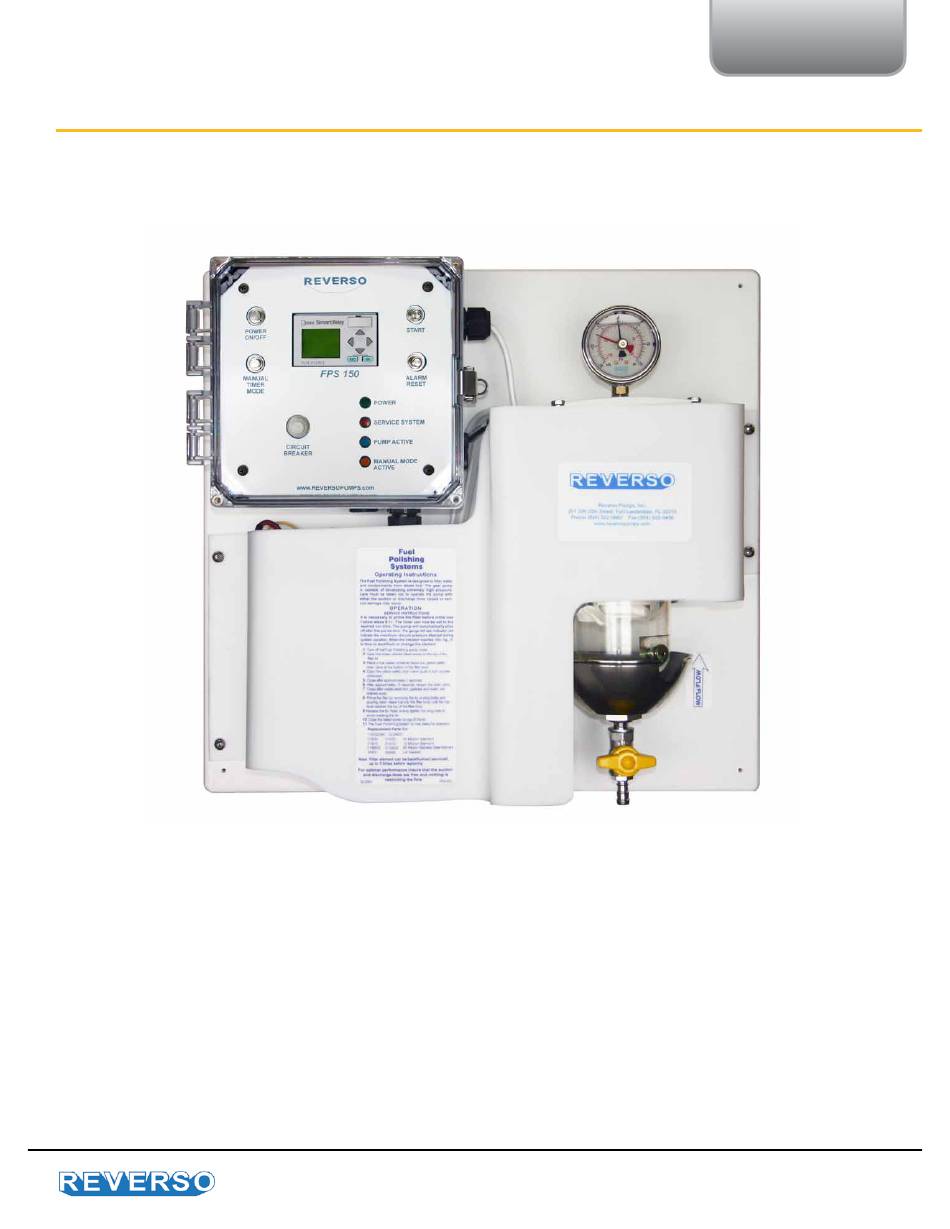

- Page 1 Manual FPS- 150 Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882...
-
Page 2: Table Of Contents
201 SW 20th Street, Fort Lauderdale, FL 33315 Ph: (954) 522-0885 | Fax: (954) 522-0456 The information herein is the property of Reverso Pumps, Inc. Without written permission, any copying, transmitting to others, and other use except for which it is loaned is prohibited. -
Page 3: System Overview
8. Digital timer 9. Power indicator light 10. Power switch 11. Service filter indicator light 12. Circuit breaker 13. Reset button Previous Version of Digital Timer and Control Panel Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 4: Control Panel Overview
12. Up key 13. Right key 14. Down key 15. OK key Digital Timer 16. Escape key 11 12 13 M - W - F - - MTWTFSS 11:00 15:00 Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 5: Technical Specifications
The system is designed to meet environmental standards for safe operation (NOT for use with fluids that have a flash point below 135°F (38°C), e. g.: Gasoline, alcohol, aviation fuels...) Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 6: Electrical And Installation
• Make sure that your unit and power supply are configured for the same voltage rating. • External control voltage must be supplied by customer. Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 7: Tank Diagrams
Single Tank Diagram Diag. 2 Tank Vent Return to Tank Moist Pick-Up Tube Diesel Fuel Lowest Point Of Tank Accumulated Sludge Water Flow In Flow Out Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 8: Initial Setup
30% of the clear bowl. running if within programmed date/time to run. Verify the pump is operating by checking vacuum gauge located on the filter. Gauge will be reading 0-5 in-Hg of vacuum. Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 9: Digital Timer Instructions: Set Date And Time
Now shown is the current time screen. Press UP current time screen. key to return to program screen. Set Clock Th 19:35 S/W Time.. 2012-01-26 Sync Stop Set Param Set.. Prg Name MTWTFSS MTWTFSS 11:00 15:00 Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 10: Digital Timer Instructions: Set Schedule Timer
Every 5 seconds, screen will request user to push Afterwards, every 5 seconds screen will indicate the Start button to activate pogram. schedule timer is active. To Activate Automatic Push the Timer Start Active Button Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 11: Digital Timer Instructions: Set Manual Timer
In the screen shown below, the system is set to run for ESC to save. Flashing underline will disappear. 20 minutes and will stop once the time has expired. Manual Manual CURR 00:00 CURR 00:00 20:00 20:00 Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 12: Digital Timer: Alarms
If you have successfully cleared the alarms, the unit should restart. HI-WATER High Water Alarm DRAIN BOWL HI-VAC High Vacuum Alarm BACK FLUSH FILTER Backflushing procedure can be executed up to 5 times before replacing the filter element. Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... - Page 13 Replace unit is operating. AUTO mode battery cover and then will begin the programs you control box cover. have previously set. OFF will turn off the device. Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882...
-
Page 14: Backflushing Instructions
If necessary, repeat step 4 and 5. Prime the filter and close Open fuel supply valve. the bleed screw (refer to Technical Specifications for torque values). Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 15: Filter Element Replacement
(refer to and check for leaks. Technical Specifications for torque values). Replacement Filter Element Element # Description 01010 10 Micron 01030 30 Micron (Standard) 01060S 60 Micron (Stainless Steel) Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882... -
Page 16: Troubleshooting
Check service switch is in the ON position ( - ) Pump leaks fuel • Loose pump plumbing fittings • Worn pump shaft seal • Excessive heat from over head storage tank • Worn pump 0-rings or seals Version 9/4/14 Reverso Pumps, Inc. www.reversopumps.com | contact@reversopumps.com | Ph: (954) 522-0882...
