Summary of Contents for AOC U27V5C

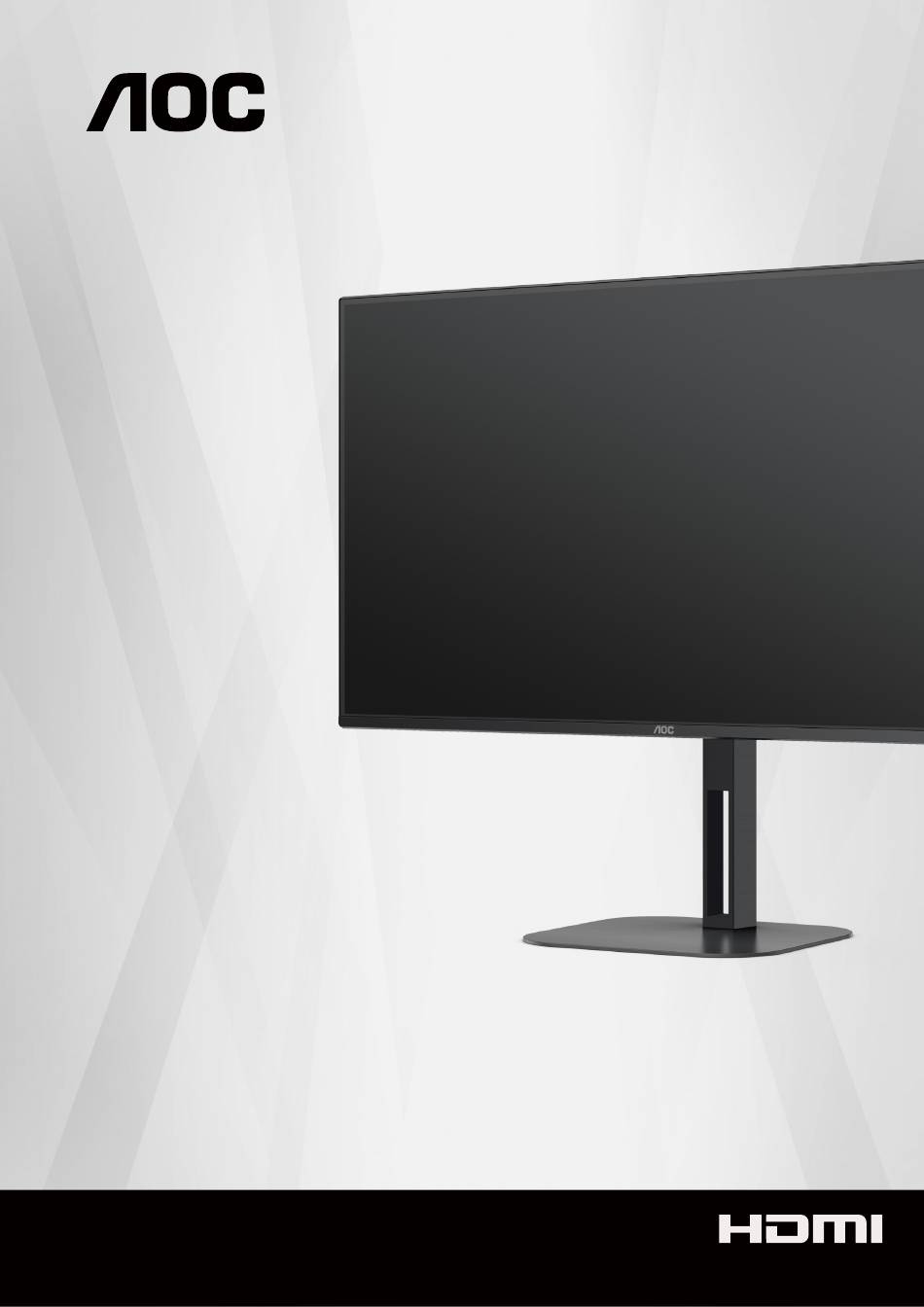

- Page 1 LCD Monitor User Manual U27V5C www.aoc.com 2021 AOC.All Rights Reserved ©...
-
Page 2: Table Of Contents
Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Adjusting Viewing Angle ............................8 Connecting the Monitor ............................. 9 Adjusting ..................................... -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
CD Manual Warranty Card Stand Base Screwdriver USB C-C Cable HDMI Cable Power Cable Adaptor DP Cable Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... -
Page 10: Adjusting Viewing Angle
Adjusting Viewing Angle For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: NOTE: Do not touch the LCD screen when you change the angle. -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: 1. Power 2. HDMI-1 3. HDMI-2 4. DP 5. USB C 6. Earphone 7. USB3.2 Gen1 8. USB3.2 Gen1+charging Connect to PC 1. Connect the power cord to the back of the display firmly. 2. -
Page 12: Adjusting
Adjusting Hotkeys Source/Exit/Up Eco/DCR/Down Clear Vision/Left Volume/Right Power/ Menu/Enter Menu/Enter When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 second to turn off the monitor. Power Press the Power button to turn on the monitor. Volume/Right When there is no OSD, Press Volume button to active volume adjustment bar, Press Left or Right to adjust volume. - Page 13 Clear Vision 1. When there is no OSD, Press the “Left” button to activate Clear Vision. 2. Use the “Left” or “Right” buttons to select between weak, medium, strong, or off settings. Default setting is always “off”. 3. Press and hold “Left” button for 5 seconds to activate the Clear Vision Demo, and a message of “Clear Vision Demo: on”...
-
Page 14: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Luminance Color Setup Picture Boost OSD Setup PIP Setting Game Setting Extra Exit Contrast Gamma Gamma 1 Brightness HDR Mode Eco mode Standard 1). Press the MENU-button to activate the OSD window. 2). -
Page 15: Luminance
Luminance Luminance Color Setup Picture Boost OSD Setup PIP Setting Game Setting Extra Exit Contrast Gamma Gamma 1 Brightness Eco mode Standard HDR Mode Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment Standard Standard Mode Text Text Mode Internet Internet Mode Game Game Mode... -
Page 16: Color Setup
Color Setup Color Setup Picture Boost OSD Setup Game Setting Extra Exit Luminance PIP Setting Color Temp. Warm LowBlue Mode DCB Mode Green DCB Demo Blue Warm Recall Warm Color Temperature from EEPROM. Normal Recall Normal Color Temperature from EEPROM. Cool Recall Cool Color Temperature from EEPROM. -
Page 17: Picture Boost
Picture Boost Picture Boost OSD Setup PIP Setting Extra Exit Luminance Game Setting Color Setup Bright Frame Brightness H. Position Frame Size Contrast V. Position Bright Frame On or Off Disable or Enable Bright Frame Frame Size 14-100 Adjust Frame Size Brightness 0-100 Adjust Frame Brightness... -
Page 18: Osd Setup
OSD Setup PIP Setting Extra Exit Luminance OSD Setup Game Setting Color Setup Picture Boost Language English H. Position Transparence V. Position Timeout Break Reminder DP Capability Language Select the OSD language Timeout 5-120 Adjust the OSD Timeout Please be noted that only DP1.2 support Adaptive-Sync DP Capability 1.1/1.2 function... -
Page 19: Pip Setting
PIP Setting Game Setting PIP Setting Extra Exit Luminance Picture Boost OSD Setup Color Setup PIP Setting Size Small Swap Main Source Position HDMI1 Right-up Sub Source Audio PIP Setting Off / PIP / PBP Disable or Enable PIP or PBP. Main Source* Select main screen source. -
Page 20: Game Setting
Game Setting Extra Exit Luminance Picture Boost OSD Setup PIP Setting Game Setting Color Setup Game Mode Frame Counter Game Color Shadow Control Overdrive Dial Point Low Input Lag Adaptive-Sync For playing FPS (first Person Shooters) games. Improves dark theme black level details. For playing RTS (Real Time Strategy). -
Page 21: Extra
Extra Exit Picture Boost OSD Setup Game Setting Extra Luminance Color Setup PIP Setting Input Select Auto Resolution : 1920(H)X1080(V) DDC/CI H. Frequency : 67KHz Off Timer Reset Image Ratio Wide V. Frequency : 60Hz Input Select Auto/ HDMI1/ HDMI2/ DP/ USB C* Select Input Signal Source Off timer 00-24 (hrs) -
Page 22: Exit
Exit Luminance Picture Boost OSD Setup Color Setup PIP Setting Game Setting Extra Exit Exit Exit the main OSD... -
Page 23: Led Indicator
LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange... -
Page 24: Troubleshoot
Press to auto-adjust. Please refer to Regulation & Service Information which is in the CD manual Regulation & Service or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page. -
Page 25: Specification
Specification General Specification Model name U27V5C Driving system TFT Color LCD Panel Viewable Image Size 68.5 cm diagonal Pixel pitch 0.1554mm(H) x 0.1554mm(V) Horizontal scan range 30k-140kHz Horizontal scan Size(Maximum) 596.736mm Vertical scan range 23-75Hz Vertical Scan Size(Maximum) 335.664mm Max resolution... -
Page 26: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(kHz) FREQUENCY(Hz) 640x480@60Hz 31.469 59.94 640x480@72Hz 37.861 72.809 640x480@75Hz 37.5 800x600@56Hz 35.156 56.25 800x600@60Hz 37.879 60.317 SVGA 800x600@72Hz 48.077 72.188 800x600@75Hz 46.875 1024x768@60Hz 48.363 60.004 1024x768@70Hz 56.476 70.069 1024x768@75Hz 60.023 75.029 1280x1024@60Hz 63.981 60.02 SXGA 1280x1024@75Hz... -
Page 27: Pin Assignments
Pin Assignments 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock-... -
Page 28: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
