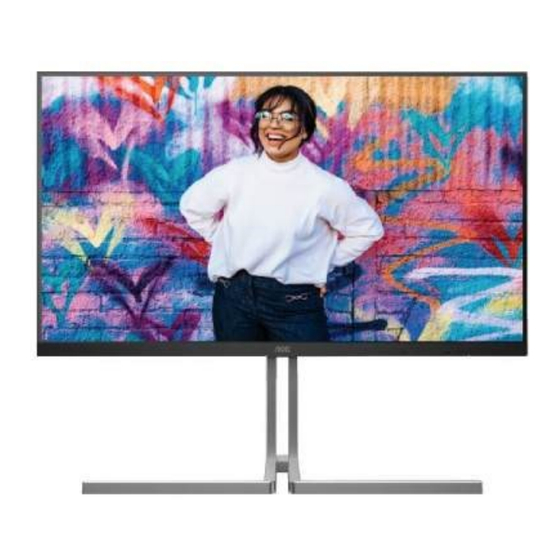

U27U3CV
LCD Monitor
U27U3CV
WARNING
This disassembly information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
repair the product or products dealt with in this disassembly information by anyone else could result in serious injury or death.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AOC U27U3CV
Summary of Contents for AOC U27U3CV
- Page 1 U27U3CV LCD Monitor U27U3CV WARNING This disassembly information is designed for experienced repair technicians only and is not designed for use by the general public. It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
- Page 2 Content Index General Safety Instructions ............................1 1. General Guidelines ..............................1 2. Important Notice ..............................1 3. How to Read this Instruction ..........................3 Exploded view diagram with list of items ........................5 Disassembly SOP ..............................6...
- Page 3 U27U3CV General Safety Instructions 1. General Guidelines When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.
- Page 4 U27U3CV 2-6 Safety Check after Repairment Confirm that the screws, parts and wiring which were removed in order to service are put in the original positions, or whether there are the positions which are deteriorated around the serviced places serviced or not.
- Page 5 U27U3CV 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
- Page 6 U27U3CV Warning: A “warning” is used when there is danger of personal injury. Reference: A “reference” guides the reader to other places in this binder or in this manual, where he/ she will find additional information on a specific topic.
- Page 7 U27U3CV Exploded view diagram with list of items...
- Page 8 U27U3CV Disassembly SOP 1. Suggest Tools Here are some tools that can be used for the LCD monitor’s service and repair. Philips-head Screwdriver Use a Philips-head screwdriver to fasten/remove the K- or B-typed screws P/N：N/A Gloves To protect LCD Panel and your hand...
- Page 9 U27U3CV 2. Disassembly Procedures Step Figure Description Place the monitor face down to the soft surface. Remove the Remove stand / screws base from monitor press release button to take out stand. Release screws. Use tool to open all Remove the latches.
- Page 10 U27U3CV Tear out tapes/mylar Disconnect cables. Remove speakers Remove main Release screws. frame from Lift up the main monitor frame and disconnect the cable...
- Page 11 U27U3CV...
- Page 12 U27U3CV Remove Disconnect cable key board Release screws...
- Page 13 U27U3CV Remove middle Release screws frame Take out mylar Remove boards Release screws. from main frame Keep mylar inside the main frame...
- Page 14 U27U3CV...
