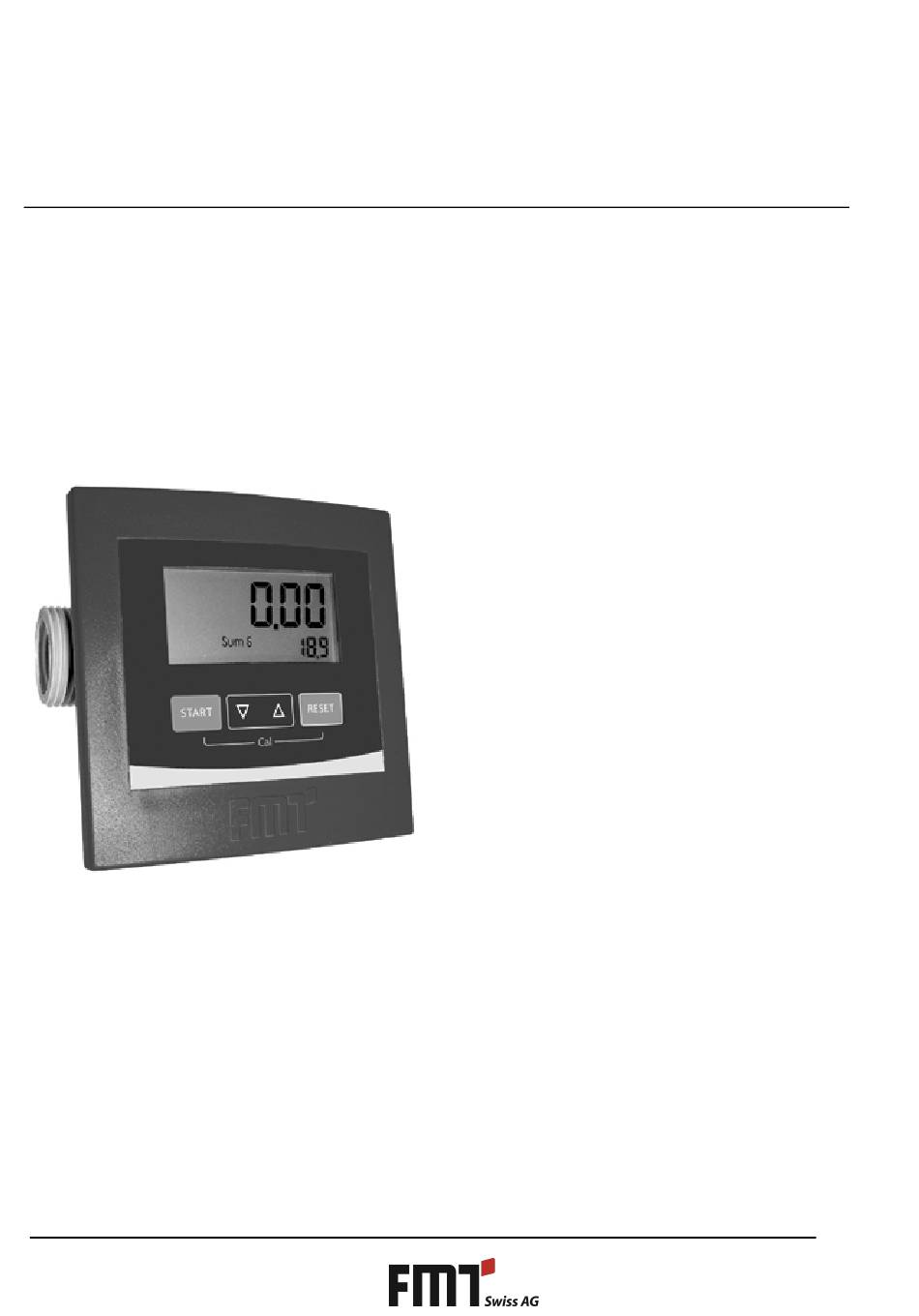

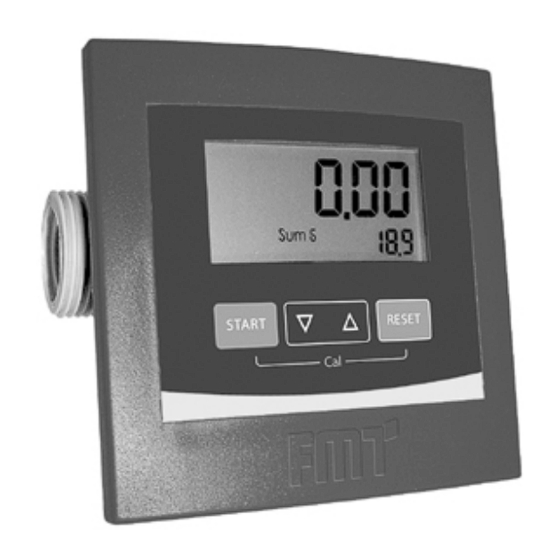

- Page 1 In-Line Meter digital for various media Operating Instructions Contents: General information Intended use Construction and description of function Technical data General safety information Information concerning work safety Explanation of the safety information used Risks when using the in-line meter Assembly 3.1 to 3.4 Operation Switching on the Meter...
- Page 2 General information Intended use The digital in-line meter is only suitable for operation with low viscosity, hardly ˜ ammable liquids. The function of the electronics is guaranteed in a temperature range from -10 °C to +40 °C. The in-line meter is pre-calibrated for use with fuel oil and diesel or AdBlue.
- Page 3 General safety information Information concerning work safety The digital in-line meter is designed and manufactured according to the appropriate safety and health requirements of the relevant EC guidelines. Nevertheless, any use contrary to the intended purpose can lead to serious risks.
- Page 4 Operating Instructions Risks when using the in-line meter Warning! The digital in-line meter is designed for use with low viscosity, hardly flammable, self- lubricating media only. The in-line meter may be used in explosion safe areas only. Information ...
- Page 5 In-line meter, digital Operating Instructions Press flat packing (3) into delivery hose fitting (4) and connect the male connecting thread (5) of the meter to the delivery hose. After assembly, check the system for tight connections and possible leaks. Fig. 1 Fig.
- Page 6 In-line meter, digital Operating Instructions Advice about Measurement Accuracy The built in meter recognises, according to the operating conditions, the amount of fluid flowing through it, and is factory precalibrated for use with heating oil and diesel fuel. The maximum accuracy will be achieved when dispensing at a constant delivery rate.
- Page 7 Insert a new 3.6 V lithium battery (type SL 360S) and lock the housing. Repair/Service The in-line meter has been constructed and manufactured meeting highest quality standards. If a problem occurs despite all quality precautions, please contact our sales department: FMT Swiss AG Tel +49 9462 17-246 Fax +49 9462 1063 service@fmtag.ch...
- Page 8 EC guideline Electromagnetic Compatibility (89/336/EEC) in the version of 93/31/EEC National standards applied DIN VDE 0843 T1 31.12.2007 FMT Swiss AG ___________________________ Dipl.-Ing. Rudolf Schlenker FMT Swiss AG Fluid Management Technologies Swiss AG • Gewerbestr. 6 • CH-6330 Cham/Schweiz Tel. +41 41 712 05 37 • Fax +41 41 720 26 21 • info@fmtag.ch • www.fmtag.ch...
