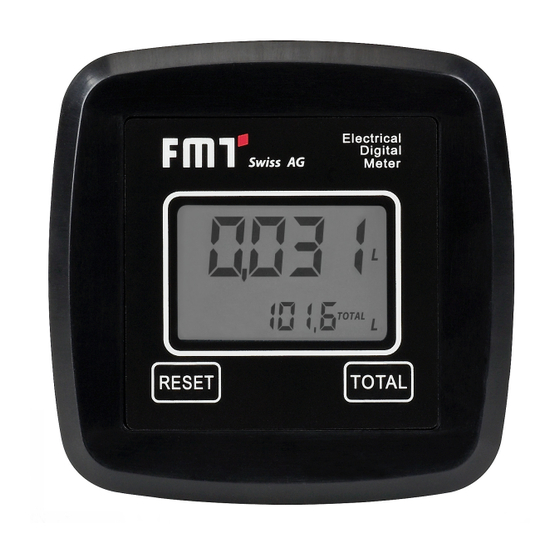

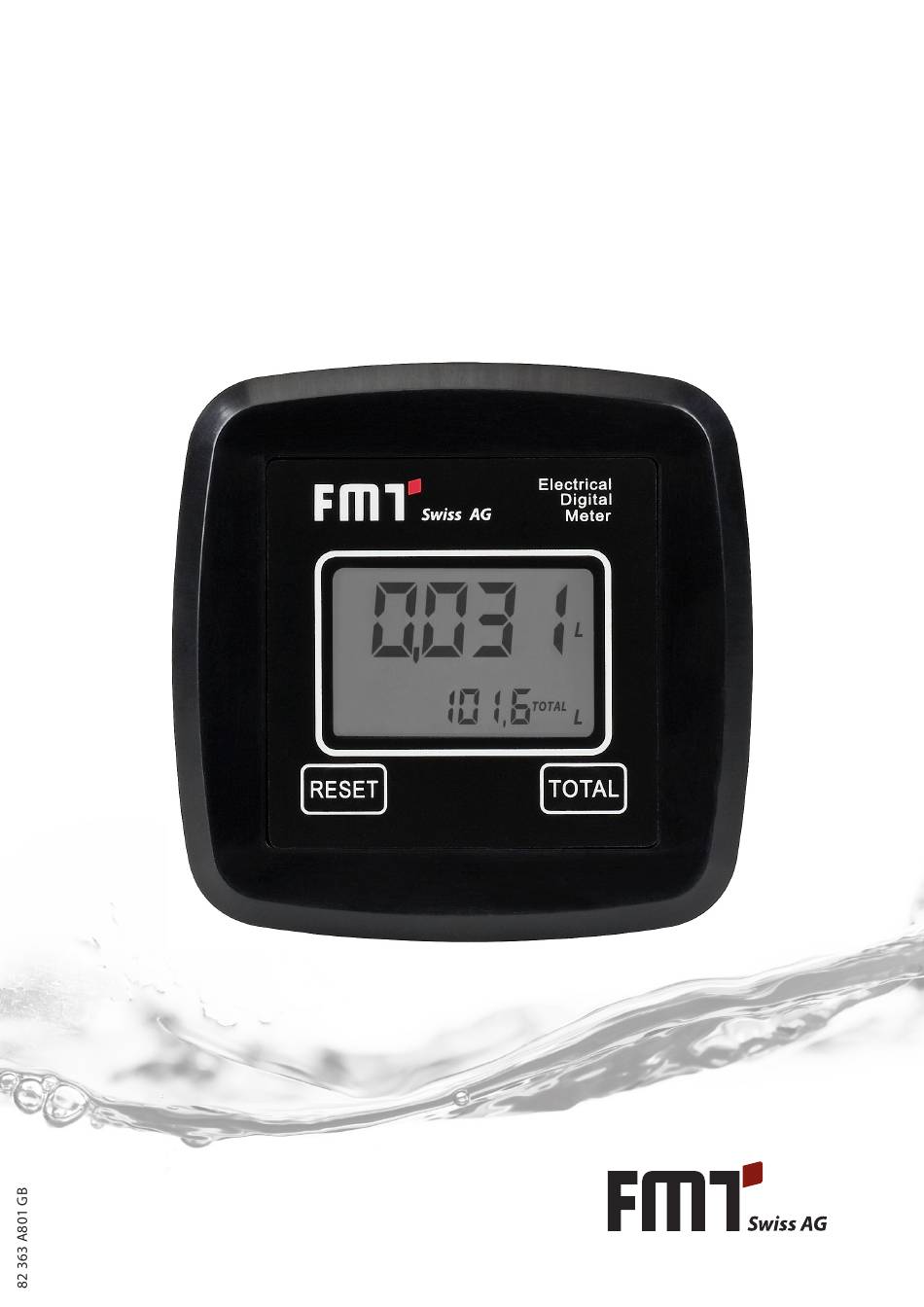

- Page 1 NUMERIxx Digital oval gear meter 2 - 100 l/min...
-
Page 2: Table Of Contents
G Operating instructions digital oval gear meter Contents General details ______________________________________________________________________3 Intended use ________________________________________________________________________3 Design and functional description ______________________________________________________3 1.2.1 Display LCD _________________________________________________________________________4 1.2.2 User controls ________________________________________________________________________4 1.2.3 Measuring chamber __________________________________________________________________5 1.2.4 Battery compartment _________________________________________________________________5 Technical data _______________________________________________________________________5 General safety instructions ____________________________________________________________6 Information on safety at work __________________________________________________________6... -
Page 3: General Details
Operating instructions digital oval gear meter G General details Intended use This oval gear meter has been designed and built for measuring volumes of various media featuring different viscosities, and for the storage of data so collected. The oval gear meter is intended for installation at the end of an output hose, e.g. a hose reeler. Design and functional description The oval gear meter is a fluid meter with electronic counter &... -
Page 4: Display Lcd
G Operating instructions digital oval gear meter 1.2.1 Display LCD The meter‘s LCD display is equipped with two numeric registers and different types of display modes showing information to the user only when it is actually needed with the operation / function going on at the moment. -
Page 5: Measuring Chamber
Operating instructions digital oval gear meter G 1.2.3 Measuring chamber The measuring chamber is located in the centre of the meter. In the measurement chamber there is an oval gear mechanism which rotates and results in electric pulses being produced. These are then processed by the microprocessor on the electronic circuit board. -
Page 6: General Safety Instructions
G Operating instructions digital oval gear meter General safety instructions Information on safety at work The oval gear meter has been designed and built in compliance with the applicable safety and health requirements of the relevant EU directives. However, hazards may result from this product if it is not used for its intended purpose or with the necessary care. -
Page 7: Installation
Operating instructions digital oval gear meter G Installation The inlet and outlet of the meter are aligned in a straight axis and equipped with 1“ threads. The meter may be installed in any given position, as a fixed unit in a pipeline and/or as a mobile unit on a spigot. The meter does not have a pre-defined flow direction. -
Page 8: Output Of Liquid During Standard Operation (Normal Mode)
G Operating instructions digital oval gear meter Output of liquid during standard operation (Normal Mode) During standard output of liquid, the meter will count and at the same time display the volume having gone through the device so far, and the resettable total (RESET TOTAL). Accidental pressing of the RESET and/or CAL buttons does not have any effect in this state. -
Page 9: Resetting The Resettable Total Volume (Reset Total)
Operating instructions digital oval gear meter G 5.1.2 Resetting the resettable total volume (RESET TOTAL) You can reset the resettable total only if you have reset the register of the partial volumes before. To reset the resettable total: press RESET for several seconds. The display will show the words RESET TOTAL (see fig.): You must carry out the following steps (in this order): 1. -
Page 10: Resetting Partial Volumes
G Operating instructions digital oval gear meter Accidental pressing of the RESET and/or TOTAL buttons does not have any effect in this state. Reset Total and absolute total (TOTAL) are not shown in this mode. However, the values nevertheless go up, of course. You can check after you‘re finished. Wait for the default standby mode and press TOTAL shortly. -
Page 11: Calibration Mode
Operating instructions digital oval gear meter G Calibration mode The meter has a fast and precise electronic calibration mode where you simply change the so-called calibration factor (K FACTOR). There are two calibration procedures you may choose from: Simulated operation + calibration (requiring actual output of liquid to be carried out). ■... - Page 12 G Operating instructions digital oval gear meter The flow chart below shows display variations for different modes that the LCD display may go through. In this mode, the user may press RESET and thus change to the FACTORY K FACTOR. In order to confirm your choice: Shortly press TOTAL while the display shows either „USER“...
-
Page 13: Calibration During Operation
Operating instructions digital oval gear meter G 6.3.2 Calibration during operation This procedure basically involves discharging of liquid into a calibration vessel under actual operating conditions (flow, rate, viscosity etc.). The procedure must be carried out with utmost care. Note carefully the following points in order to guarantee proper calibration: Have your equipment properly vented before calibration. - Page 14 G Operating instructions digital oval gear meter DISCHARGE LIQUID INTO CAL VESSEL Start discharge operation, but do not press any buttons yet. Discharge may be interrupted and continued as necessary. Continue filling the vessel until full mark is reached. It is not necessary to top out at any specific value.
- Page 15 Operating instructions digital oval gear meter G PRESS TOTAL SHORTLY / SEVERAL SECS Value indicated will change as indicated by arrow: One increment per each pressing of TOTAL. ■ ■ Continuously if TOTAL is pressed continuously (first 5 ■ ■ increments slowly, then fast).
-
Page 16: Changing The K Factor Directly
G Operating instructions digital oval gear meter 6.3.4 Changing the K FACTOR directly This procedure is helpful for the correction of a ‚mean error‘ that may be determined by monitoring a certain number of output operations. In the event you observe a mean percentage error during normal meter operation you may carry out a correction by changing the valid User K Factor by that percentage. -
Page 17: Configuration Of The Oval Gear Meter
Operating instructions digital oval gear meter G PRESS TOTAL SHORTLY / SEVERAL SECS Value indicated will change as indicated by arrow: One increment per each (short) pressing of TOTAL. ■ ■ continuously if TOTAL is pressed continuously. Display ■ ■ will ‚roll‘... -
Page 18: Service
G Operating instructions digital oval gear meter Every time you (shortly) press RESET, one of the other combinations of units will be displayed one after the other (see figs.): Long pressing of the TOTAL button will result in the new settings being stored and, after completion of the start cycle, the meter will show delivery in the new measurement units. -
Page 19: Cleaning
Operating instructions digital oval gear meter G Do not throw batteries in the dustbin. Be sure to know and respect local regulations concerning proper disposal. Proceed as follows: Press RESET in order to update total volume. ■ ■ Remove the housing lid (82 353). ■... -
Page 20: Troubleshooting
This oval gear meter has been designed and built in compliance with the highest quality standards. If a problem should occur despite all quality measures taken, please get in touch with our service contact partners: FMT Swiss AG Tel +49 9462 17-216 Fax +49 9462 1063 service@fmtag.ch... -
Page 21: Exploded Drawing
Operating instructions digital oval gear meter G 12. Exploded drawing Prod. no. Designation 82 353 Housing lid 82 360 NUMERIxx-Digital V1.1 00 006 Screw 2,9 x 6,5 82 356 Battery-holder unit 88 431 Battery 88 250 Countersunk screw M 5 x 20 00 358 Cylindrical pin 82 354... - Page 22 G Operating instructions digital oval gear meter Figure 12-1 Exploded diagram of Oval Gear Meter...
- Page 23 Operating instructions digital oval gear meter G...
- Page 24 FMT Swiss AG Fluid Management Technologies Swiss AG Gewerbestraße 6 6330 Cham / Schweiz Tel. +41 41 712 05 37 Fax +41 41 720 26 21 info@fmtag.com www.fmtag.com...
