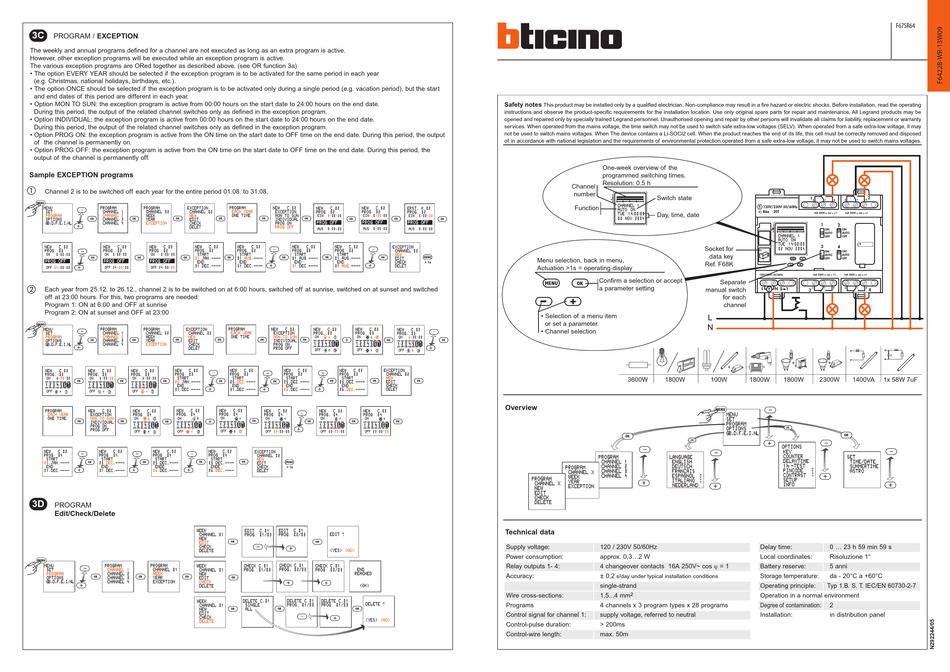

3C
PROGRAM / EXCEPTION
The weekly and annual programs defined for a channel are not executed as long as an extra program is active.
However, other exception programs will be executed while an exception program is active.
The various exception programs are ORed together as described above. (see OR function 3a)
• The option EVERY YEAR should be selected if the exception program is to be activated for the same period in each year
(e.g. Christmas, national holidays, birthdays, etc.).
• The option ONCE should be selected if the exception program is to be activated only during a single period (e.g. vacation period), but the start
and end dates of this period are different in each year.
• Option MON TO SUN: the exception program is active from 00:00 hours on the start date to 24:00 hours on the end date.
During this period, the output of the related channel switches only as defined in the exception program.
• Option INDIVIDUAL: the exception program is active from 00:00 hours on the start date to 24:00 hours on the end date.
During this period, the output of the related channel switches only as defined in the exception program.
• Option PROG ON: the exception program is active from the ON time on the start date to OFF time on the end date. During this period, the output
of the channel is permanently on.
• Option PROG OFF: the exception program is active from the ON time on the start date to OFF time on the end date. During this period, the
output of the channel is permanently off.
Sample EXCEPTION programs

Channel 2 is to be switched off each year for the entire period 01.08. to 31.08.

Each year from 25.12. to 26.12., channel 2 is to be switched on at 6:00 hours, switched off at sunrise, switched on at sunset and switched
off at 23:00 hours. For this, two programs are needed:
Program 1: ON at 6:00 and OFF at sunrise
Program 2: ON at sunset and OFF at 23:00
3D
PROGRAM
Edit/Check/Delete
Safety notes
This product may be installed only by a qualified electrician. Non-compliance may result in a fire hazard or electric shocks. Before installation, read the operating
instructions and observe the product-specific requirements for the installation location. Use only original spare parts for repair and maintenance. All Legrand products may be
opened and repaired only by specially trained Legrand personnel. Unauthorised opening and repair by other persons will invalidate all claims for liability, replacement or warranty
services. When operated from the mains voltage, the time switch may not be used to switch safe extra-low voltages (SELV). When operated from a safe extra-low voltage, it may
not be used to switch mains voltages. When The device contains a Li-SOCl2 cell. When the product reaches the end of its life, this cell must be correctly removed and disposed
of in accordance with national legislation and the requirements of environmental protection.operated from a safe extra-low voltage, it may not be used to switch mains voltages.

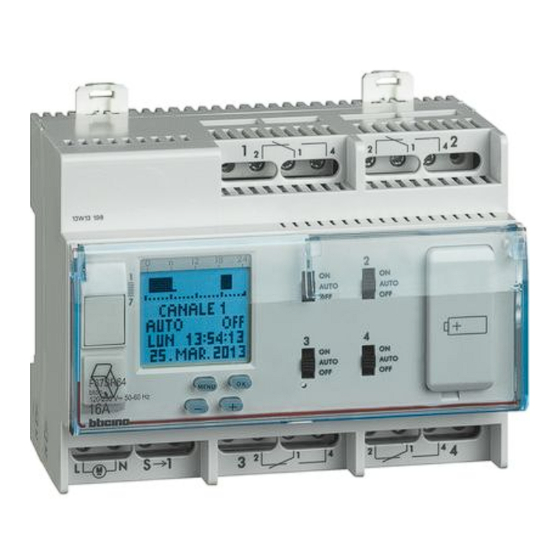

One-week overview of the
programmed switching times.
Resolution: 0.5 h
Channel
number
Switch state
Function
Day, time, date
Menu selection, back in menu,
Actuation >1s = operating display
Confirm a selection or accept
a parameter setting
• Selection of a menu item
or set a parameter.
• Channel selection
3600W 1800W
Overview
Technical data
Supply voltage: 120 / 230V 50/60Hz
Power consumption: approx. 0,3...2 W
Relay outputs 1- 4: 4 changeover contacts 16A 250V~ cos ϕ = 1
Accuracy: ± 0,2 s/day under typical installation conditions
single-strand
Wire cross-sections: 1,5...4 mm 2
Programs 4 channels x 3 program types x 28 programs
Control signal for channel 1: supply voltage, referred to neutral
Control-pulse duration: > 200ms
Control-wire length: max. 50m
Socket for
data key
Ref. F68K
Separate
manual switch
for each
channel
+ +
+
100W 1800W 1800W 2300W 1400VA 1x 58W 7uF
Delay time: 0 ... 23 h 59 min 59 s
Local coordinates: Risoluzione 1°
Battery reserve: 5 anni
Storage temperature: da - 20°C a +60°C
Operating principle: Typ 1.B. S. T. IEC/EN 60730-2-7
Operation in a normal environment
Degree of contamination: 2
Installation: in distribution panel
F67SR64
