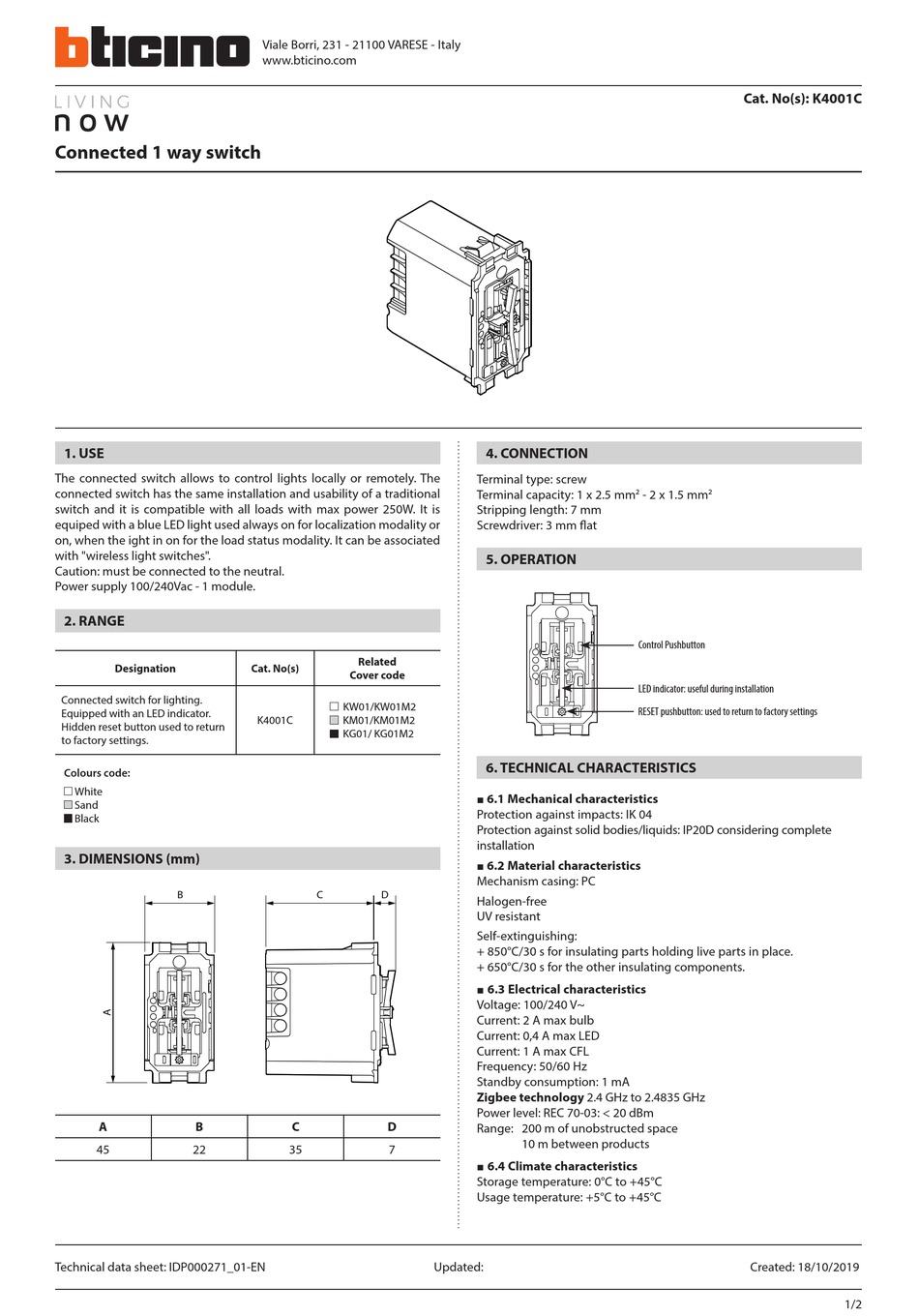

Bticino LIVING NOW K4001C Instruction Manual

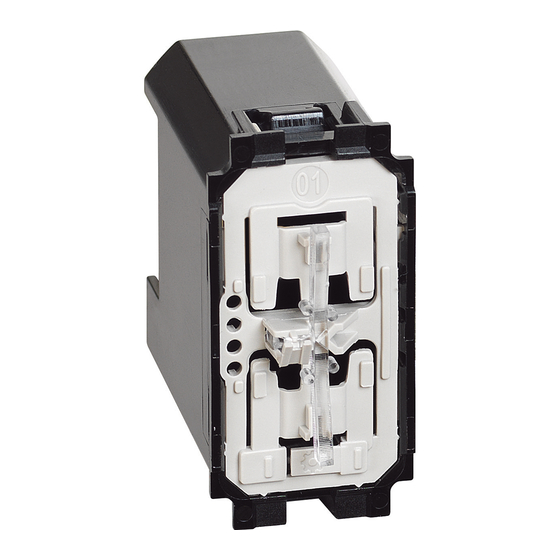

Connected 1 way switch
1. USE
The connected switch allows to control lights locally or remotely. The
connected switch has the same installation and usability of a traditional
switch and it is compatible with all loads with max power 250W. It is
equiped with a blue LED light used always on for localization modality or
on, when the ight in on for the load status modality. It can be associated
with "wireless light switches".
Caution: must be connected to the neutral.
Power supply 100/240Vac - 1 module.
2. RANGE
Designation
Connected switch for lighting.
Equipped with an LED indicator.
Hidden reset button used to return
to factory settings.
Colours code:
White
Sand
Black
3. DIMENSIONS (mm)
B
A B
45 22
Technical data sheet: IDP000271_01-EN
Viale Borri, 231 - 21100 VARESE - Italy
www.bticino.com
Related
Cat. No(s)
Cover code
KW01/KW01M2
K4001C KM01/KM01M2
KG01/ KG01M2
C D
C D
35 7
4. CONNECTION
Terminal type: screw
Terminal capacity: 1 x 2.5 mm
Stripping length: 7 mm
Screwdriver: 3 mm flat
5. OPERATION
6. TECHNICAL CHARACTERISTICS
 6.1 Mechanical characteristics
Protection against impacts: IK 04
Protection against solid bodies/liquids: IP20D considering complete
installation
 6.2 Material characteristics
Mechanism casing: PC
Halogen-free
UV resistant
Self-extinguishing:
+ 850°C/30 s for insulating parts holding live parts in place.
+ 650°C/30 s for the other insulating components.
 6.3 Electrical characteristics
Voltage: 100/240 V~
Current: 2 A max bulb
Current: 0,4 A max LED
Current: 1 A max CFL
Frequency: 50/60 Hz
Standby consumption: 1 mA
Zigbee technology 2.4 GHz to 2.4835 GHz
Power level: REC 70-03: < 20 dBm
Range: 200 m of unobstructed space
10 m between products
 6.4 Climate characteristics
Storage temperature: 0°C to +45°C
Usage temperature: +5°C to +45°C
Updated:
Cat. No(s): K4001C
- 2 x 1.5 mm
2 2
Control Pushbutton
LED indicator: useful during installation
RESET pushbutton: used to return to factory settings
Created: 18/10/2019
1/2
