INSTALLATION AND MAINTENANCE INSTRUCTIONS FOR
INTELLIGENT PLUG-IN MODELS FDX-551R AND FDX-551RA
TEMPERATURE SENSORS WITH FIXED TEMPERATURE ALARM
Before installing sensors, please thoroughly read the system wiring and installation manual, which provides detailed in-
formation on sensor spacing, placement, zoning, and special applications. Copies of these manuals are available from
®
Notifier
. NFPA standard 72 should also be referenced. For installation in Canada, use Model FDX-551RA and refer to
CAN/ULC-S524 and CEC Part 1, Sec. 32.

GENERAL DESCRIPTION

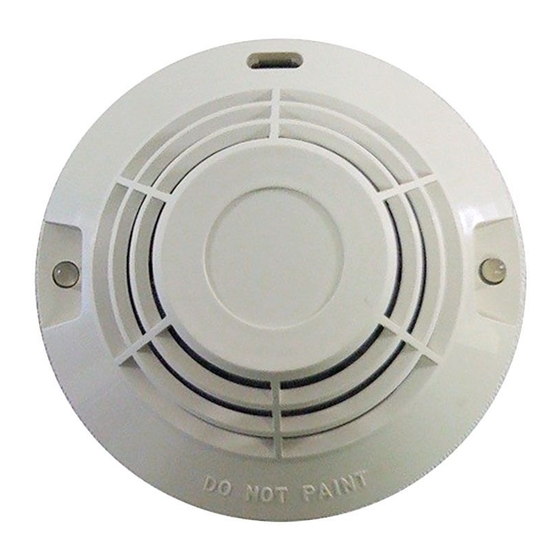

Models FDX-551R and FDX-551RA are intelligent sensors that use a state-of-the-art dual-thermistor sensing circuit for
fast response. These sensors are designed to provide open area protection with 50 foot spacing capability and are in-
tended for use with compatible control panels only.
Two LEDs on each sensor light to provide 360° visibility of the sensor indication. The LEDs can be latched on by code
command from the panel for an alarm indication. The LEDs can also be unlatched to the normal condition by code com-
mand. Remote LED annunciator capability is available as an optional accessory (Part No. RA400Z).

SPECIFICATIONS

Diameter:
Height:
Weight:
Installation Temperatures:
Operating Humidity Range:
Mounting:
Voltage Range:
Standby Current:
LED Current:
Fixed Temperature Rating
Rate-of-Rise Detection

WIRING GUIDE

Refer to the installation instructions for the plug-in base being used. Bases are equipped with screw terminals for power,
ground, and remote annunciator connections. See Figure 1. Bases BX-501 (shown in Figure 1) and B501 are electrically
identical.
Some versions of Notifier
FDX-551RA is achieved only on the MEDIUM sensitivity setting. Settings of HIGH or LOW may cause an alarm earlier or
later than desired.
N500-07-00
RATE-OF-RISE
6.1 inches (155 mm) installed in BX-501B
4.1 inches (104 mm) installed in B501
1.6 inches (41 mm)
5 ounces (150 gm)
32° to 100°F (0° to 38°C)
10% to 93% Relative Humidity Noncondensing
BX-501 flanged base
B501 flangeless base
B501 with RMK400 recessed mounting kit
15 to 28 Volts DC Peak
150 µA @ 24 VDC
7 mA @ 24 VDC
135°F (57°F)
Greater than 15°F per minute
®
control panels have an adjustable sensitivity feature. Correct operation of the FDX-551R and
WARNING
1
Notifier, 12 Clintonville Rd., Northford, CT 06472
I56-611-01
